art.-7112-aston-mr-cr-tr-ar-rr

ASTON/RR

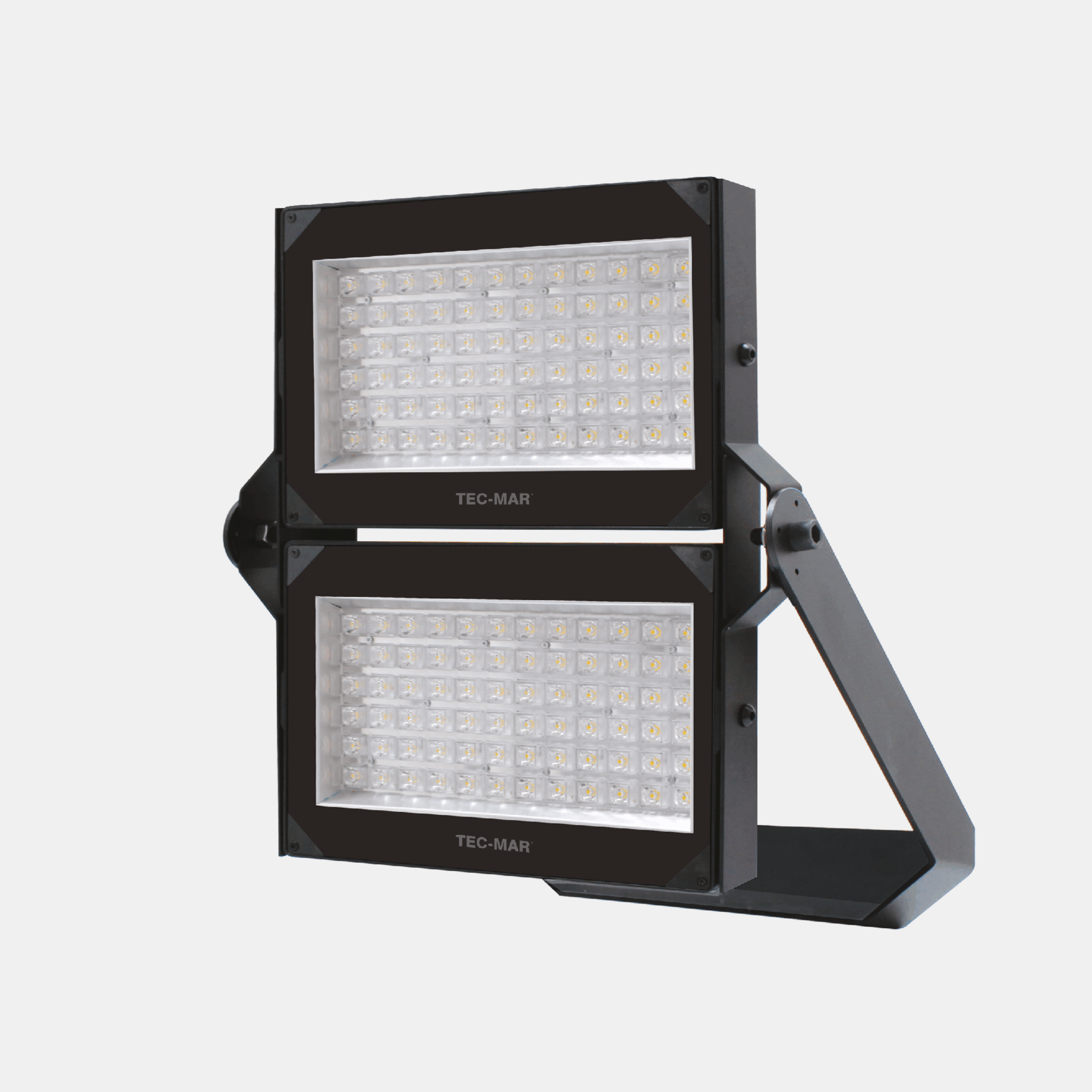

Indoor and outdoor led floodlight, suitable for large areas and sports areas. Die cast aluminium body, coated with polyester anticorrosion powder, matt black, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, ASTON - 7112, Floodlights, ASTON
Models: 30
Color: Matt black
Catalogue abstract
Installation instructions

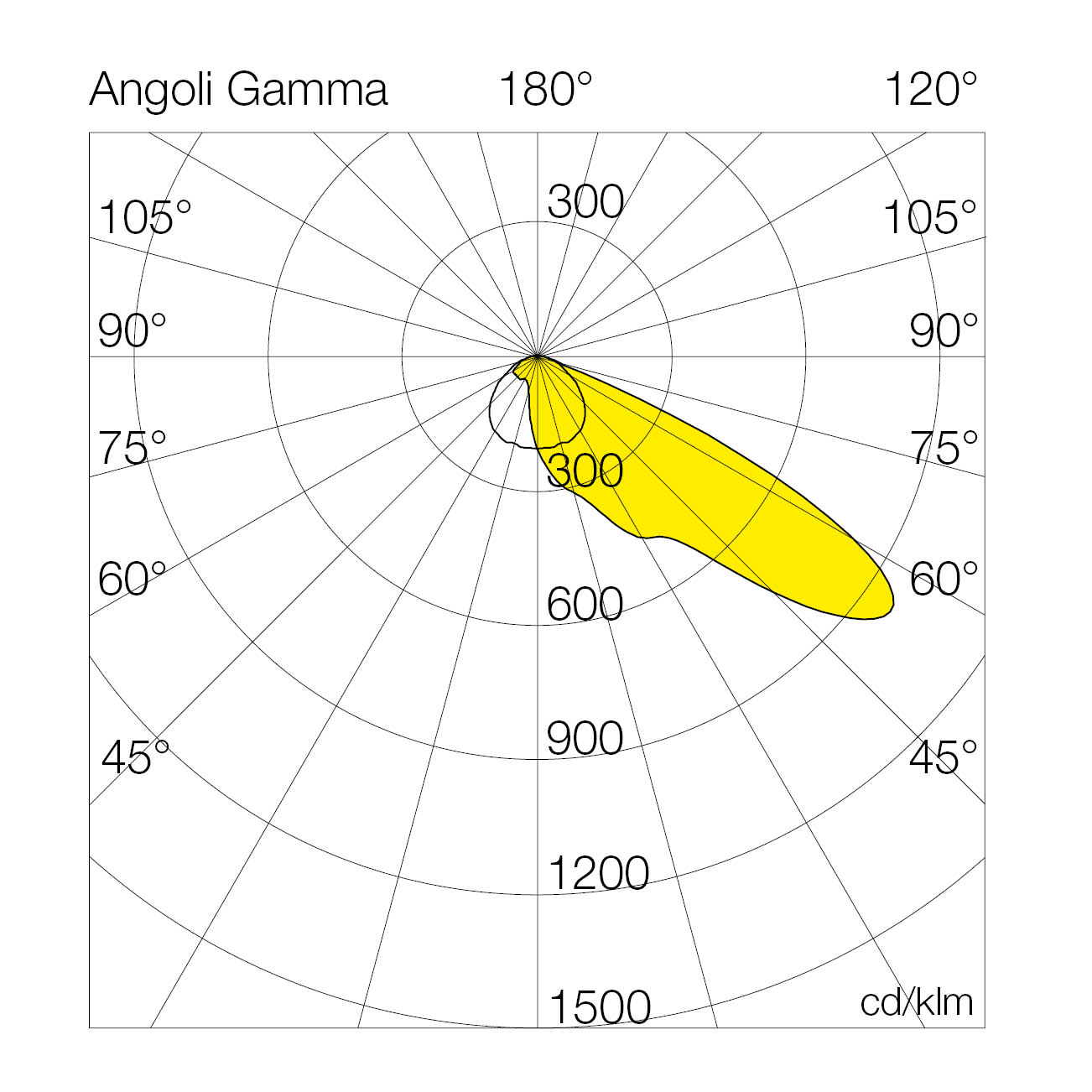

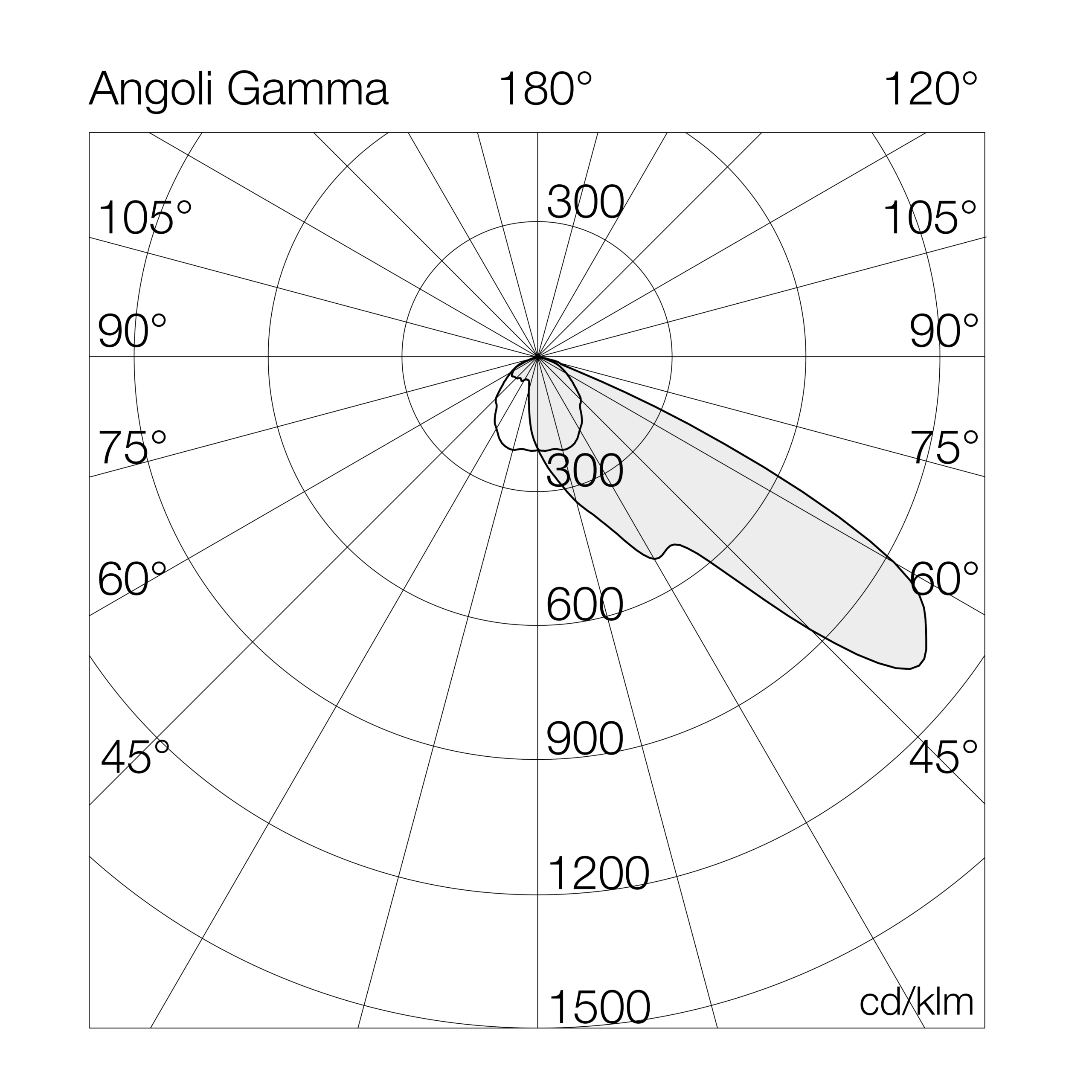

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7112RR4= 4000°K (CRI >70)400EL= on/off
7= 5700°K (CRI >70)450LD= dali
R= 5700°K (CRI >90)500
550
600

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7112RR4400EL400-4000°K - CRI>70on/off58988150445330540-19.5
7112RR4450EL450-4000°K - CRI>70on/off64278145445330540-19.5
7112RR4500EL500-4000°K - CRI>70on/off69379141445330540-19.5
7112RR4550EL550-4000°K - CRI>70on/off74289138445330540-19.5
7112RR4600EL600-4000°K - CRI>70on/off79459135445330540-19.5
7112RR4400LD400-4000°K - CRI>70dali58988150445330540-19.5
7112RR4450LD450-4000°K - CRI>70dali64278145445330540-19.5
7112RR4500LD500-4000°K - CRI>70dali69379141445330540-19.5
7112RR4550LD550-4000°K - CRI>70dali74289138445330540-19.5
7112RR4600LD600-4000°K - CRI>70dali79459135445330540-19.5
7112RR7400EL400-5700°K - CRI>70on/off58988147445330540-19.5
7112RR7450EL450-5700°K - CRI>70on/off64278143445330540-19.5
7112RR7500EL500-5700°K - CRI>70on/off69379139445330540-19.5
7112RR7550EL550-5700°K - CRI>70on/off74289135445330540-19.5
7112RR7600EL600-5700°K - CRI>70on/off79459132445330540-19.5
7112RR7400LD400-5700°K - CRI>70dali58988147445330540-19.5
7112RR7450LD450-5700°K - CRI>70dali64278143445330540-19.5
7112RR7500LD500-5700°K - CRI>70dali69379139445330540-19.5
7112RR7550LD550-5700°K - CRI>70dali74289135445330540-19.5
7112RR7600LD600-5700°K - CRI>70dali79459132445330540-19.5
