art.-8059-cosmic-3-a5

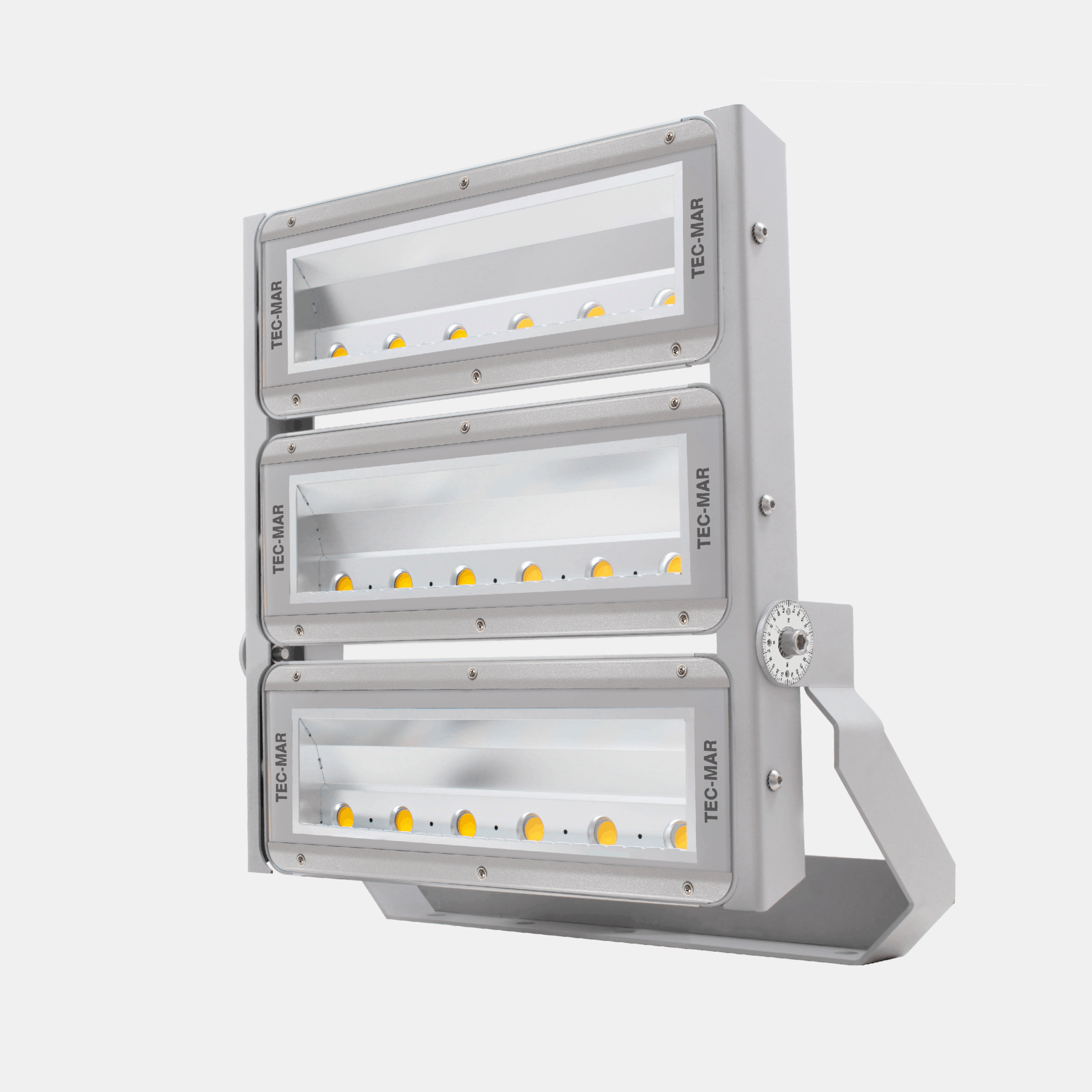

COSMIC 3/A5

Indoor and outdoor led floodlight, suitable for large areas and sports areas. Silver Extruded oxidate aluminium body, zinc-coated and painted bracket, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, COSMIC 3 - 8059, Floodlights, art. 8059 Cosmic 3
Models: 150
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8059A53= 3000°K (CRI >70)815=1000WGL= on/off
4= 4000°K (CRI >70)885=1200WGM= 1-10v
5= 5000°K (CRI >70)100 =1350WGD= dali
7= 5700°K (CRI >70)120G4= input 400Vac
R= 5700°K (CRI >90)135GX= 1-10v + dmx
MG= virtual midnight

Models

W tot.
°K - CRI
Options

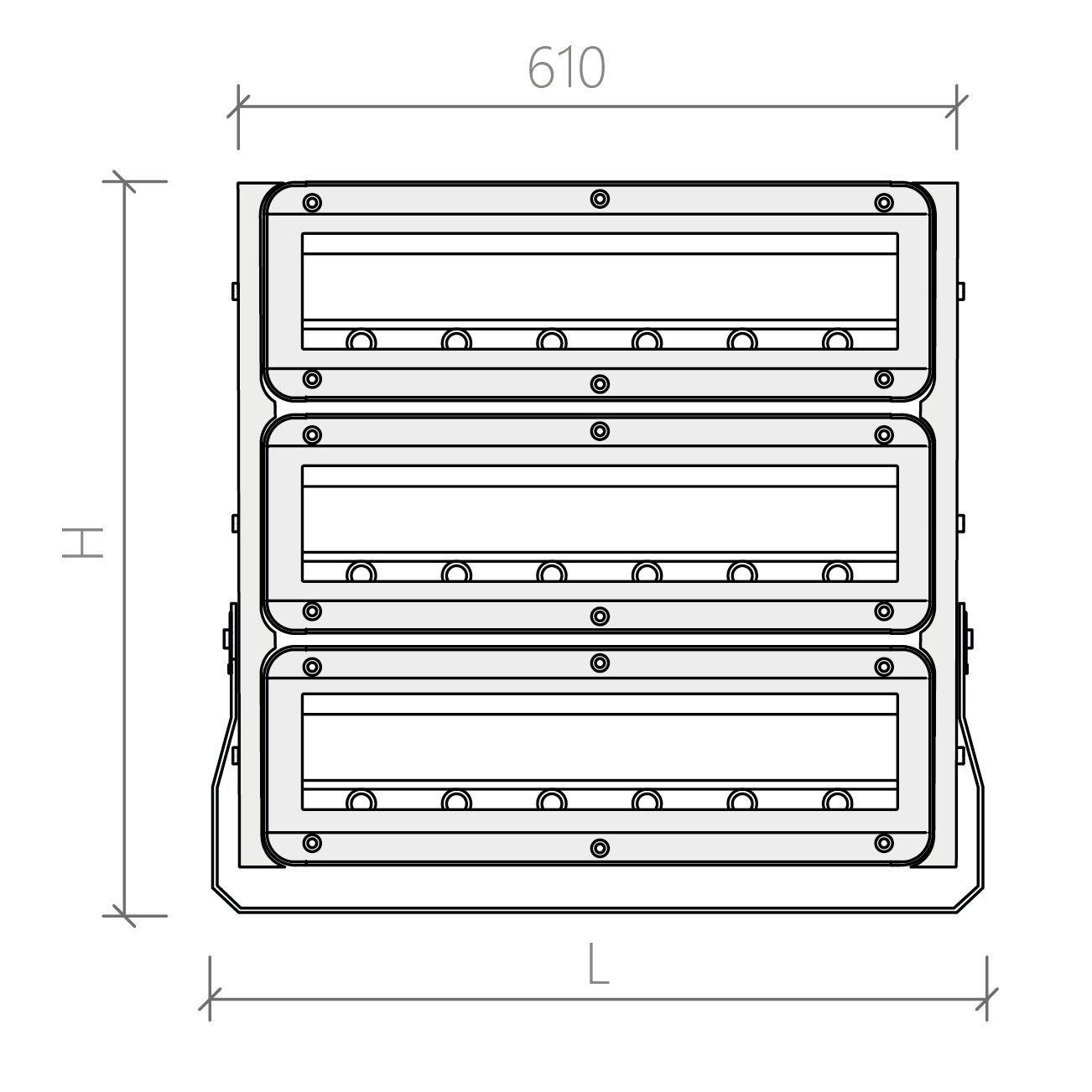

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8059A54815GL815-4000°K - CRI>70on/off13958217368071025561028.5
8059A54885GL885-4000°K - CRI>70on/off15035317168071025561028.5
8059A54100GL1000-4000°K - CRI>70on/off16435016668071025561028.5
8059A54120GL1200-4000°K - CRI>70on/off18509215568071025561028.5
8059A54135GL1350-4000°K - CRI>70on/off20951815668071025561028.5
8059A54815GM815-4000°K - CRI>701-10v13958217368071025561028.5
8059A54885GM885-4000°K - CRI>701-10v15035317168071025561028.5
8059A54100GM1000-4000°K - CRI>701-10v16435016668071025561028.5
8059A54120GM1200-4000°K - CRI>701-10v18509215568071025561028.5
8059A54135GM1350-4000°K - CRI>701-10v20951815668071025561028.5
8059A54815GD815-4000°K - CRI>70dali13958217368071025561028.5
8059A54885GD885-4000°K - CRI>70dali15035317168071025561028.5
8059A54100GD1000-4000°K - CRI>70dali16435016668071025561028.5
8059A54120GD1200-4000°K - CRI>70dali18509215568071025561028.5
8059A54135GD1350-4000°K - CRI>70dali20951815668071025561028.5
8059A54815G4815-4000°K - CRI>70input 400Vac13958217368071025561028.5
8059A54885G4885-4000°K - CRI>70input 400Vac15035317168071025561028.5
8059A54100G41000-4000°K - CRI>70input 400Vac16435016668071025561028.5
8059A54120G41200-4000°K - CRI>70input 400Vac18509215568071025561028.5
8059A54135G41350-4000°K - CRI>70input 400Vac20951815668071025561028.5
