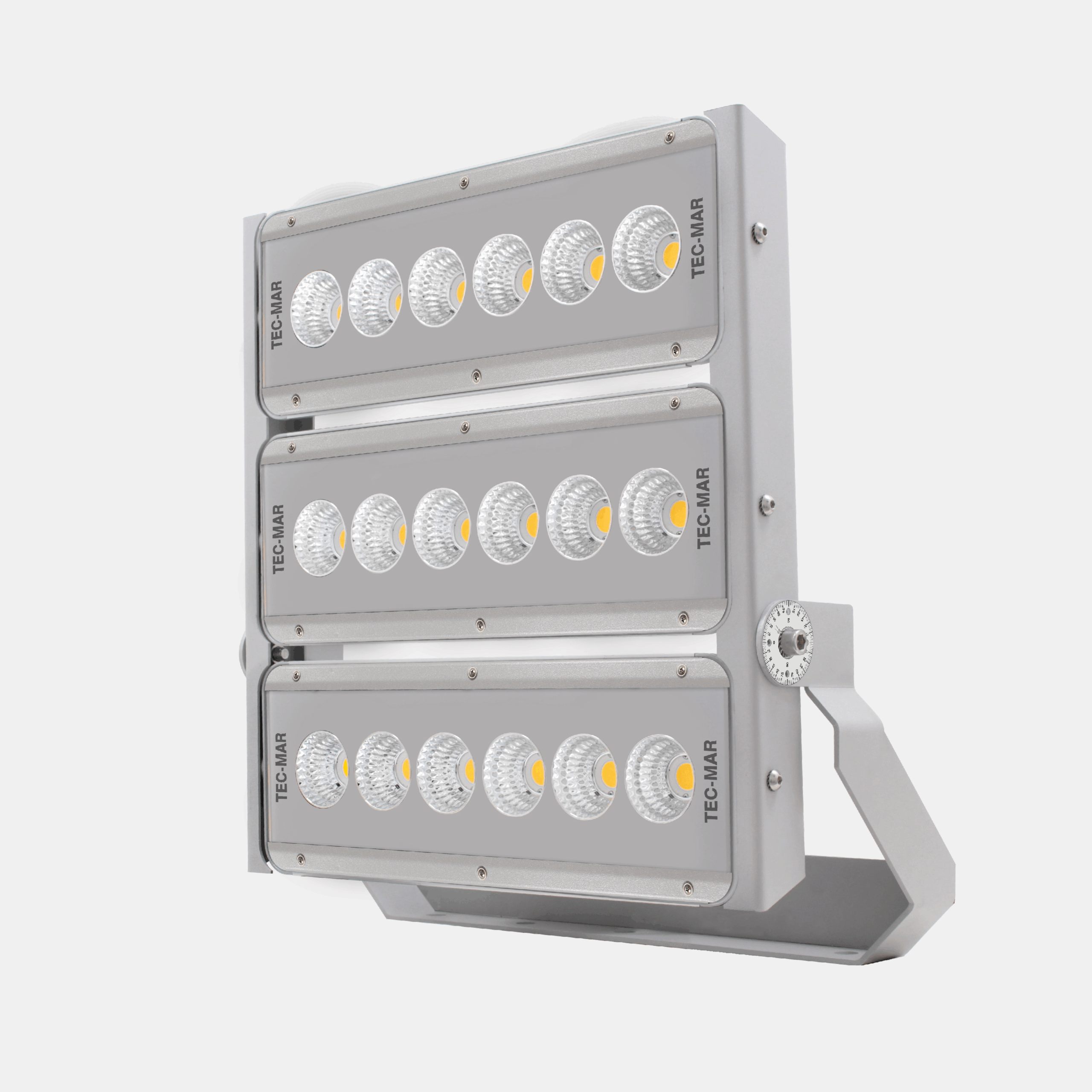

COSMIC 3/M6

Indoor and outdoor led floodlight, suitable for large areas and sports areas. Silver Extruded oxidate aluminium body, zinc-coated and painted bracket, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, COSMIC 3 - 8059, Floodlights, art. 8059 Cosmic 3

Models: 150

Color: Silver

Catalogue abstract

Installation instructions

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
8059	M6	3	= 3000°K (CRI >70)	815		GL	= on/off
		4	= 4000°K (CRI >70)	885		GM	= 1-10v
		5	= 5000°K (CRI >70)	100	=1000W	GD	= dali
		7	= 5700°K (CRI >70)	120	=1200W	G4	= input 400Vac
		R	= 5700°K (CRI >90)	135	=1350W	GX	= 1-10v + dmx
						MG	= virtual midnight

Models

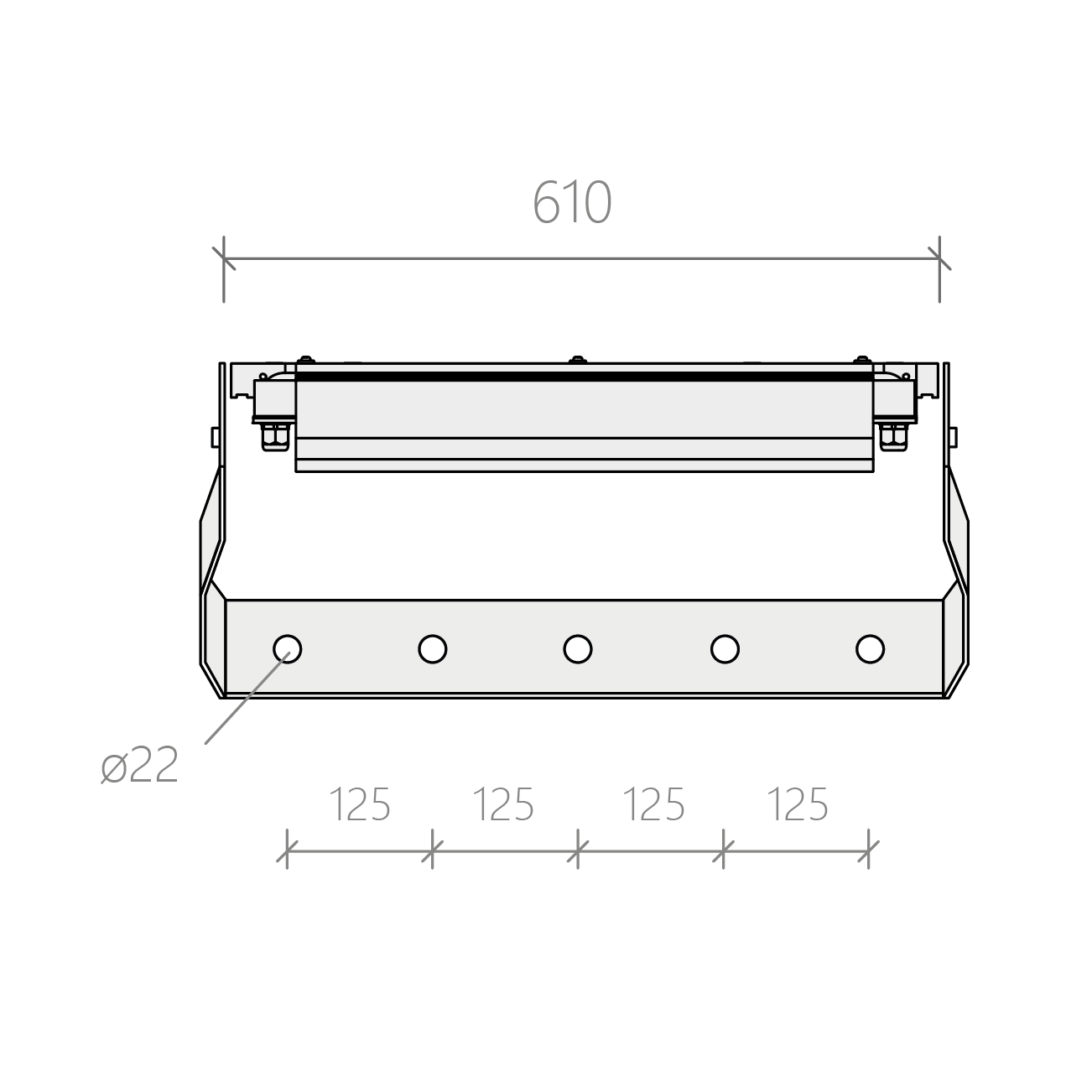

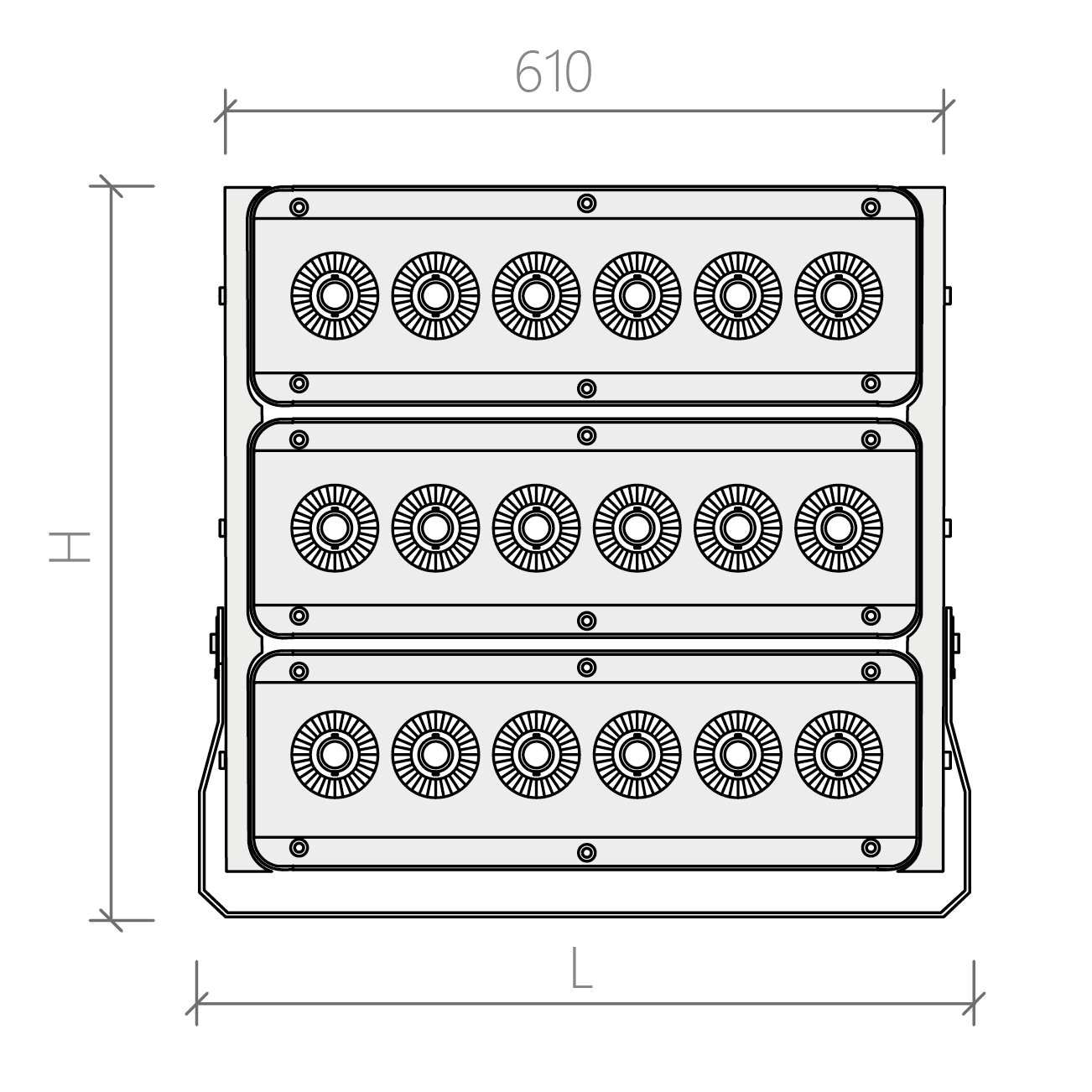

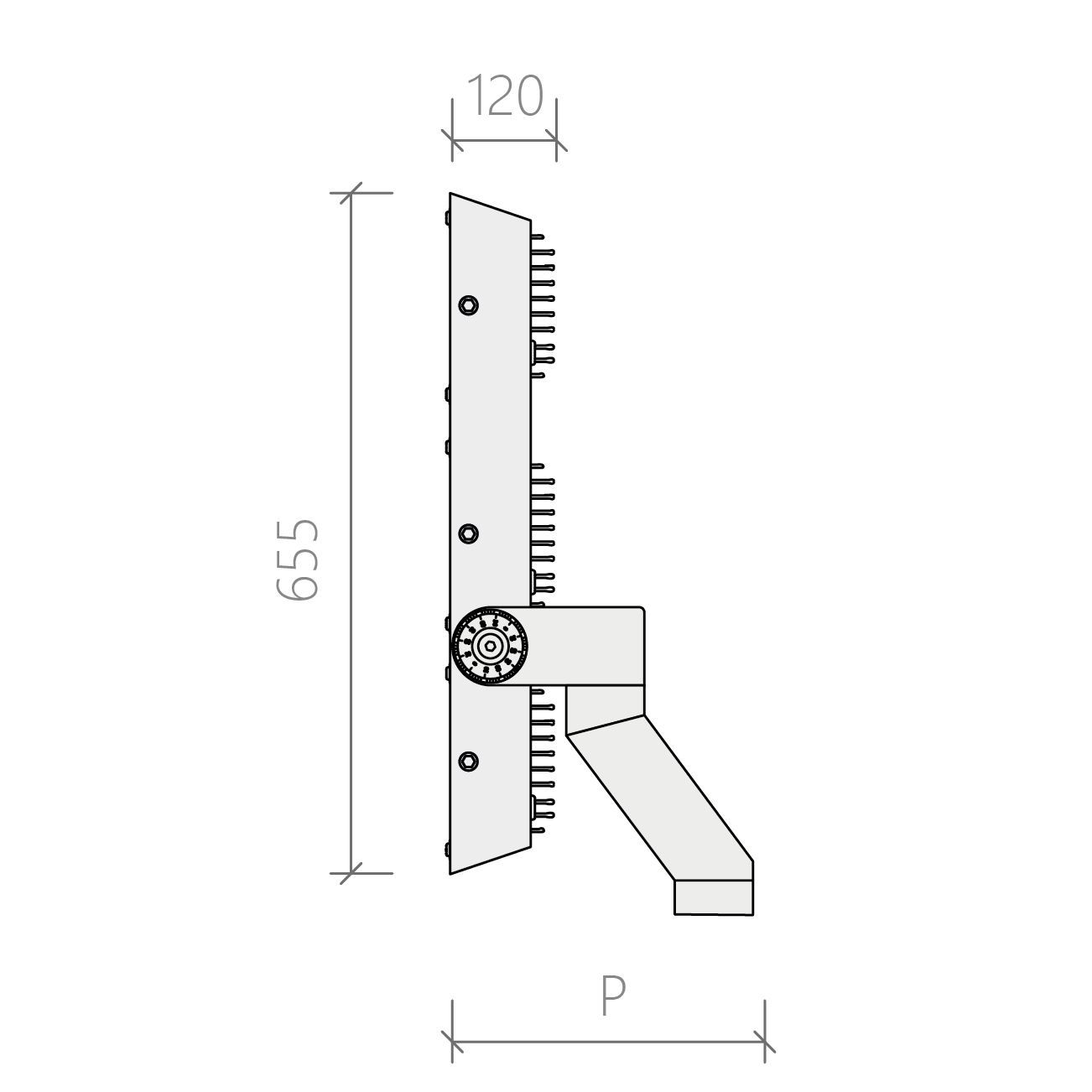

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
8059M64815GL	815	-	4000°K - CRI>70	on/off	144000	178	680	710	255	610	28.5
8059M64885GL	885	-	4000°K - CRI>70	on/off	155111	177	680	710	255	610	28.5
8059M64100GL	1000	-	4000°K - CRI>70	on/off	169551	171	680	710	255	610	28.5
8059M64120GL	1200	-	4000°K - CRI>70	on/off	190949	160	680	710	255	610	28.5
8059M64135GL	1350	-	4000°K - CRI>70	on/off	216234	161	680	710	255	610	28.5
8059M64815GM	815	-	4000°K - CRI>70	1-10v	144000	178	680	710	255	610	28.5
8059M64885GM	885	-	4000°K - CRI>70	1-10v	155111	177	680	710	255	610	28.5
8059M64100GM	1000	-	4000°K - CRI>70	1-10v	169551	171	680	710	255	610	28.5
8059M64120GM	1200	-	4000°K - CRI>70	1-10v	190949	160	680	710	255	610	28.5
8059M64135GM	1350	-	4000°K - CRI>70	1-10v	216234	161	680	710	255	610	28.5
8059M64815GD	815	-	4000°K - CRI>70	dali	144000	178	680	710	255	610	28.5
8059M64885GD	885	-	4000°K - CRI>70	dali	155111	177	680	710	255	610	28.5
8059M64100GD	1000	-	4000°K - CRI>70	dali	169551	171	680	710	255	610	28.5
8059M64120GD	1200	-	4000°K - CRI>70	dali	190949	160	680	710	255	610	28.5
8059M64135GD	1350	-	4000°K - CRI>70	dali	216234	161	680	710	255	610	28.5
8059M64815G4	815	-	4000°K - CRI>70	input 400Vac	144000	178	680	710	255	610	28.5
8059M64885G4	885	-	4000°K - CRI>70	input 400Vac	155111	177	680	710	255	610	28.5
8059M64100G4	1000	-	4000°K - CRI>70	input 400Vac	169551	171	680	710	255	610	28.5
8059M64120G4	1200	-	4000°K - CRI>70	input 400Vac	190949	160	680	710	255	610	28.5
8059M64135G4	1350	-	4000°K - CRI>70	input 400Vac	216234	161	680	710	255	610	28.5
