art.-2004-brera-2-r3

BRERA 2/R3

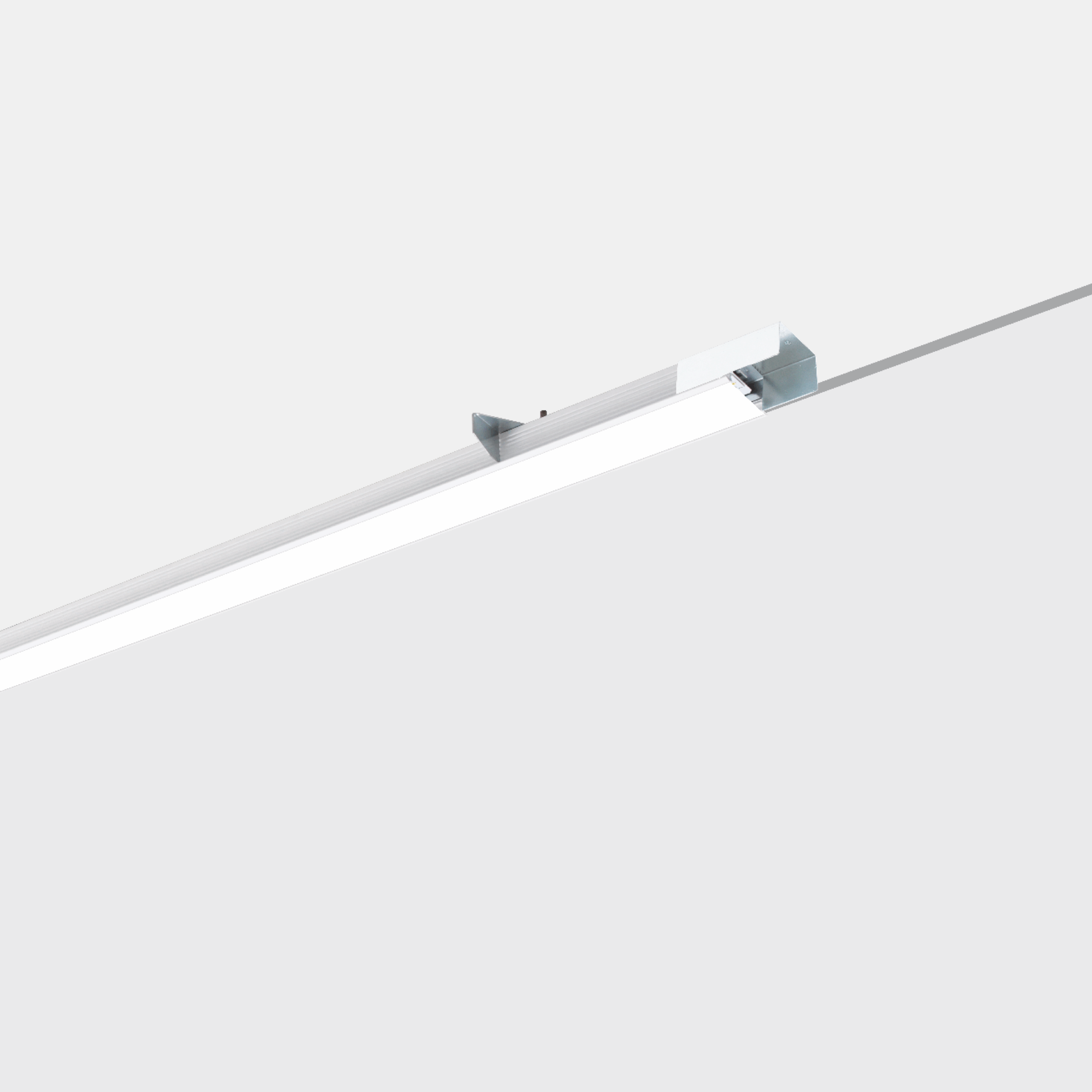

Apparecchio led lineare da incasso senza bordi in battuta per controsoffitti in cartongesso. Corpo in trafilato di alluminio verniciato con polveri epossipoliestere di colore bianco antingiallente con finitura goffrata fine, alimentatore elettronico 220- 240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Architectural Indoor, art. 2004 Brera 2
Codici: 24
Colore: Bianco opaco

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2004R330= 3000°K (CRI >80)12EL= on/offL = 56 mm
40= 4000°K (CRI >80)24ES= on/offL = 31 mm
94= 4000°K (CRI >90)30
36

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
2004R39436ES3613804000°K - CRI>90on/off (L=31 mm)32108931901685-1.6
2004R39430ES3011504000°K - CRI>90on/off (L=31 mm)26758931901405-1.3
2004R39424ES249204000°K - CRI>90on/off (L=31 mm)21408931901125-1.0
2004R39412ES124604000°K - CRI>90on/off (L=31 mm)1070893190565-0.5
2004R39436EL3613804000°K - CRI>90on/off (L=56 mm)32108956901685-2.3
2004R39430EL3011504000°K - CRI>90on/off (L=56 mm)26758956901405-1.9
2004R39424EL249204000°K - CRI>90on/off (L=56 mm)21408956901125-1.5
2004R39412EL124604000°K - CRI>90on/off (L=56 mm)1070895690565-0.7
2004R33036ES3613803000°K - CRI>80on/off (L=31 mm)358510031901685-1.6
2004R33030ES3011503000°K - CRI>80on/off (L=31 mm)298810031901405-1.3
2004R33024ES249203000°K - CRI>80on/off (L=31 mm)239010031901125-1.0
2004R33012ES124603000°K - CRI>80on/off (L=31 mm)11951003190565-0.5
2004R33036EL3613803000°K - CRI>80on/off (L=56 mm)358510056901685-2.3
2004R33030EL3011503000°K - CRI>80on/off (L=56 mm)298810056901405-1.9
2004R33024EL249203000°K - CRI>80on/off (L=56 mm)239010056901125-1.5
2004R33012EL124603000°K - CRI>80on/off (L=56 mm)11951005690565-0.7
2004R34036ES3613804000°K - CRI>80on/off (L=31 mm)378010531901685-1.6
2004R34030ES3011504000°K - CRI>80on/off (L=31 mm)315010531901405-1.3
2004R34024ES249204000°K - CRI>80on/off (L=31 mm)252010531901125-1.0
2004R34012ES124604000°K - CRI>80on/off (L=31 mm)12601053190565-0.5

Accessori
