Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | |||
---|---|---|---|---|---|---|---|---|---|---|---|
2046 | LP | 30 | = 3000°K (CRI >80) | 12 | 38 | EL | = on/off | ||||
40 | = 4000°K (CRI >80) | 16 | 39 | LD | = dali 2 / dali 2 push | ||||||
94 | = 4000°K (CRI >90) | 19 | 40 | D1 | = dali 2 + em.1h | ||||||
20 | 46 | E1 | = em. 1h | ||||||||
23 | 49 | E3 | = em. 3h | ||||||||
28 | 50 | FC | = fila continua | ||||||||
29 | 54 | CS | = casambi | ||||||||
32 | 57 | ||||||||||
36 | 60 |

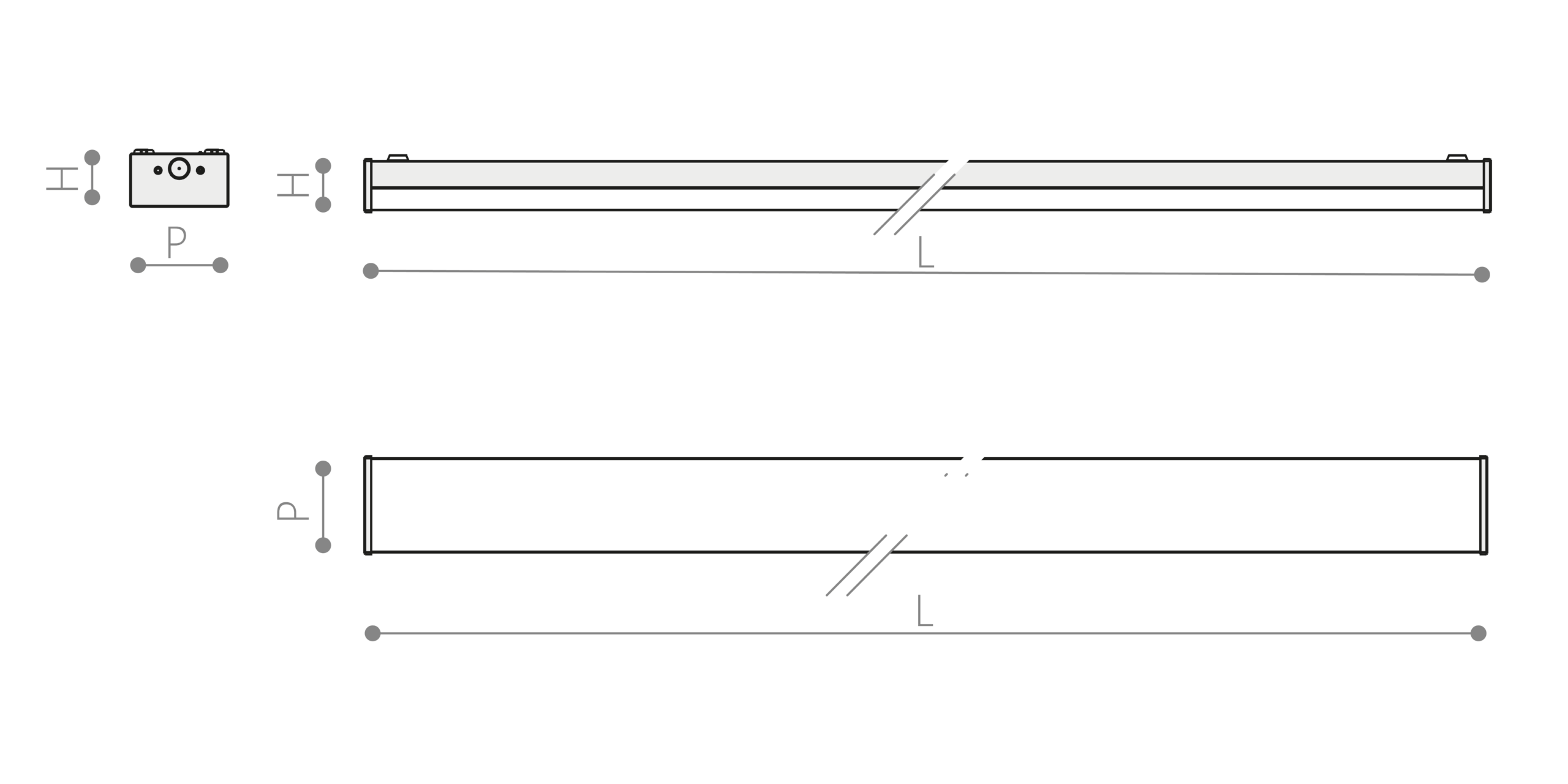

Codice | W tot. | mA | °K - CRI | Opzioni | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2046LP4012EL | 12 | - | 4000°K - CRI>80 | on/off | 1505 | 125 | 111 | 600 | 65 | - | 1.7 | |
2046LP4016EL | 16 | - | 4000°K - CRI>80 | on/off | 2137 | 134 | 111 | 600 | 65 | - | 1.7 | |
2046LP4019EL | 19 | - | 4000°K - CRI>80 | on/off | 2425 | 128 | 111 | 600 | 65 | - | 1.7 | |
2046LP4020EL | 20 | - | 4000°K - CRI>80 | on/off | 2568 | 128 | 111 | 1160 | 65 | - | 2.3 | |
2046LP4023EL | 23 | - | 4000°K - CRI>80 | on/off | 3010 | 131 | 111 | 1160 | 65 | - | 2.3 | |
2046LP4028EL | 28 | - | 4000°K - CRI>80 | on/off | 3568 | 127 | 111 | 1160 | 65 | - | 2.3 | |
2046LP4029EL | 29 | - | 4000°K - CRI>80 | on/off | 3925 | 135 | 111 | 1440 | 65 | - | 2.6 | |
2046LP4032EL | 32 | - | 4000°K - CRI>80 | on/off | 4275 | 134 | 111 | 1160 | 65 | - | 2.3 | |
2046LP4036EL | 36 | - | 4000°K - CRI>80 | on/off | 4622 | 128 | 111 | 1160 | 65 | - | 2.3 | |
2046LP4038EL | 38 | - | 4000°K - CRI>80 | on/off | 4979 | 131 | 111 | 1440 | 65 | - | 2.6 | |
2046LP4039EL | 39 | - | 4000°K - CRI>80 | on/off | 5124 | 131 | 111 | 1160 | 65 | - | 2.3 | |
2046LP4040EL | 40 | - | 4000°K - CRI>80 | on/off | 5517 | 138 | 111 | 1440 | 65 | - | 2.6 | |
2046LP4046EL | 46 | - | 4000°K - CRI>80 | on/off | 6063 | 132 | 111 | 1440 | 65 | - | 2.6 | |
2046LP4049EL | 49 | - | 4000°K - CRI>80 | on/off | 6406 | 131 | 111 | 1440 | 65 | - | 2.6 | |
2046LP4050EL | 50 | - | 4000°K - CRI>80 | on/off | 6527 | 131 | 111 | 1160 | 65 | - | 2.3 | |
2046LP4054EL | 54 | - | 4000°K - CRI>80 | on/off | 6773 | 125 | 111 | 1440 | 65 | - | 2.6 | |
2046LP4057EL | 57 | - | 4000°K - CRI>80 | on/off | 7618 | 134 | 111 | 1440 | 65 | - | 2.6 | |
2046LP4060EL | 60 | - | 4000°K - CRI>80 | on/off | 7471 | 125 | 111 | 1440 | 65 | - | 2.6 | |
2046LP4012LD | 12 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 1505 | 125 | 111 | 600 | 65 | - | 1.7 | |
2046LP4016LD | 16 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 2137 | 134 | 111 | 600 | 65 | - | 1.7 |
