STEP/RF

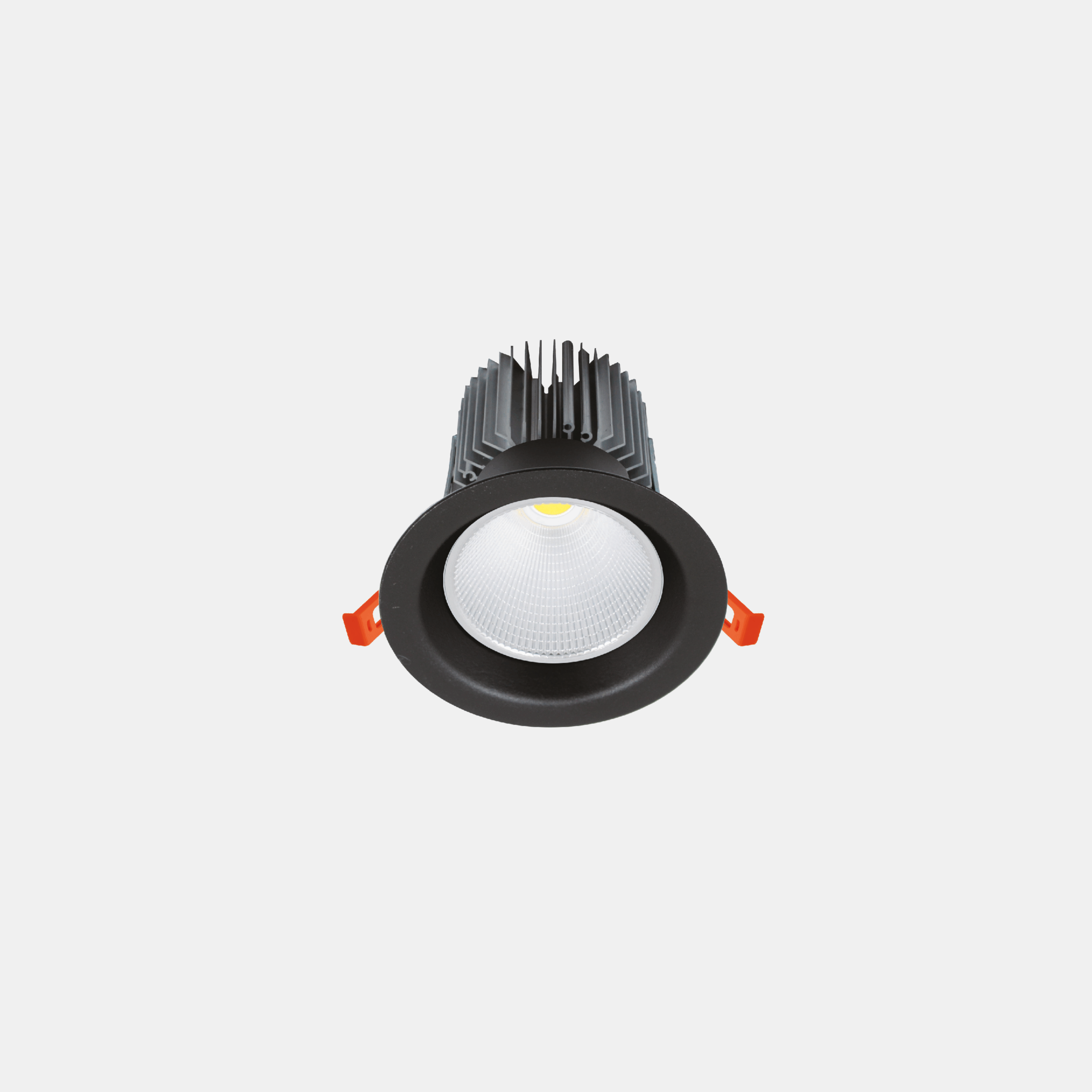

Apparecchio led da interni con installazione ad incasso. Corpo in alluminio tornito tranciato verniciato con polveri epossipoliestere di colore nero (pretrattamento di fosfatazione e sgrassaggio). Driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Architectural Indoor, art. 6021 Step
Codici: 60
Colore: Nero opaco

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6021RF27= 2700°K (CRI >80)06NL= on/off
30= 3000°K (CRI >80)10ND= dali 2 / dali 2 push
40= 4000°K (CRI >80)15NC= casambi
97= 2700°K (CRI >80)25
93= 3000°K (CRI >80)40
94= 4000°K (CRI >80)

Codici

W tot.
°K - CRI
Opzioni

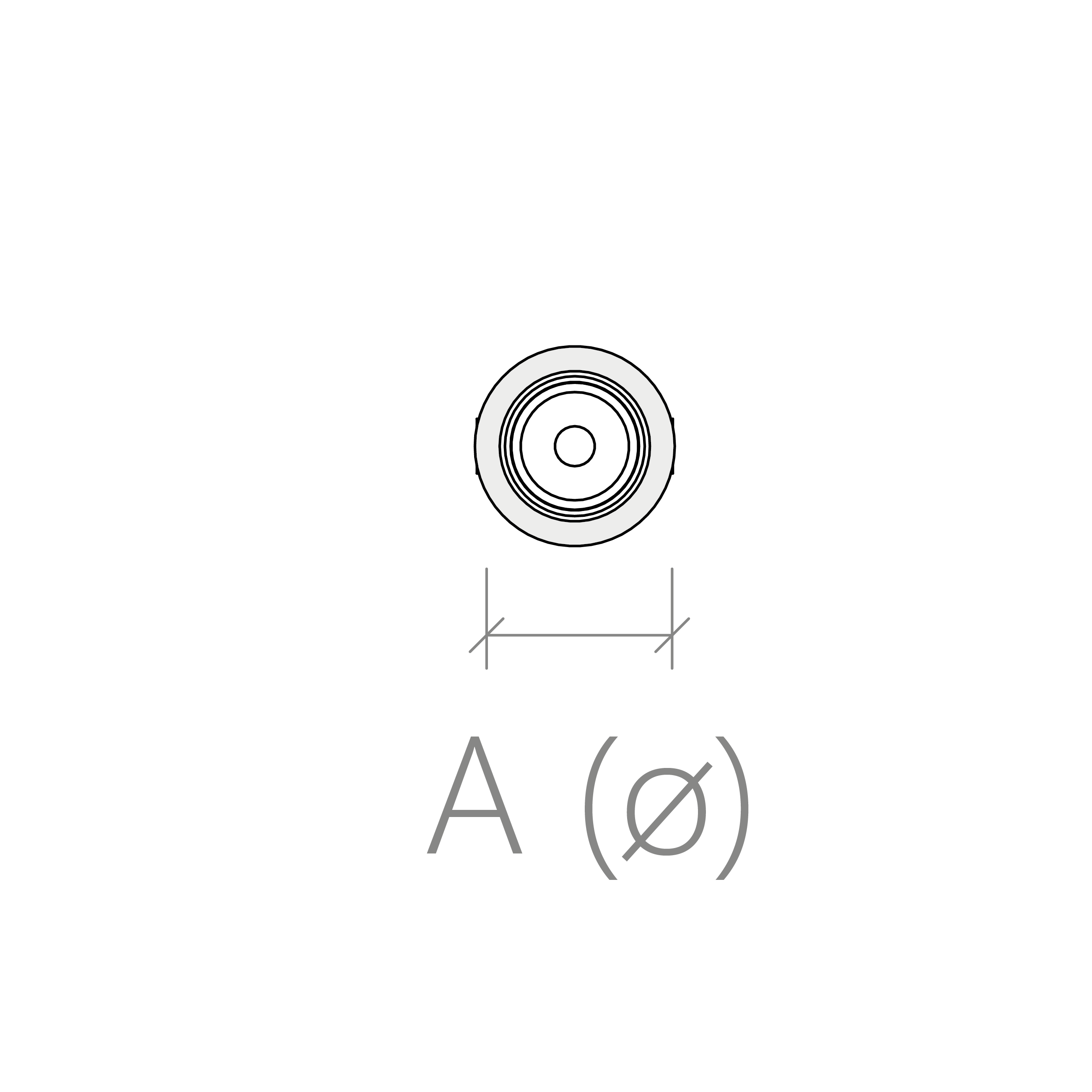

CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6021RF9440ND40-4000°K - CRI>90dali / dali push392598135-140-0.65
6021RF9425ND25-4000°K - CRI>90dali / dali push244498135-110-0.6
6021RF9415ND15-4000°K - CRI>90dali / dali push1586106105-95-0.45
6021RF9410ND10-4000°K - CRI>90dali / dali push102210275-60-0.35
6021RF9406ND6-4000°K - CRI>90dali / dali push5128555-55-0.3
6021RF9440NL40-4000°K - CRI>90on/off392598135-140-0.65
6021RF9425NL25-4000°K - CRI>90on/off244498135-110-0.6
6021RF9415NL15-4000°K - CRI>90on/off1586106105-95-0.45
6021RF9410NL10-4000°K - CRI>90on/off102210275-60-0.35
6021RF9406NL6-4000°K - CRI>90on/off5128555-55-0.3
6021RF9740ND40-2700°K - CRI>90dali / dali push355289135-140-0.65
6021RF9725ND25-2700°K - CRI>90dali / dali push221288135-110-0.6
6021RF9715ND15-2700°K - CRI>90dali / dali push143596105-95-0.45
6021RF9710ND10-2700°K - CRI>90dali / dali push9259375-60-0.35
6021RF9706ND6-2700°K - CRI>90dali / dali push4647755-55-0.3
6021RF9740NL40-2700°K - CRI>90on/off355289135-140-0.65
6021RF9725NL25-2700°K - CRI>90on/off221288135-110-0.6
6021RF9715NL15-2700°K - CRI>90on/off143596105-95-0.45
6021RF9710NL10-2700°K - CRI>90on/off9259375-60-0.35
6021RF9706NL6-2700°K - CRI>90on/off4647755-55-0.3
