Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | ||
---|---|---|---|---|---|---|---|---|---|---|
6022 | QF | 27 | = 2700°K (CRI >80) | 06 | NL | = on/off | ||||
30 | = 3000°K (CRI >80) | 10 | ND | = dali 2 / dali 2 push | ||||||
40 | = 4000°K (CRI >80) | 15 | NC | = casambi | ||||||
97 | = 2700°K (CRI >80) | 25 | ||||||||
93 | = 3000°K (CRI >80) | 40 | ||||||||
94 | = 4000°K (CRI >80) |

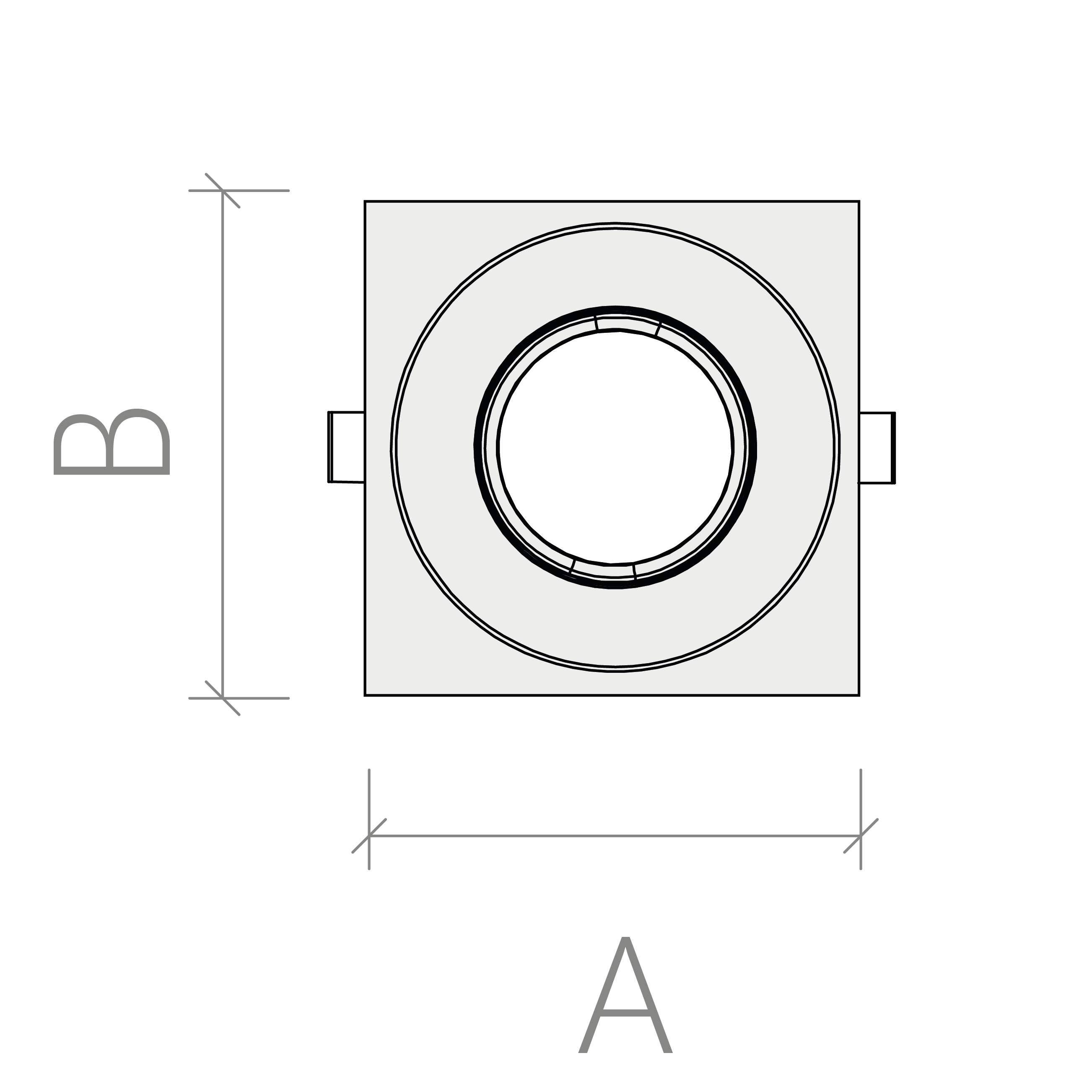

Codice | W tot. | mA | °K - CRI | Opzioni | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
6022QF4006NL | 6 | - | 4000°K - CRI>80 | on/off | 528 | 88 | 55 | 55 | 80 | - | 0.20 | |
6022QF4010NL | 10 | - | 4000°K - CRI>80 | on/off | 1055 | 105 | 75 | 75 | 90 | - | 0.25 | |
6022QF4015NL | 15 | - | 4000°K - CRI>80 | on/off | 1637 | 109 | 105 | 105 | 130 | - | 0.40 | |
6022QF4025NL | 25 | - | 4000°K - CRI>80 | on/off | 2522 | 101 | 135 | 135 | 110 | - | 0.50 | |
6022QF4040NL | 40 | - | 4000°K - CRI>80 | on/off | 4050 | 101 | 135 | 135 | 140 | - | 0.80 | |
6022QF4010ND | 10 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 1055 | 105 | 75 | 75 | 90 | - | 0.25 | |
6022QF4015ND | 15 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 1637 | 109 | 105 | 105 | 130 | - | 0.40 | |
6022QF4025ND | 25 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 2522 | 101 | 135 | 135 | 110 | - | 0.50 | |
6022QF4040ND | 40 | - | 4000°K - CRI>80 | dali 2 / dali 2 push | 4050 | 101 | 135 | 135 | 140 | - | 0.80 | |
6022QF3006NL | 6 | - | 3000°K - CRI>80 | on/off | 512 | 85 | 55 | 55 | 80 | - | 0.20 | |
6022QF3010NL | 10 | - | 3000°K - CRI>80 | on/off | 1023 | 102 | 75 | 75 | 90 | - | 0.25 | |
6022QF3015NL | 15 | - | 3000°K - CRI>80 | on/off | 1588 | 106 | 105 | 105 | 130 | - | 0.40 | |
6022QF3025NL | 25 | - | 3000°K - CRI>80 | on/off | 2446 | 98 | 135 | 135 | 110 | - | 0.50 | |
6022QF3040NL | 40 | - | 3000°K - CRI>80 | on/off | 3928 | 98 | 135 | 135 | 140 | - | 0.80 | |
6022QF3010ND | 10 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 1023 | 102 | 75 | 75 | 90 | - | 0.25 | |
6022QF3015ND | 15 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 1588 | 106 | 105 | 105 | 130 | - | 0.40 | |
6022QF3025ND | 25 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 2446 | 98 | 135 | 135 | 110 | - | 0.50 | |
6022QF3040ND | 40 | - | 3000°K - CRI>80 | dali 2 / dali 2 push | 3928 | 98 | 135 | 135 | 140 | - | 0.80 | |
6022QF2706NL | 6 | - | 2700°K - CRI>80 | on/off | 488 | 81 | 55 | 55 | 80 | - | 0.20 | |
6022QF2710NL | 10 | - | 2700°K - CRI>80 | on/off | 974 | 97 | 75 | 75 | 90 | - | 0.25 |
