TADAO/RS

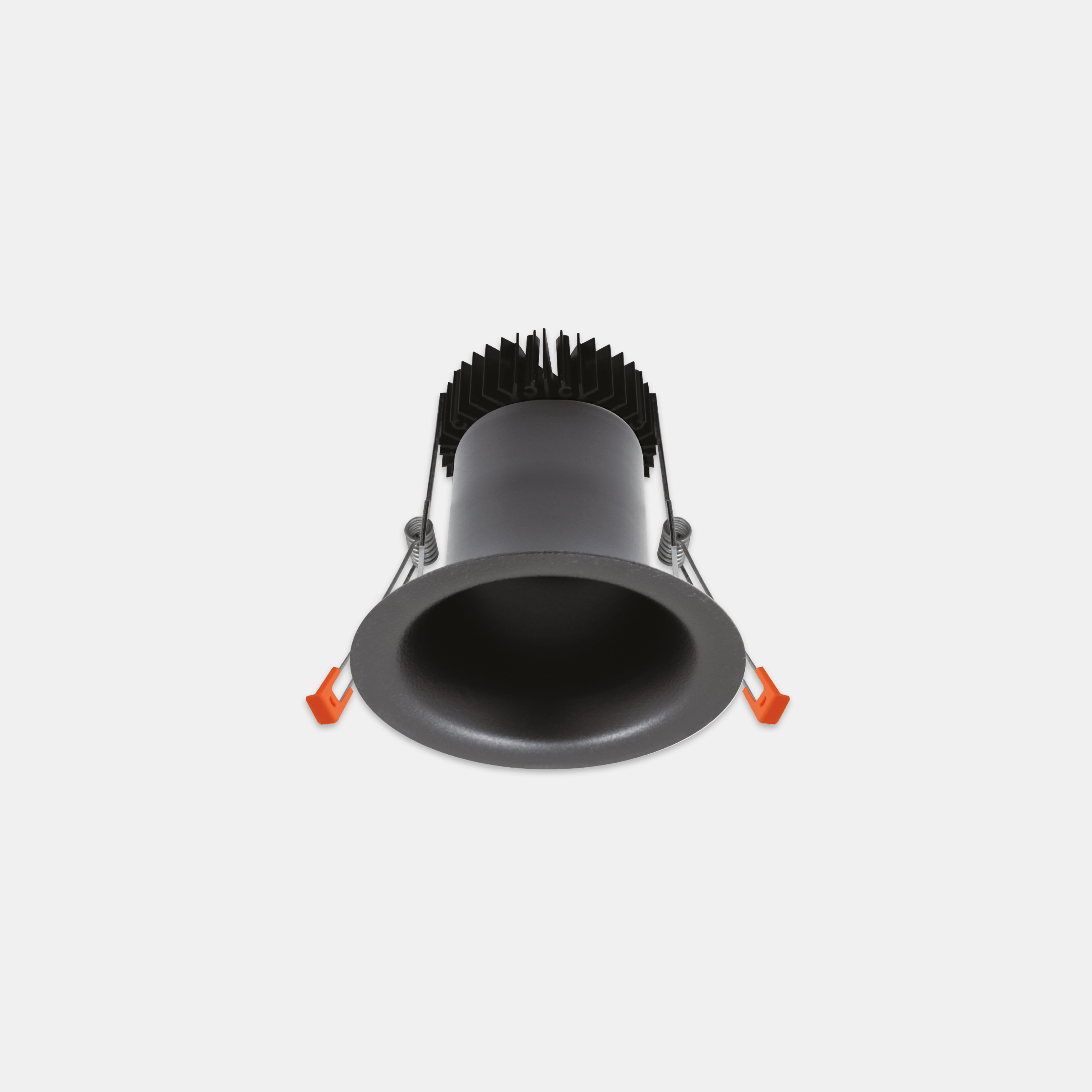

Apparecchio led da interni con installazione ad incasso. Corpo in alluminio tornito tranciato verniciato con polveri epossipoliestere di colore nero (pretrattamento di fosfatazione e sgrassaggio). Driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Architectural Indoor, art. 6022 Tadao
Codici: 60
Colore: Nero opaco

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6022RS27= 2700°K (CRI >80)06NL= on/off
30= 3000°K (CRI >80)10ND= dali 2 / dali 2 push
40= 4000°K (CRI >80)15NC = casambi
97= 2700°K (CRI >80)25
93= 3000°K (CRI >80)40
94= 4000°K (CRI >80)

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6022RS9440ND40-4000°K - CRI>90dali / dali push379895135-140-0.65
6022RS9425ND25-4000°K - CRI>90dali / dali push226190135-110-0.6
6022RS9415ND15-4000°K - CRI>90dali / dali push146898105-95-0.45
6022RS9410ND10-4000°K - CRI>90dali / dali push9469575-60-0.35
6022RS9406ND6-4000°K - CRI>90dali / dali push4747955-55-0.3
6022RS9440NL40-4000°K - CRI>90on/off379895135-140-0.65
6022RS9425NL25-4000°K - CRI>90on/off226190135-110-0.6
6022RS9415NL15-4000°K - CRI>90on/off146898105-95-0.45
6022RS9410NL10-4000°K - CRI>90on/off9469575-60-0.35
6022RS9406NL6-4000°K - CRI>90on/off4747955-55-0.3
6022RS9740ND40-2700°K - CRI>90dali / dali push343786135-140-0.65
6022RS9725ND25-2700°K - CRI>90dali / dali push204682135-110-0.6
6022RS9715ND15-2700°K - CRI>90dali / dali push132889105-95-0.45
6022RS9710ND10-2700°K - CRI>90dali / dali push8568675-60-0.35
6022RS9706ND6-2700°K - CRI>90dali / dali push4297255-55-0.3
6022RS9740NL40-2700°K - CRI>90on/off343786135-140-0.65
6022RS9725NL25-2700°K - CRI>90on/off204682135-110-0.6
6022RS9715NL15-2700°K - CRI>90on/off132889105-95-0.45
6022RS9710NL10-2700°K - CRI>90on/off8568675-60-0.35
6022RS9706NL6-2700°K - CRI>90on/off4297255-55-0.3
