TOGO B/33

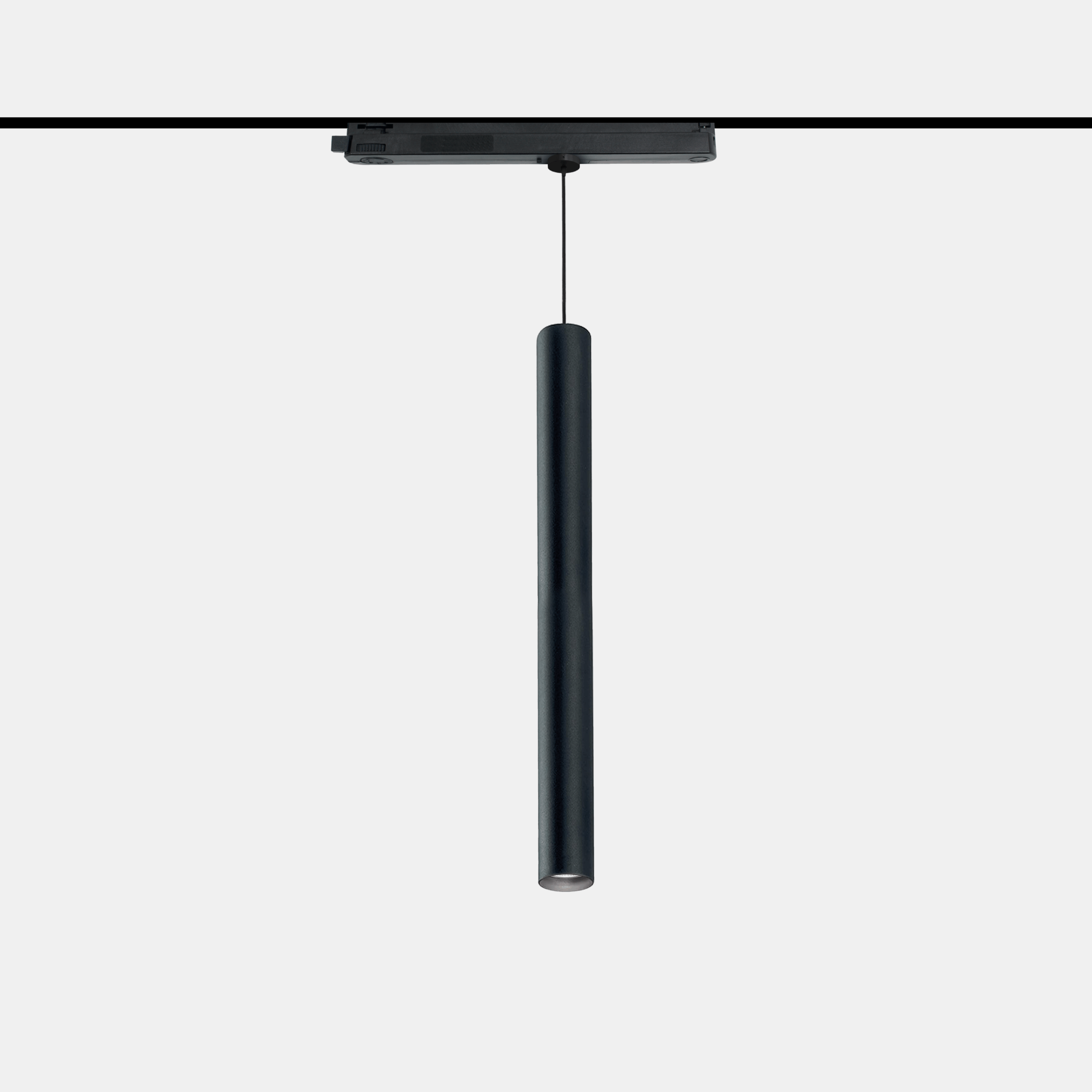

Sospensione led a singola emissione per binario elettrificato Eurostandard. Corpo in estrusione di alluminio verniciato con polveri epossipoliestere di colore nero opaco antingiallente con finitura goffrata fine, alimentatore elettronico a 220-240V 50/60Hz o 48Vdc. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Retail, Togo B
Codici: 30
Colore: Nero opaco

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
61023327= 2700°K (CRI >80)03NL= on/off (220-240Vac)
30= 3000°K (CRI >80)05N4= on/off (48Vdc)
40= 4000°K (CRI >80)ND= dali (220-240Vac)
93= 3000°K (CRI >90)DN= dali (48Vdc)
94= 4000°K (CRI >90)

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6102332705ND5-2700°K - CRI>80dali (220-240Vac)4939935170350-0.8
6102332703ND3-2700°K - CRI>80dali (220-240Vac)36412135170350-0.8
6102332705N45-2700°K - CRI>80on/off (48Vdc)4939935170550-0.9
6102332703N43-2700°K - CRI>80on/off (48Vdc)36412135170550-0.9
6102332705NL5-2700°K - CRI>80on/off (220-240Vac)4939935170350-0.8
6102332703NL3-2700°K - CRI>80on/off (220-240Vac)36412135170350-0.8
6102339405ND5-4000°K - CRI>90dali (220-240Vac)4589235170350-0.8
6102339403ND3-4000°K - CRI>90dali (220-240Vac)33811335170350-0.8
6102339405N45-4000°K - CRI>90on/off (48Vdc)4589235170550-0.9
6102339403N43-4000°K - CRI>90on/off (48Vdc)33811335170550-0.9
6102339405NL5-4000°K - CRI>90on/off (220-240Vac)4589235170350-0.8
6102339403NL3-4000°K - CRI>90on/off (220-240Vac)33811335170350-0.8
6102339305ND5-3000°K - CRI>90dali (220-240Vac)4378735170350-0.8
6102339303ND3-3000°K - CRI>90dali (220-240Vac)32210735170350-0.8
6102339305N45-3000°K - CRI>90on/off (48Vdc)4378735170550-0.9
6102339303N43-3000°K - CRI>90on/off (48Vdc)32210735170550-0.9
6102339305NL5-3000°K - CRI>90on/off (220-240Vac)4378735170350-0.8
6102339303NL3-3000°K - CRI>90on/off (220-240Vac)32210735170350-0.8
6102333005ND5-3000°K - CRI>80dali (220-240Vac)51810435170350-0.8
6102333003ND3-3000°K - CRI>80dali (220-240Vac)38212735170350-0.8
