SLIM B/R3

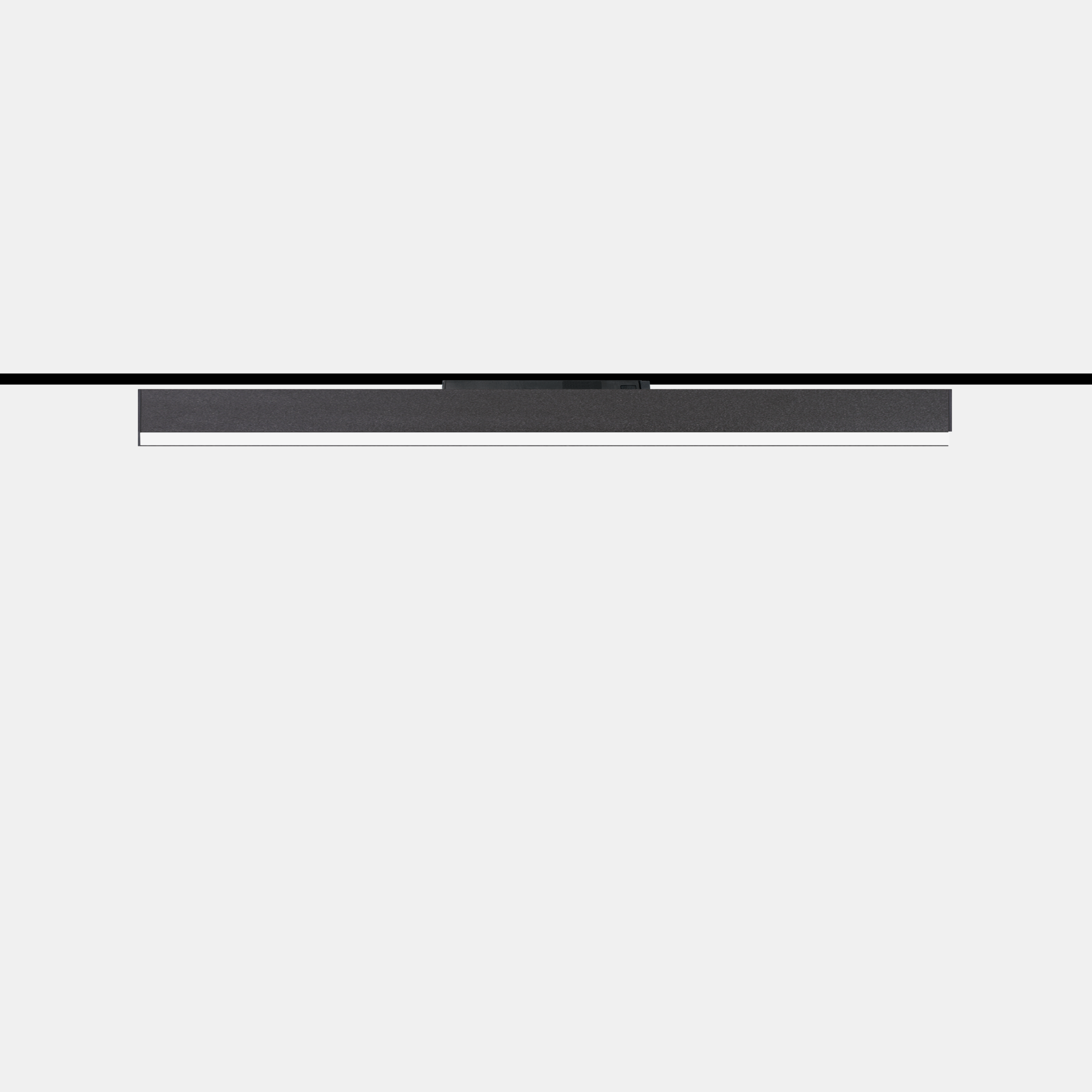

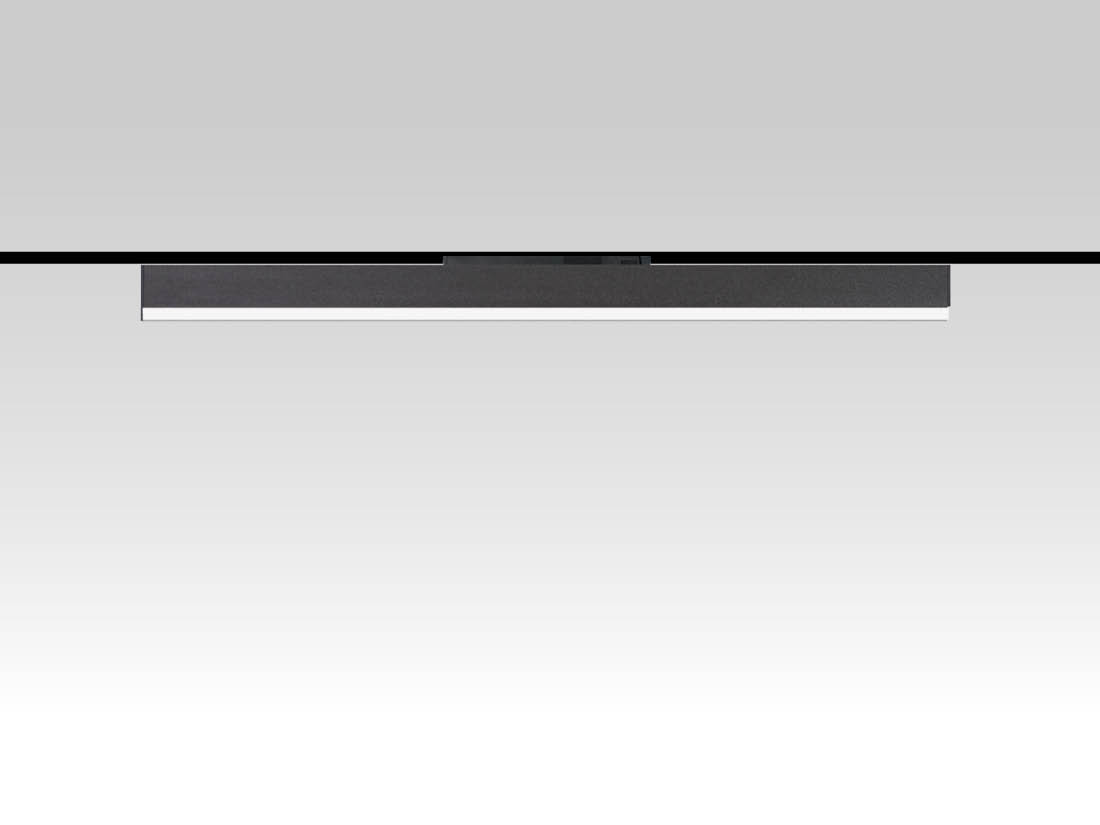

Apparecchio led lineare per binario elettrificato Eurostandard. Corpo in estruso di alluminio verniciato con polveri epossipoliestere di colore antracite con finitura goffrata fine, alimentatore elettronico 220-240V 50/60Hz o 48Vdc. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Retail, art. 6103 Slim B
Codici: 60
Colore: Nero opaco

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6103R327= 2700°K (CRI >80)06NL= on/off (220-240Vac)
30= 3000°K (CRI >80)09N4= on/off (48Vdc)
40= 4000°K (CRI >80)12ND= dali (220-240Vac)
93= 3000°K (CRI >90)18DN= dali (48Vdc)
94= 4000°K (CRI >90)24
36

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6103R32736ND36-2700°K - CRI>80dali359710031871130-2.6
6103R32718ND18-2700°K - CRI>80dali17981003187570-1.3
6103R32709ND9-2700°K - CRI>80dali8991003187290-0.7
6103R32724ND24-2700°K - CRI>80dali271311331871130-2.6
6103R32712ND12-2700°K - CRI>80dali13561133187570-1.3
6103R32706ND6-2700°K - CRI>80dali6781133187290-0.7
6103R32736NL36-2700°K - CRI>80on/off359710031871130-2.6
6103R32718NL18-2700°K - CRI>80on/off17981003187570-1.3
6103R32709NL9-2700°K - CRI>80on/off8991003187290-0.7
6103R32724NL24-2700°K - CRI>80on/off271311331871130-2.6
6103R32712NL12-2700°K - CRI>80on/off13561133187570-1.3
6103R32706NL6-2700°K - CRI>80on/off6781133187290-0.7
6103R39436ND36-4000°K - CRI>90dali33249231871130-2.6
6103R39418ND18-4000°K - CRI>90dali1662923187570-1.3
6103R39409ND9-4000°K - CRI>90dali831923187290-0.7
6103R39424ND24-4000°K - CRI>90dali250710431871130-2.6
6103R39412ND12-4000°K - CRI>90dali12531043187570-1.3
6103R39406ND6-4000°K - CRI>90dali6271053187290-0.7
6103R39436NL36-4000°K - CRI>90on/off33249231871130-2.6
6103R39418NL18-4000°K - CRI>90on/off1662923187570-1.3
