art.-6104-tom-c1-c3-c6-bianco

TOM/C6

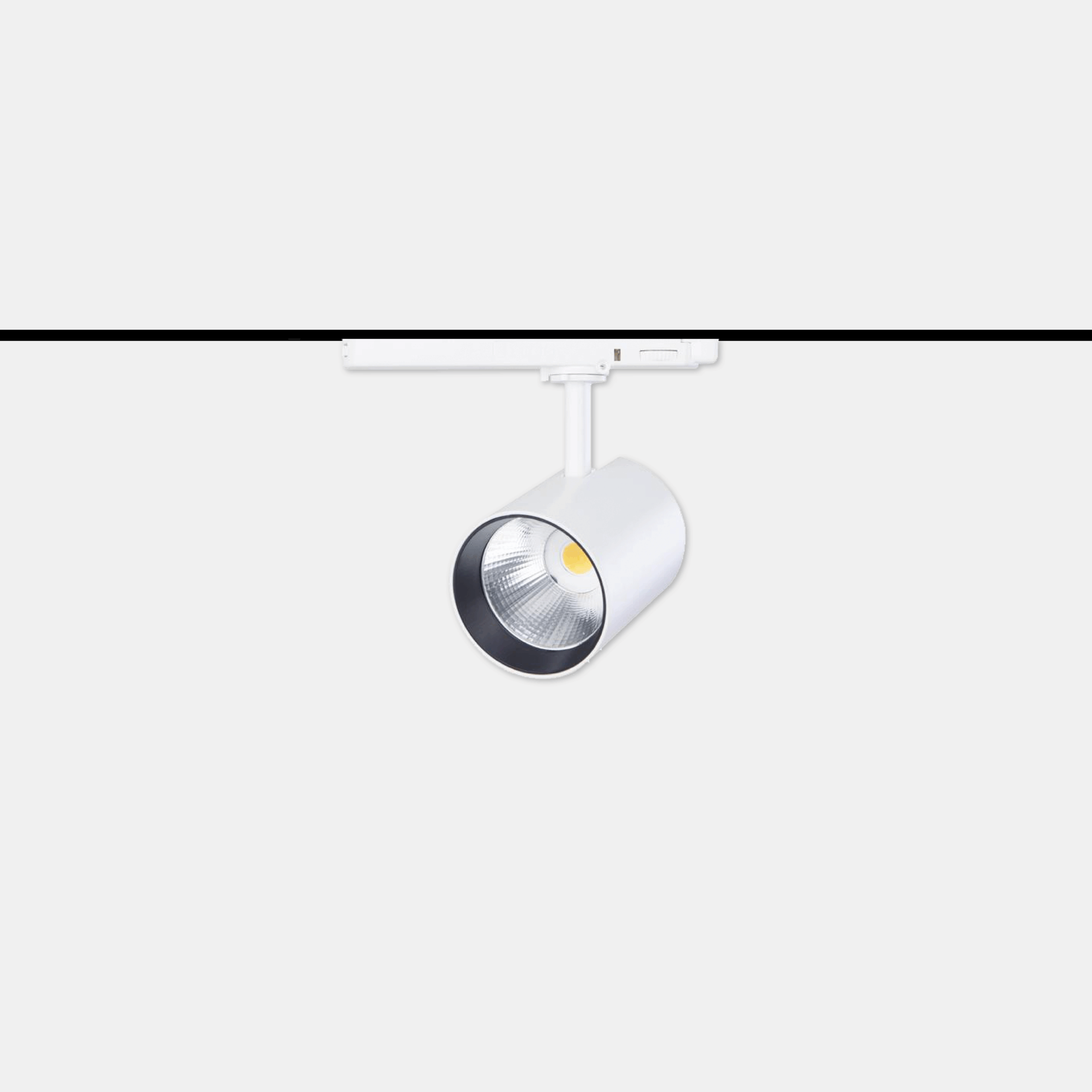

Proiettore led orientabile di dimensioni minimali per luce di accento per binario elettrificato Eurostandard. Corpo in pressofusione d’alluminio verniciato con polveri epossipoliestere di colore bianco opaco antingiallente con finitura goffrata fine, alimentatore elettronico 220-240V 50/60Hz o 48Vdc. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Retail, art. 6104 Tom
Codici: 80
Colore: Bianco opaco

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
6104C630= 3000°K (CRI >80)13BL= on/off (220-240Vac)
40= 4000°K (CRI >80)17BD= dali (220-240Vac)
93= 3000°K (CRI >90)19B4= on/off (48Vdc)
94= 4000°K (CRI >90)22D4= dali (48Vdc)
27

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
6104C69327D427-3000°K - CRI>90dali (48Vdc)2661997575125-0.65
6104C69323D423-3000°K - CRI>90dali (48Vdc)23231017575125-0.65
6104C69319D419-3000°K - CRI>90dali (48Vdc)19711047575125-0.65
6104C69317D417-3000°K - CRI>90dali (48Vdc)17891057575125-0.65
6104C69313D413-3000°K - CRI>90dali (48Vdc)14161097575125-0.65
6104C69327B427-3000°K - CRI>90on/off (48Vdc)2661997575125-0.65
6104C69323B423-3000°K - CRI>90on/off (48Vdc)23231017575125-0.65
6104C69319B419-3000°K - CRI>90on/off (48Vdc)19711047575125-0.65
6104C69317B417-3000°K - CRI>90on/off (48Vdc)17891057575125-0.65
6104C69313B413-3000°K - CRI>90on/off (48Vdc)14161097575125-0.65
6104C69327BD27-3000°K - CRI>90dali (220-240Vac)2661997575125-0.65
6104C69323BD23-3000°K - CRI>90dali (220-240Vac)23231017575125-0.65
6104C69319BD19-3000°K - CRI>90dali (220-240Vac)19711047575125-0.65
6104C69317BD17-3000°K - CRI>90dali (220-240Vac)17891057575125-0.65
6104C69313BD13-3000°K - CRI>90dali (220-240Vac)14161097575125-0.65
6104C69327BL27-3000°K - CRI>90on/off (220-240Vac)2661997575125-0.65
6104C69323BL23-3000°K - CRI>90on/off (220-240Vac)23231017575125-0.65
6104C69319BL19-3000°K - CRI>90on/off (220-240Vac)19711047575125-0.65
6104C69317BL17-3000°K - CRI>90on/off (220-240Vac)17891057575125-0.65
6104C69313BL13-3000°K - CRI>90on/off (220-240Vac)14161097575125-0.65
