BOSTON/AB

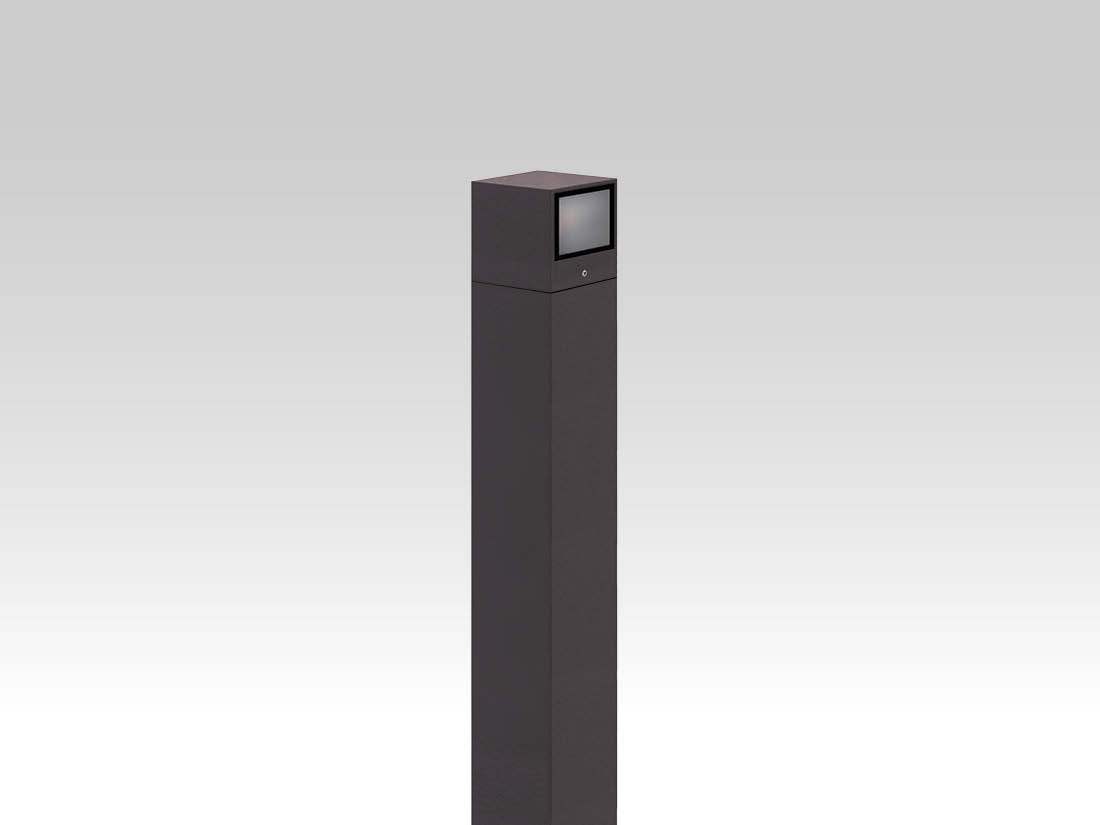

Apparecchio led da esterno per installazione a terra. Corpo in alluminio pressofuso con struttura in alluminio estruso, verniciato con polveri epossidiche, colore antracite. Alimentatore elettronico 220-240V, 50/60 Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Architectural Outdoor, art. 7023 Boston
Codici: 36
Colore: Antracite

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7023AB27= 2700°K (CRI >80)03NS= 250 mm
30= 3000°K (CRI >80)06NM= 500 mm
40= 4000°K (CRI >80)09NL= 1000 mm
NB = 1500 mm

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7023AB2709NB9-2700°K - CRI>801500 mm7408260601500-3.2
7023AB2706NB6-2700°K - CRI>801500 mm5559360601500-3.2
7023AB2703NB3-2700°K - CRI>801500 mm2789360601500-3.2
7023AB2709NL9-2700°K - CRI>801000 mm7408260601000-2.2
7023AB2706NL6-2700°K - CRI>801000 mm5559360601000-2.2
7023AB2703NL3-2700°K - CRI>801000 mm2789360601000-2.2
7023AB2709NM9-2700°K - CRI>80500 mm740826060500-1.2
7023AB2706NM6-2700°K - CRI>80500 mm555936060500-1.2
7023AB2703NM3-2700°K - CRI>80500 mm278936060250-1.2
7023AB2709NS9-2700°K - CRI>80250 mm740826060250-0.8
7023AB2706NS6-2700°K - CRI>80250 mm555936060250-0.8
7023AB2703NS3-2700°K - CRI>80250 mm278936060250-0.8
7023AB3009NB9-3000°K - CRI>801500 mm7658560601500-3.2
7023AB3006NB6-3000°K - CRI>801500 mm5739660601500-3.2
7023AB3003NB3-3000°K - CRI>801500 mm2879660601500-3.2
7023AB3009NL9-3000°K - CRI>801000 mm7658560601000-2.2
7023AB3006NL6-3000°K - CRI>801000 mm5739660601000-2.2
7023AB3003NL3-3000°K - CRI>801000 mm2879660601000-2.2
7023AB3009NM9-3000°K - CRI>80500 mm765856060500-1.2
7023AB3006NM6-3000°K - CRI>80500 mm573966060500-1.2
