art.-7023-boston-am-ab-antracite

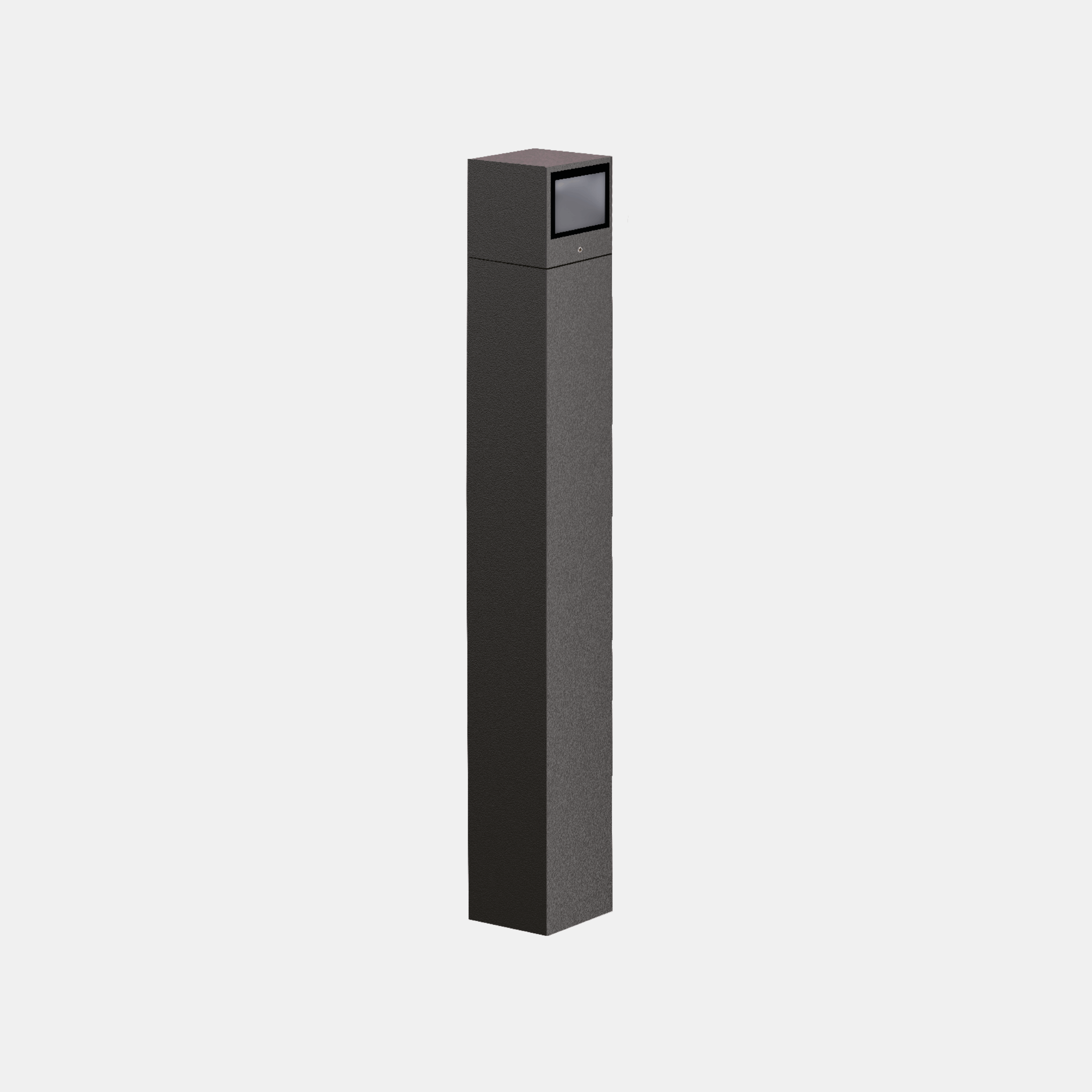

BOSTON/AM

Apparecchio led da esterno per installazione a terra. Corpo in alluminio pressofuso con struttura in alluminio estruso, verniciato con polveri epossidiche, colore antracite. Alimentatore elettronico 220-240V, 50/60 Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Architectural Outdoor, art. 7023 Boston
Codici: 24
Colore: Antracite

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7023AM27= 2700°K (CRI >80)03NS= 250 mm
30= 3000°K (CRI >80)04NM= 500 mm
40= 4000°K (CRI >80)NL= 1000 mm
NB = 1500 mm

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7023AM2704NB4.5-2700°K - CRI>801500 mm3708260601500-3.2
7023AM2703NB3-2700°K - CRI>801500 mm2789360601500-3.2
7023AM2704NL4.5-2700°K - CRI>801000 mm3708260601000-2.2
7023AM2703NL3-2700°K - CRI>801000 mm2789360601000-2.2
7023AM2704NM4.5-2700°K - CRI>80500 mm370826060500-1.2
7023AM2703NM3-2700°K - CRI>80500 mm278936060500-1.2
7023AM2704NS4.5-2700°K - CRI>80250 mm370826060250-0.8
7023AM2703NS3-2700°K - CRI>80250 mm278936060250-0.8
7023AM3004NB4.5-3000°K - CRI>801500 mm3828560601500-3.2
7023AM3003NB3-3000°K - CRI>801500 mm2879660601500-3.2
7023AM3004NL4.5-3000°K - CRI>801000 mm3828560601000-2.2
7023AM3003NL3-3000°K - CRI>801000 mm2879660601000-2.2
7023AM3004NM4.5-3000°K - CRI>80500 mm382856060500-1.2
7023AM3003NM3-3000°K - CRI>80500 mm287966060500-1.2
7023AM3004NS4.5-3000°K - CRI>80250 mm382856060250-0.8
7023AM3003NS3-3000°K - CRI>80250 mm287966060250-0.8
7023AM4004NB4.5-4000°K - CRI>801500 mm4099160601500-3.2
7023AM4003NB3-4000°K - CRI>801500 mm30710260601500-3.2
7023AM4004NL4.5-4000°K - CRI>801000 mm4099160601000-2.2
7023AM4003NL3-4000°K - CRI>801000 mm30710260601000-2.2

Accessori
