art.-7024-stilo-ab-bianco

STILO/AB

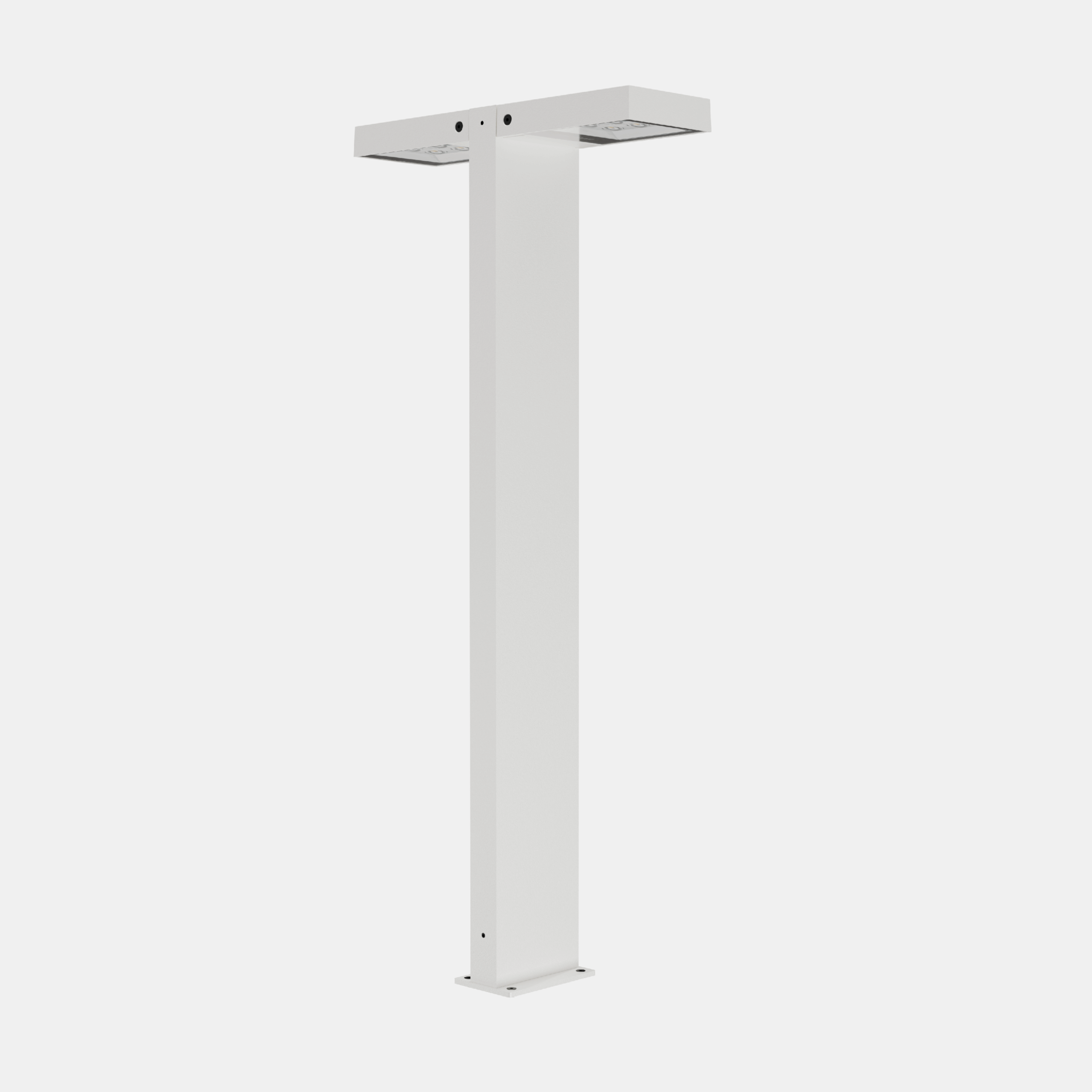

Apparecchio led da esterno per installazione a terra. Corpo in alluminio pressofuso con struttura in alluminio estruso, verniciato con polveri epossidiche, colore bianco opaco. Scheda led in tensione di rete 220-240V, 50/60 Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Architectural Outdoor, art. 7024 Stilo
Codici: 27
Colore: Bianco opaco

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7024AB27= 2700°K (CRI >80)10B1= 500 mm
30= 3000°K (CRI >80)20B2 = 1000 mm
40= 4000°K (CRI >80)30B3 = 1500 mm

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7024AB2730B330-2700°K - CRI>801500 mm3302110953051500-4.5
7024AB2720B320-2700°K - CRI>801500 mm2202110953051500-4.5
7024AB2710B310-2700°K - CRI>801500 mm1101110953051500-4.5
7024AB2730B230-2700°K - CRI>801000 mm3302110953051000-3.1
7024AB2720B220-2700°K - CRI>801000 mm2202110953051000-3.1
7024AB2710B210-2700°K - CRI>801000 mm1101110953051000-3.1
7024AB2730B130-2700°K - CRI>80500 mm330211095305500-2.2
7024AB2720B120-2700°K - CRI>80500 mm220211095305500-2.2
7024AB2710B110-2700°K - CRI>80500 mm110111095305500-2.2
7024AB3030B330-3000°K - CRI>801500 mm3459115953051500-4.5
7024AB3020B320-3000°K - CRI>801500 mm2306115953051500-4.5
7024AB3010B310-3000°K - CRI>801500 mm1154115953051500-4.5
7024AB3030B230-3000°K - CRI>801000 mm3459115953051000-3.1
7024AB3020B220-3000°K - CRI>801000 mm2306115953051000-3.1
7024AB3010B210-3000°K - CRI>801000 mm1154115953051000-3.1
7024AB3030B130-3000°K - CRI>80500 mm345911595305500-2.2
7024AB3020B120-3000°K - CRI>80500 mm230611595305500-2.2
7024AB3010B110-3000°K - CRI>80500 mm115411595305500-2.2
7024AB4030B330-4000°K - CRI>801500 mm3487116953051500-4.5
7024AB4020B320-4000°K - CRI>801500 mm2325116953051500-4.5
