STILO/AM

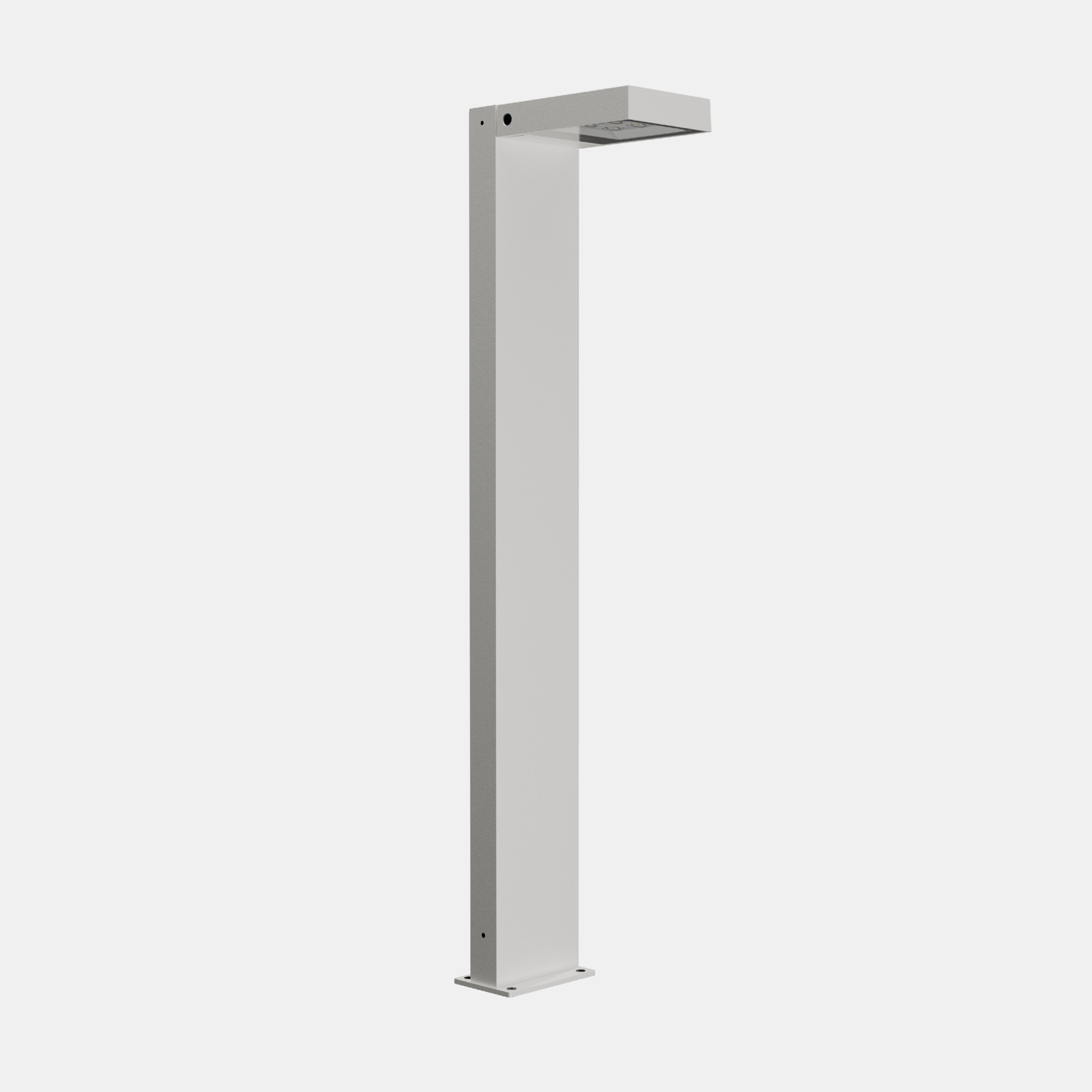

Apparecchio led da esterno per installazione a terra. Corpo in alluminio pressofuso con struttura in alluminio estruso, verniciato con polveri epossidiche, colore bianco opaco. Scheda led in tensione di rete 220-240V, 50/60 Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Architectural Outdoor, art. 7024 Stilo
Codici: 27
Colore: Bianco opaco

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7024AM27= 2700°K (CRI >80)5B1= 500 mm
30= 3000°K (CRI >80)10B2 = 1000 mm
40= 4000°K (CRI >80)15B3 = 1500 mm

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7024AM2715B315-2700°K - CRI>801500 mm1652110951651500-3.7
7024AM2710B310-2700°K - CRI>801500 mm1101110951651500-3.7
7024AM2705B35-2700°K - CRI>801500 mm550110951651500-3.7
7024AM2715B215-2700°K - CRI>801000 mm1652110951651000-2.5
7024AM2710B210-2700°K - CRI>801000 mm1101110951651000-2.5
7024AM2705B25-2700°K - CRI>801000 mm550110951651000-2.5
7024AM2715B115-2700°K - CRI>80500 mm165211095165500-1.8
7024AM2710B110-2700°K - CRI>80500 mm110111095165500-1.8
7024AM2705B15-2700°K - CRI>80500 mm55011095165500-1.8
7024AM3015B315-3000°K - CRI>801500 mm1730115951651500-3.7
7024AM3010B310-3000°K - CRI>801500 mm1154115951651500-3.7
7024AM3005B35-3000°K - CRI>801500 mm576115951651500-3.7
7024AM3015B215-3000°K - CRI>801000 mm1730115951651000-2.5
7024AM3010B210-3000°K - CRI>801000 mm1154115951651000-2.5
7024AM3005B25-3000°K - CRI>801000 mm576115951651000-2.5
7024AM3015B115-3000°K - CRI>80500 mm173011595165500-1.8
7024AM3010B110-3000°K - CRI>80500 mm115411595165500-1.8
7024AM3005B15-3000°K - CRI>80500 mm57611595165500-1.8
7024AM4015B315-4000°K - CRI>801500 mm1744116951651500-3.7
7024AM4010B310-4000°K - CRI>801500 mm1163116951651500-3.7
