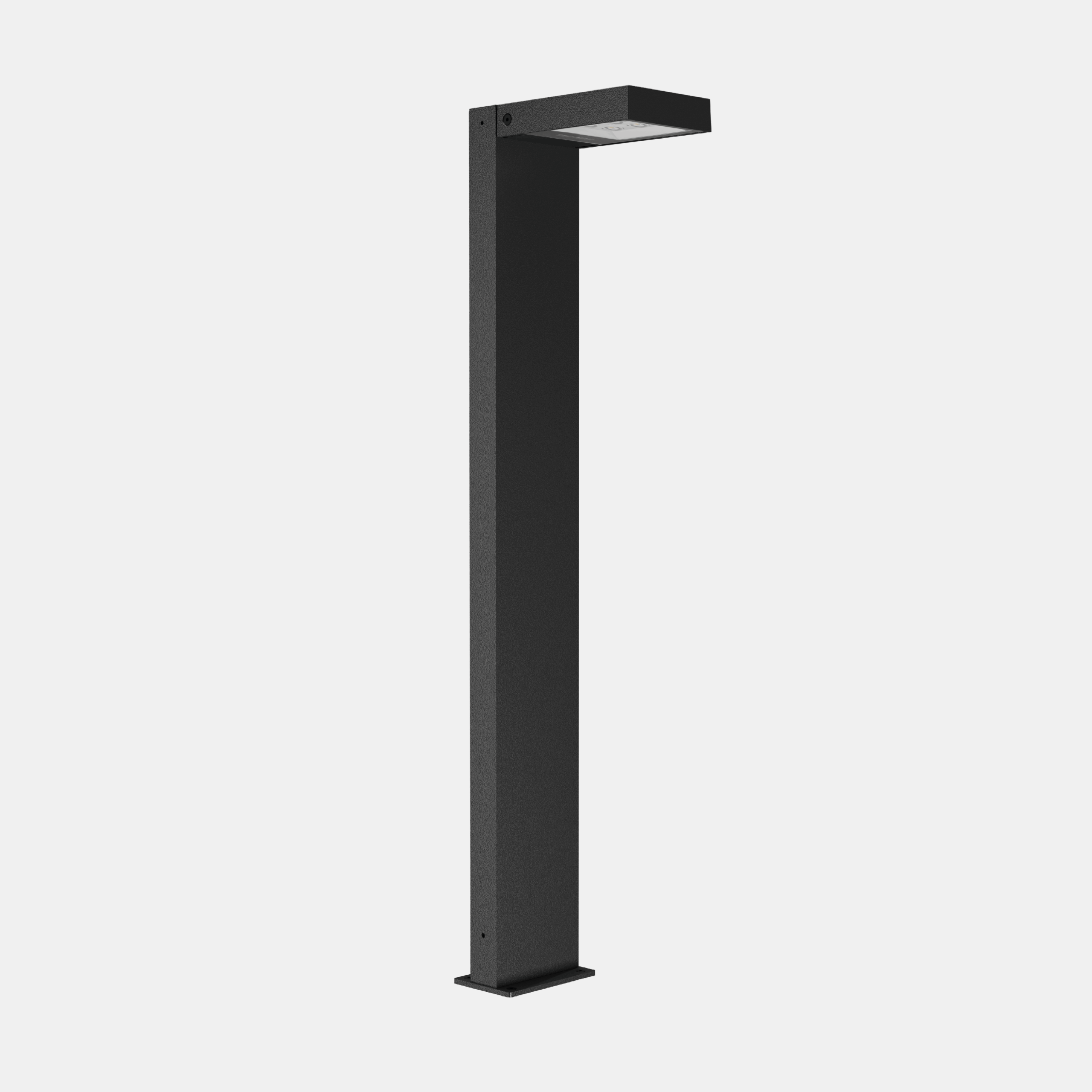

STILO/AM

Apparecchio led da esterno per installazione a terra. Corpo in alluminio pressofuso con struttura in alluminio estruso, verniciato con polveri epossidiche, colore antracite. Scheda led in tensione di rete 220-240V, 50/60 Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.

Categorie: Led, Architectural Outdoor, Stilo

Codici: 27

Colore: Antracite

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7024	AM	27	= 2700°K (CRI >80)	5	N1	= 500 mm
		30	= 3000°K (CRI >80)	10	N2	= 1000 mm
		40	= 4000°K (CRI >80)	15	N3	= 1500 mm

Codici

Codice	W tot.	mA	°K - CRI	Opzioni	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7024AM2715N3	15	-	2700°K - CRI>80	1500 mm	1652	110	95	165	1500	-	3.7
7024AM2710N3	10	-	2700°K - CRI>80	1500 mm	1101	110	95	165	1500	-	3.7
7024AM2705N3	5	-	2700°K - CRI>80	1500 mm	550	110	95	165	1500	-	3.7
7024AM2715N2	15	-	2700°K - CRI>80	1000 mm	1652	110	95	165	1000	-	2.5
7024AM2710N2	10	-	2700°K - CRI>80	1000 mm	1101	110	95	165	1000	-	2.5
7024AM2705N2	5	-	2700°K - CRI>80	1000 mm	550	110	95	165	1000	-	2.5
7024AM2715N1	15	-	2700°K - CRI>80	500 mm	1652	110	95	165	500	-	1.8
7024AM2710N1	10	-	2700°K - CRI>80	500 mm	1101	110	95	165	500	-	1.8
7024AM2705N1	5	-	2700°K - CRI>80	500 mm	550	110	95	165	500	-	1.8
7024AM3015N3	15	-	3000°K - CRI>80	1500 mm	1730	115	95	165	1500	-	3.7
7024AM3010N3	10	-	3000°K - CRI>80	1500 mm	1154	115	95	165	1500	-	3.7
7024AM3005N3	5	-	3000°K - CRI>80	1500 mm	576	115	95	165	1500	-	3.7
7024AM3015N2	15	-	3000°K - CRI>80	1000 mm	1730	115	95	165	1000	-	2.5
7024AM3010N2	10	-	3000°K - CRI>80	1000 mm	1154	115	95	165	1000	-	2.5
7024AM3005N2	5	-	3000°K - CRI>80	1000 mm	576	115	95	165	1000	-	2.5
7024AM3015N1	15	-	3000°K - CRI>80	500 mm	1730	115	95	165	500	-	1.8
7024AM3010N1	10	-	3000°K - CRI>80	500 mm	1154	115	95	165	500	-	1.8
7024AM3005N1	5	-	3000°K - CRI>80	500 mm	576	115	95	165	500	-	1.8
7024AM4015N3	15	-	4000°K - CRI>80	1500 mm	1744	116	95	165	1500	-	3.7
7024AM4010N3	10	-	4000°K - CRI>80	1500 mm	1163	116	95	165	1500	-	3.7
