art.-7102-magic-2-mr-cr-sr-tr-ar-rr

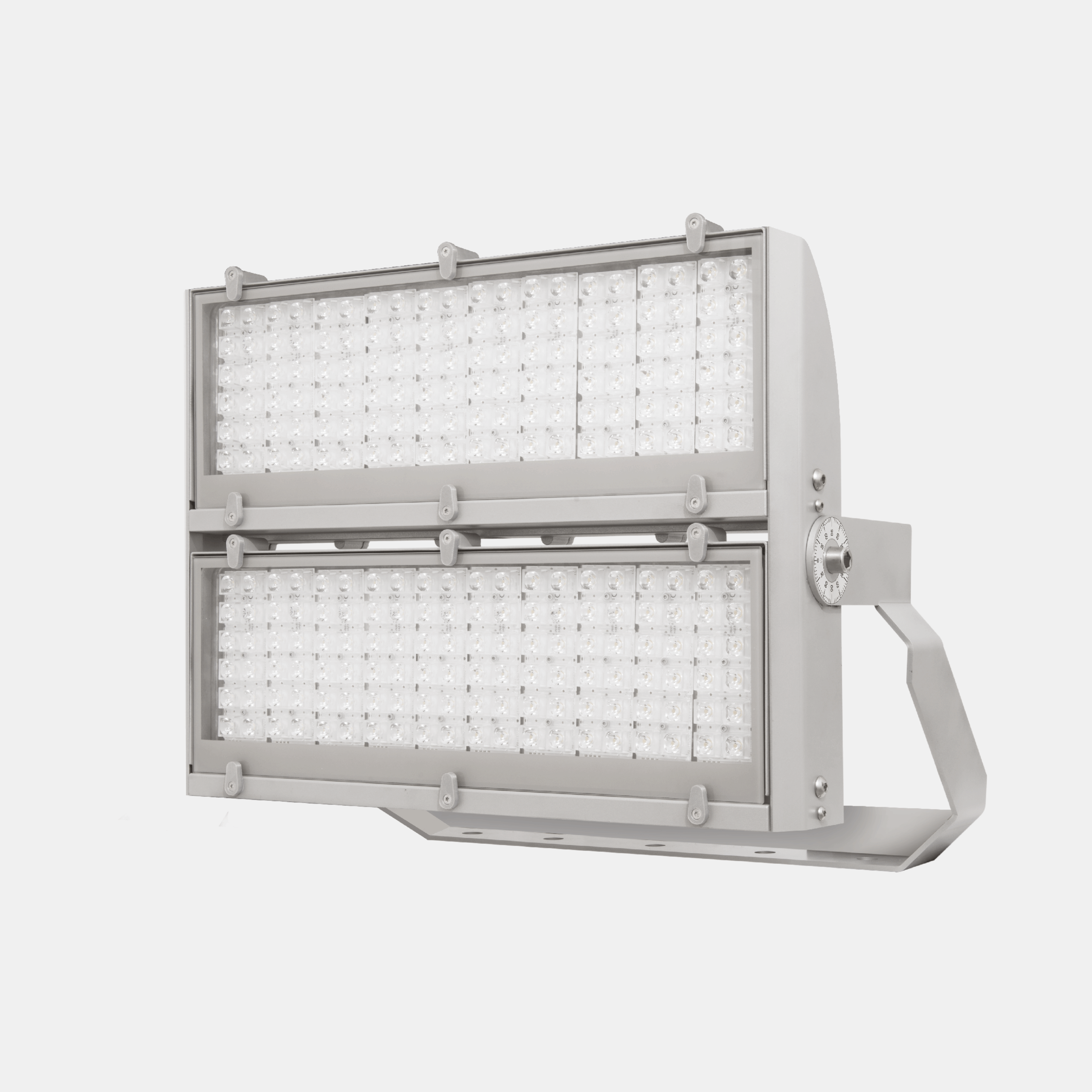

MAGIC 2/RR

Proiettore led per interni ed esterni adatto per l’illuminazione di grandi aree ed impianti sportivi. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore silver, driver elettronico 220-240V 50/60Hz. Prodotto in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Proiettori, art. 7102 Magic 2
Codici: 90
Colore: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7102RR4= 4000°K (CRI >70)480GL= on/off
7= 5700°K (CRI >70)550GM= 1-10v
R= 5700°K (CRI >90)600GD= dali
900G4= input 400Vac
960GX= 1-10v + dmx
MG= mezzanotte virtuale

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7102RRR960MG960-5700°K - CRI>90mezzanotte virtuale99037103655350550-21.5
7102RRR900MG900-5700°K - CRI>90mezzanotte virtuale95960107655350550-21.5
7102RRR600MG600-5700°K - CRI>90mezzanotte virtuale69848116655350550-21.5
7102RRR550MG550-5700°K - CRI>90mezzanotte virtuale63305115655350550-21.5
7102RRR480MG480-5700°K - CRI>90mezzanotte virtuale56576118655350550-21.5
7102RRR960GX960-5700°K - CRI>901-10v + dmx99037103655350550-21.5
7102RRR900GX900-5700°K - CRI>901-10v + dmx95960107655350550-21.5
7102RRR600GX600-5700°K - CRI>901-10v + dmx69848116655350550-21.5
7102RRR550GX550-5700°K - CRI>901-10v + dmx63305115655350550-21.5
7102RRR480GX480-5700°K - CRI>901-10v + dmx56576118655350550-21.5
7102RRR960G4960-5700°K - CRI>90input 400Vac99037103655350550-21.5
7102RRR900G4900-5700°K - CRI>90input 400Vac95960107655350550-21.5
7102RRR600G4600-5700°K - CRI>90input 400Vac69848116655350550-21.5
7102RRR550G4550-5700°K - CRI>90input 400Vac63305115655350550-21.5
7102RRR480G4480-5700°K - CRI>90input 400Vac56576118655350550-21.5
7102RRR960GD960-5700°K - CRI>90dali99037103655350550-21.5
7102RRR900GD900-5700°K - CRI>90dali95960107655350550-21.5
7102RRR600GD600-5700°K - CRI>90dali69848116655350550-21.5
7102RRR550GD550-5700°K - CRI>90dali63305115655350550-21.5
7102RRR480GD480-5700°K - CRI>90dali56576118655350550-21.5
