MIR/S5

(Ottica Simmetrica 90°)

Riflettore led industriale e commerciale a sospensione. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore silver. Lente IP66 in policarbonato, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.

Categorie: Led, MIR - 8150, Industria, art. 8150 Mir

Codici: 440

Colore: Silver

Estratto Catalogo

Istruzioni di installazione

Dati fotometrici

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
8150	S5	3	= 3000°K (CRI >80)	070	150	GL	= on/off
		4	= 4000°K (CRI >80)	080	160	GD	= dali
		5	= 5000°K (CRI >80)	089	170	D1	= dali + em. 1h
		9	= 4000°K (CRI >90)	090	180	G1	= em. 1h
				098	190	G3	= em. 3h
				100	195
				110	200
				120	220
				130	230
				140	240
				148	245

Codici

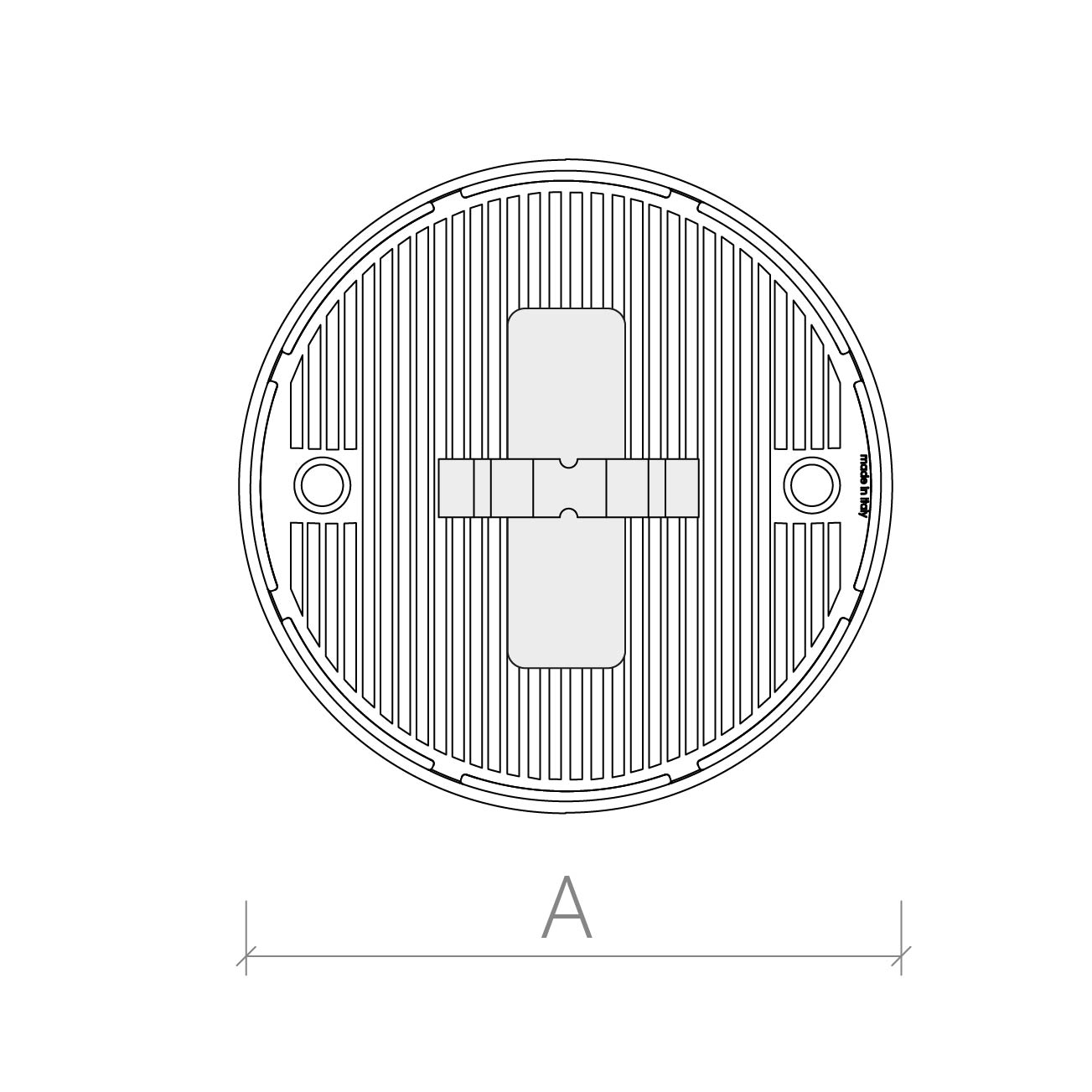

Codice	W tot.	mA	°K - CRI	Opzioni	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
8150S54080GL	80	-	4000°K - CRI>80	on/off	14513	181	365	-	130	-	4.8
8150S54090GL	90	-	4000°K - CRI>80	on/off	16339	182	365	-	130	-	4.8
8150S54098GL	98	-	4000°K - CRI>80	on/off	17590	179	365	-	130	-	4.8
8150S54110GL	110	-	4000°K - CRI>80	on/off	18973	172	365	-	130	-	4.8
8150S54120GL	120	-	4000°K - CRI>80	on/off	20348	170	365	-	130	-	4.8
8150S54130GL	130	-	4000°K - CRI>80	on/off	22166	171	365	-	130	-	4.8
8150S54140GL	140	-	4000°K - CRI>80	on/off	24487	175	365	-	130	-	4.8
8150S54148GL	148	-	4000°K - CRI>80	on/off	24936	168	365	-	130	-	4.8
8150S54160GL	160	-	4000°K - CRI>80	on/off	26652	167	365	-	130	-	4.8
8150S54170GL	170	-	4000°K - CRI>80	on/off	28423	167	365	-	130	-	4.8
8150S54180GL	180	-	4000°K - CRI>80	on/off	30182	168	365	-	130	-	4.8
8150S54190GL	190	-	4000°K - CRI>80	on/off	31493	166	365	-	130	-	4.8
8150S54195GL	195	-	4000°K - CRI>80	on/off	33704	173	365	-	130	-	4.8
8150S54220GL	220	-	4000°K - CRI>80	on/off	35817	163	365	-	130	-	4.8
8150S54230GL	230	-	4000°K - CRI>80	on/off	37527	163	365	-	130	-	4.8
8150S54245GL	245	-	4000°K - CRI>80	on/off	39311	160	365	-	130	-	5.2
8150S54070GL	70	-	4000°K - CRI>80	on/off	11975	171	365	-	130	-	4.8
8150S54089GL	89	-	4000°K - CRI>80	on/off	15212	171	365	-	130	-	4.8
8150S54100GL	100	-	4000°K - CRI>80	on/off	17116	171	365	-	130	-	4.8
8150S54150GL	150	-	4000°K - CRI>80	on/off	23873	159	365	-	130	-	4.8
