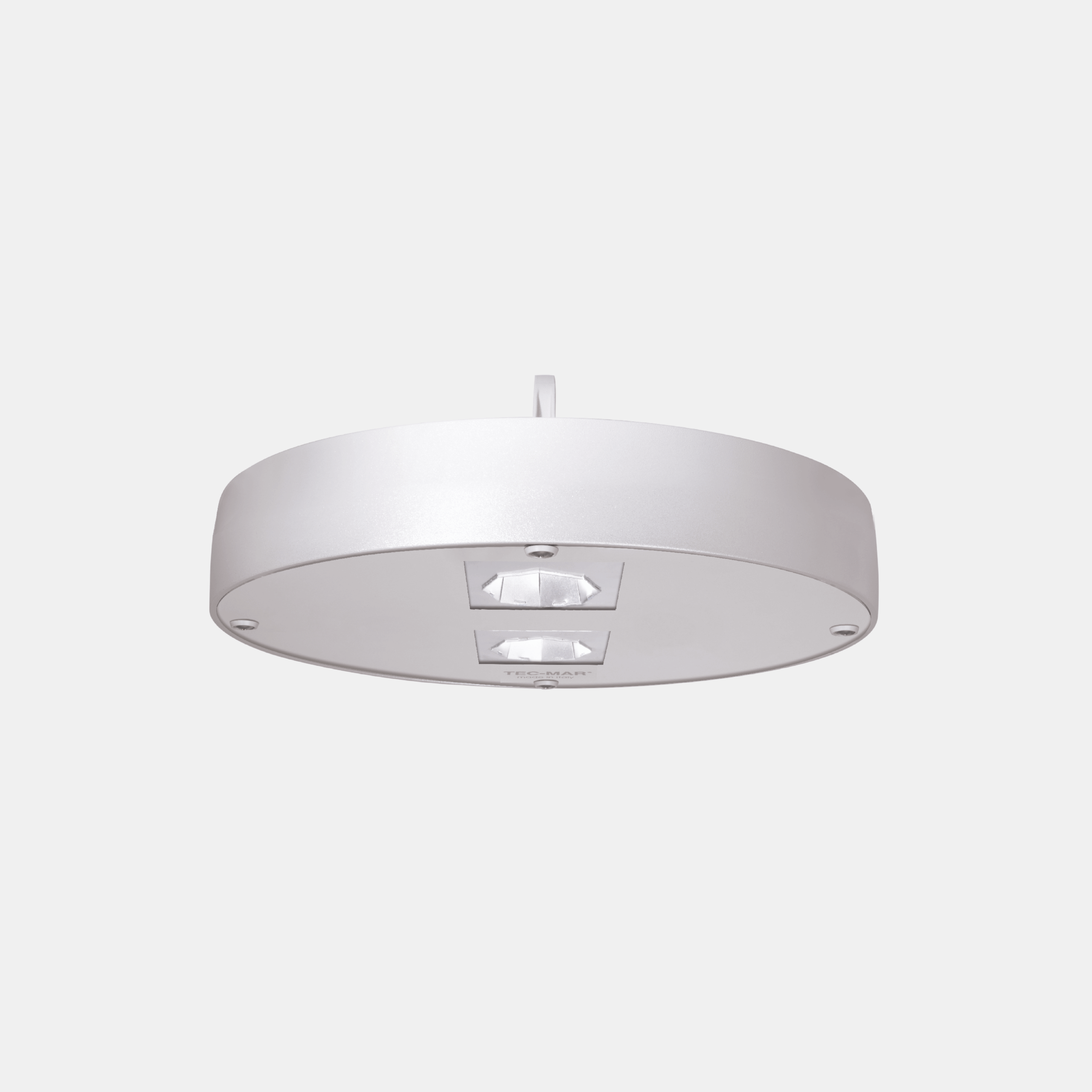

PIER/CU

Riflettore led industriale e commerciale a sospensione. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore silver, vetro temperato trasparente spessore 4 mm, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Industriali, art. 8400 Pier
Codici: 336
Colore: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8400CU3= 3000°K (CRI >80)040GL= on/off
4= 4000°K (CRI >80)058GD= dali
5= 5000°K (CRI >80)065D1= dali + em. 1h
9= 4000°K (CRI >90)080G1= em. 1h
090G3= em. 3h
100VA= vetro acidato
118GR= radar sensor on/off
130
140
150
170
190

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8400CU9190GR190-4000°K - CRI>90radar sensor on/off23273122365-150-5.5
8400CU9170GR170-4000°K - CRI>90radar sensor on/off19533115365-150-5.5
8400CU9150GR150-4000°K - CRI>90radar sensor on/off17336116365-150-5.5
8400CU9140GR140-4000°K - CRI>90radar sensor on/off16772120365-150-5.5
8400CU9130GR130-4000°K - CRI>90radar sensor on/off15868122365-150-5.5
8400CU9118GR118-4000°K - CRI>90radar sensor on/off14978127365-150-5.5
8400CU9100GR100-4000°K - CRI>90radar sensor on/off12214122365-150-5.5
8400CU9090GR90-4000°K - CRI>90radar sensor on/off11450127365-150-5.5
8400CU9080GR80-4000°K - CRI>90radar sensor on/off10268128365-150-5.5
8400CU9065GR65-4000°K - CRI>90radar sensor on/off8247127365-150-5.5
8400CU9058GR58-4000°K - CRI>90radar sensor on/off7415128365-150-5.5
8400CU9040GR40-4000°K - CRI>90radar sensor on/off4523113365-150-5.5
8400CU9190VA190-4000°K - CRI>90vetro acidato23273122365-150-5.5
8400CU9170VA170-4000°K - CRI>90vetro acidato19533115365-150-5.5
8400CU9150VA150-4000°K - CRI>90vetro acidato17336116365-150-5.5
8400CU9140VA140-4000°K - CRI>90vetro acidato16772120365-150-5.5
8400CU9130VA130-4000°K - CRI>90vetro acidato15868122365-150-5.5
8400CU9118VA118-4000°K - CRI>90vetro acidato14978127365-150-5.5
8400CU9100VA100-4000°K - CRI>90vetro acidato12214122365-150-5.5
8400CU9090VA90-4000°K - CRI>90vetro acidato11450127365-150-5.5
