art.-8400-pier-el

PIER/EL

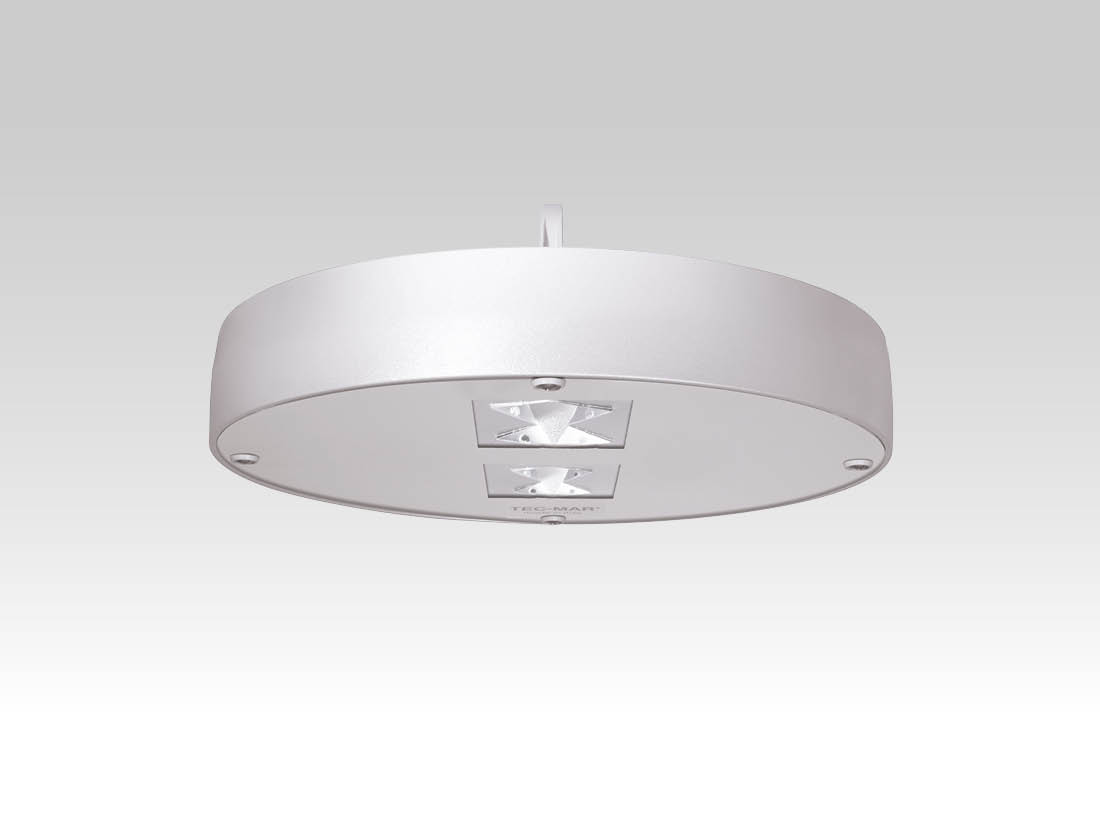

Riflettore led industriale e commerciale a sospensione. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore silver, vetro temperato trasparente spessore 4 mm, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Industriali, art. 8400 Pier
Codici: 336
Colore: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8400EL3= 3000°K (CRI >80)040GL= on/off
4= 4000°K (CRI >80)058GD= dali
5= 5000°K (CRI >80)065D1= dali + em. 1h
9= 4000°K (CRI >90)080G1= em. 1h
090G3= em. 3h
100VA= vetro acidato
118GR= radar sensor on/off
130
140
150
170
190

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8400EL9190GR190-4000°K - CRI>90radar sensor on/off24312128365-150-5.5
8400EL9170GR170-4000°K - CRI>90radar sensor on/off20405120365-150-5.5
8400EL9150GR150-4000°K - CRI>90radar sensor on/off18111121365-150-5.5
8400EL9140GR140-4000°K - CRI>90radar sensor on/off17521125365-150-5.5
8400EL9130GR130-4000°K - CRI>90radar sensor on/off16576128365-150-5.5
8400EL9118GR118-4000°K - CRI>90radar sensor on/off15646133365-150-5.5
8400EL9100GR100-4000°K - CRI>90radar sensor on/off12760128365-150-5.5
8400EL9090GR90-4000°K - CRI>90radar sensor on/off11961133365-150-5.5
8400EL9080GR80-4000°K - CRI>90radar sensor on/off10726134365-150-5.5
8400EL9065GR65-4000°K - CRI>90radar sensor on/off8614133365-150-5.5
8400EL9058GR58-4000°K - CRI>90radar sensor on/off7745134365-150-5.5
8400EL9040GR40-4000°K - CRI>90radar sensor on/off4730118365-150-5.5
8400EL9190VA190-4000°K - CRI>90vetro acidato24312128365-150-5.5
8400EL9170VA170-4000°K - CRI>90vetro acidato20405120365-150-5.5
8400EL9150VA150-4000°K - CRI>90vetro acidato18111121365-150-5.5
8400EL9140VA140-4000°K - CRI>90vetro acidato17521125365-150-5.5
8400EL9130VA130-4000°K - CRI>90vetro acidato16576128365-150-5.5
8400EL9118VA118-4000°K - CRI>90vetro acidato15646133365-150-5.5
8400EL9100VA100-4000°K - CRI>90vetro acidato12760128365-150-5.5
8400EL9090VA90-4000°K - CRI>90vetro acidato11961133365-150-5.5
