PIER/S5

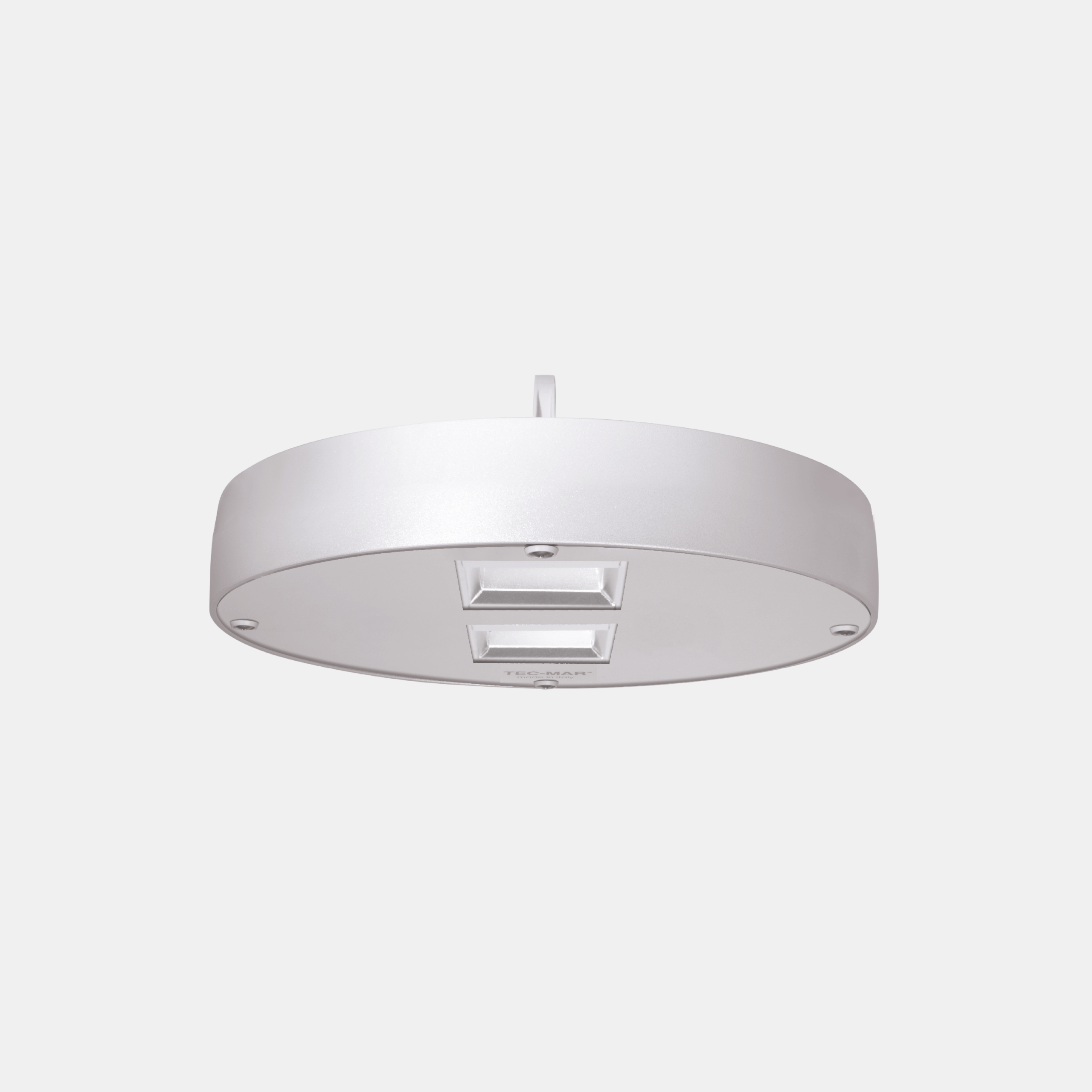

Riflettore led industriale e commerciale a sospensione. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore silver, vetro temperato trasparente spessore 4 mm, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Industriali, art. 8400 Pier
Codici: 336
Colore: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8400S53= 3000°K (CRI >80)040GL= on/off
4= 4000°K (CRI >80)058GD= dali
5= 5000°K (CRI >80)065D1= dali + em. 1h
9= 4000°K (CRI >90)080G1= em. 1h
090G3= em. 3h
100VA= vetro acidato
118GR= radar sensor on/off
130
140
150
170
190

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8400S59190GR190-4000°K - CRI>90radar sensor on/off25213133365-150-5.5
8400S59170GR170-4000°K - CRI>90radar sensor on/off21160124365-150-5.5
8400S59150GR150-4000°K - CRI>90radar sensor on/off18781125365-150-5.5
8400S59140GR140-4000°K - CRI>90radar sensor on/off18170130365-150-5.5
8400S59130GR130-4000°K - CRI>90radar sensor on/off17191132365-150-5.5
8400S59118GR118-4000°K - CRI>90radar sensor on/off16226138365-150-5.5
8400S59100GR100-4000°K - CRI>90radar sensor on/off13232132365-150-5.5
8400S59090GR90-4000°K - CRI>90radar sensor on/off12404138365-150-5.5
8400S59080GR80-4000°K - CRI>90radar sensor on/off11123139365-150-5.5
8400S59065GR65-4000°K - CRI>90radar sensor on/off8934137365-150-5.5
8400S59058GR58-4000°K - CRI>90radar sensor on/off8032138365-150-5.5
8400S59040GR40-4000°K - CRI>90radar sensor on/off4910123365-150-5.5
8400S59190VA190-4000°K - CRI>90vetro acidato25213133365-150-5.5
8400S59170VA170-4000°K - CRI>90vetro acidato21160124365-150-5.5
8400S59150VA150-4000°K - CRI>90vetro acidato18781125365-150-5.5
8400S59140VA140-4000°K - CRI>90vetro acidato18170130365-150-5.5
8400S59130VA130-4000°K - CRI>90vetro acidato17191132365-150-5.5
8400S59118VA118-4000°K - CRI>90vetro acidato16226138365-150-5.5
8400S59100VA100-4000°K - CRI>90vetro acidato13232132365-150-5.5
8400S59090VA90-4000°K - CRI>90vetro acidato12404138365-150-5.5
