art.-8400-pier-su

PIER/SU

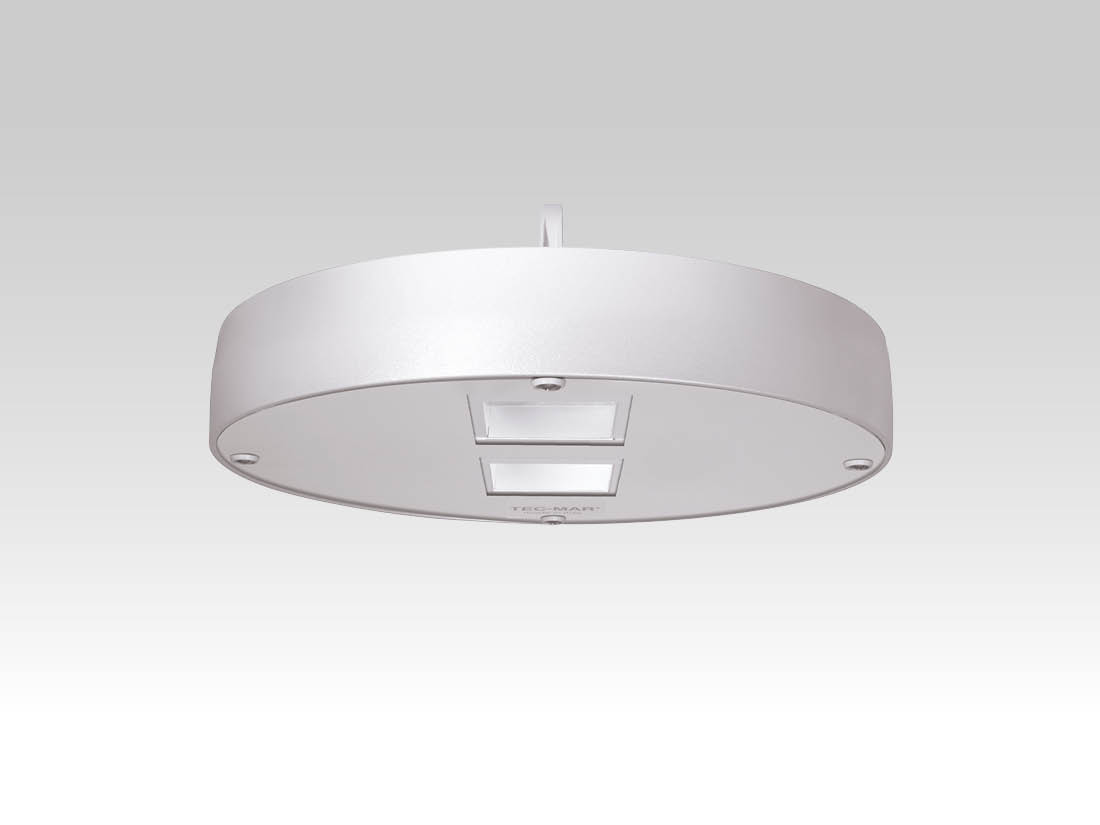

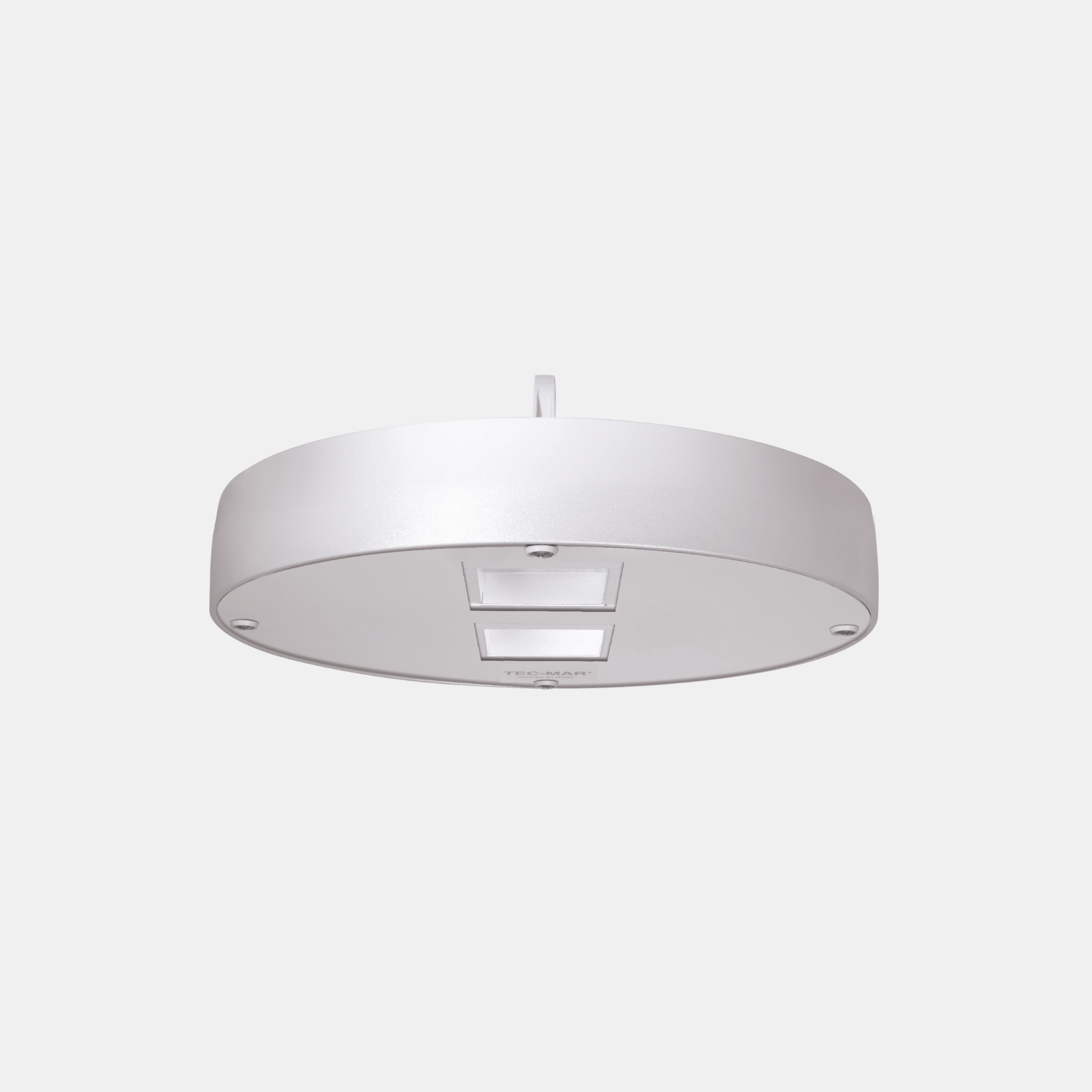

Riflettore led industriale e commerciale a sospensione. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore silver, vetro temperato trasparente spessore 4 mm, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Industriali, art. 8400 Pier
Codici: 336
Colore: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8400SU3= 3000°K (CRI >80)040GL= on/off
4= 4000°K (CRI >80)058GD= dali
5= 5000°K (CRI >80)065D1= dali + em. 1h
9= 4000°K (CRI >90)080G1= em. 1h
090G3= em. 3h
100VA= vetro acidato
118GR= radar sensor on/off
130
140
150
170
190

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8400SU9190GR190-4000°K - CRI>90radar sensor on/off25351133365-150-5.5
8400SU9170GR170-4000°K - CRI>90radar sensor on/off21277125365-150-5.5
8400SU9150GR150-4000°K - CRI>90radar sensor on/off18884126365-150-5.5
8400SU9140GR140-4000°K - CRI>90radar sensor on/off18270131365-150-5.5
8400SU9130GR130-4000°K - CRI>90radar sensor on/off17285133365-150-5.5
8400SU9118GR118-4000°K - CRI>90radar sensor on/off16315138365-150-5.5
8400SU9100GR100-4000°K - CRI>90radar sensor on/off13305133365-150-5.5
8400SU9090GR90-4000°K - CRI>90radar sensor on/off12473139365-150-5.5
8400SU9080GR80-4000°K - CRI>90radar sensor on/off11184140365-150-5.5
8400SU9065GR65-4000°K - CRI>90radar sensor on/off8982138365-150-5.5
8400SU9058GR58-4000°K - CRI>90radar sensor on/off8076139365-150-5.5
8400SU9040GR40-4000°K - CRI>90radar sensor on/off4937123365-150-5.5
8400SU9190VA190-4000°K - CRI>90vetro acidato25351133365-150-5.5
8400SU9170VA170-4000°K - CRI>90vetro acidato21277125365-150-5.5
8400SU9150VA150-4000°K - CRI>90vetro acidato18884126365-150-5.5
8400SU9140VA140-4000°K - CRI>90vetro acidato18270131365-150-5.5
8400SU9130VA130-4000°K - CRI>90vetro acidato17285133365-150-5.5
8400SU9118VA118-4000°K - CRI>90vetro acidato16315138365-150-5.5
8400SU9100VA100-4000°K - CRI>90vetro acidato13305133365-150-5.5
8400SU9090VA90-4000°K - CRI>90vetro acidato12473139365-150-5.5

Accessori
