art.-8401-pier-hp-s2

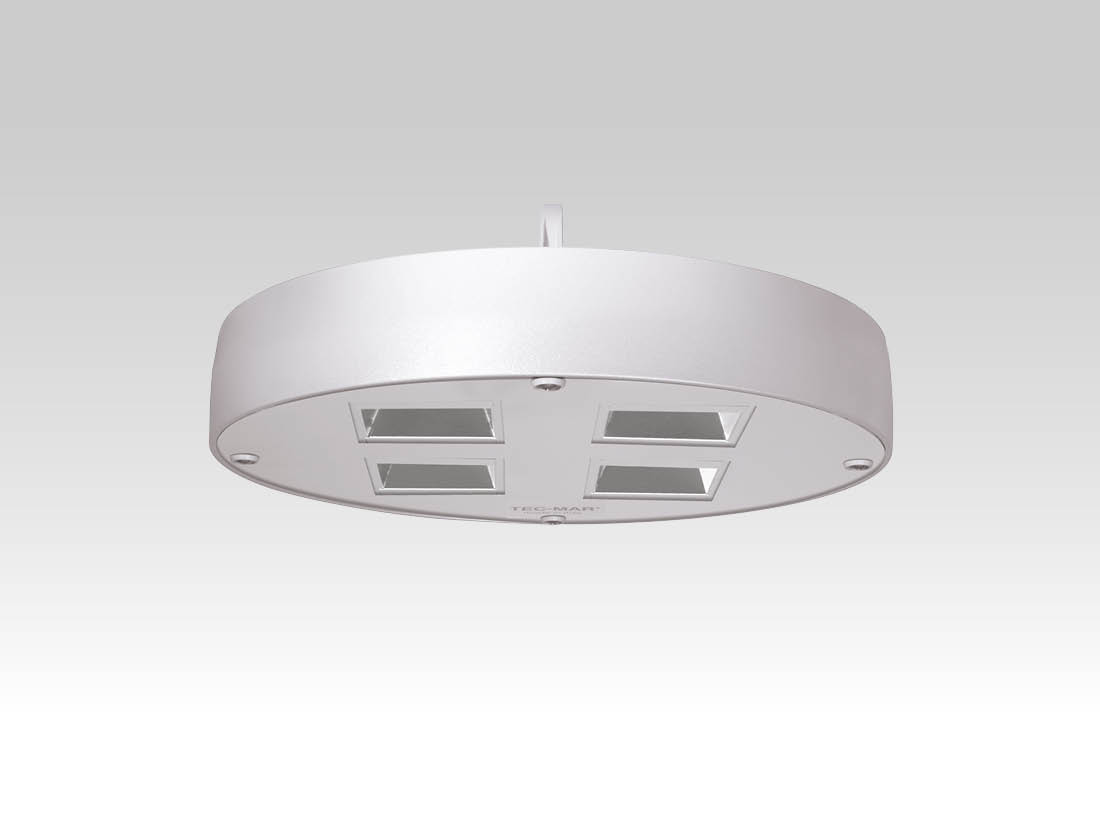

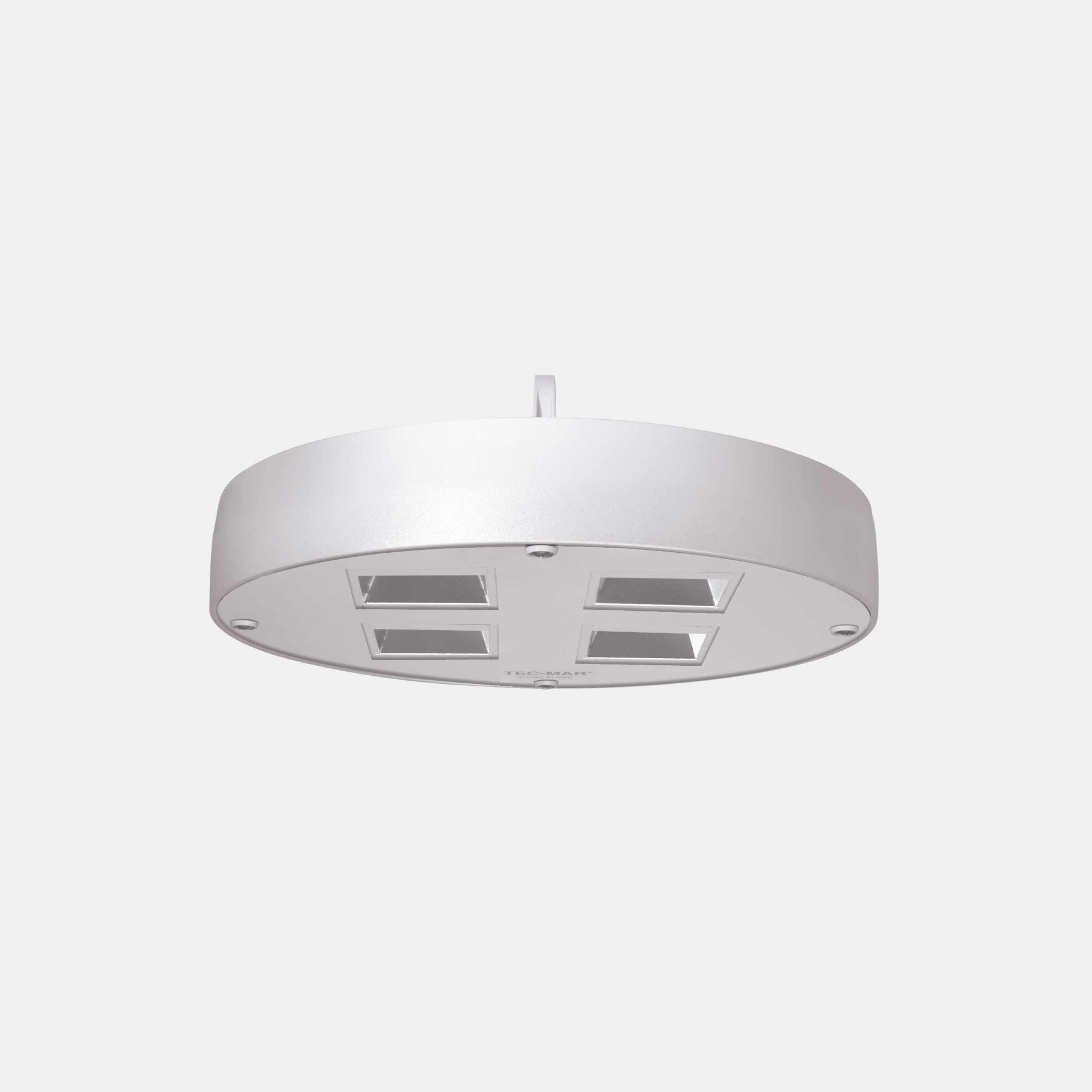

PIER HP/S2

Riflettore led industriale e commerciale a sospensione. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore silver, vetro temperato trasparente spessore 4 mm, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Industriali, art. 8401 Pier HP
Codici: 280
Colore: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8401S23= 3000°K (CRI >80)056GL= on/off
4= 4000°K (CRI >80)080GD= dali
5= 5000°K (CRI >80)090D1= dali + em. 1h
9= 4000°K (CRI >90)100G1= em. 1h
120G3= em. 3h
130VA= vetro acidato
140GR= radar sensor on/off
150
170
190

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8401S29190GR190-4000°K - CRI>90radar sensor on/off26643140365-150-5.5
8401S29170GR170-4000°K - CRI>90radar sensor on/off23117136365-150-5.5
8401S29150GR150-4000°K - CRI>90radar sensor on/off20544137365-150-5.5
8401S29140GR140-4000°K - CRI>90radar sensor on/off19502139365-150-5.5
8401S29130GR130-4000°K - CRI>90radar sensor on/off18315141365-150-5.5
8401S29120GR120-4000°K - CRI>90radar sensor on/off16966141365-150-5.5
8401S29100GR100-4000°K - CRI>90radar sensor on/off14534145365-150-5.5
8401S29090GR90-4000°K - CRI>90radar sensor on/off13212147365-150-5.5
8401S29080GR80-4000°K - CRI>90radar sensor on/off11847148365-150-5.5
8401S29056GR56-4000°K - CRI>90radar sensor on/off8269148365-150-5.5
8401S29190VA190-4000°K - CRI>90vetro acidato26643140365-150-5.5
8401S29170VA170-4000°K - CRI>90vetro acidato23117136365-150-5.5
8401S29150VA150-4000°K - CRI>90vetro acidato20544137365-150-5.5
8401S29140VA140-4000°K - CRI>90vetro acidato19502139365-150-5.5
8401S29130VA130-4000°K - CRI>90vetro acidato18315141365-150-5.5
8401S29120VA120-4000°K - CRI>90vetro acidato16966141365-150-5.5
8401S29100VA100-4000°K - CRI>90vetro acidato14534145365-150-5.5
8401S29090VA90-4000°K - CRI>90vetro acidato13212147365-150-5.5
8401S29080VA80-4000°K - CRI>90vetro acidato11847148365-150-5.5
8401S29056VA56-4000°K - CRI>90vetro acidato8269148365-150-5.5

Accessori
