art.-8402-pier-hp2-cu

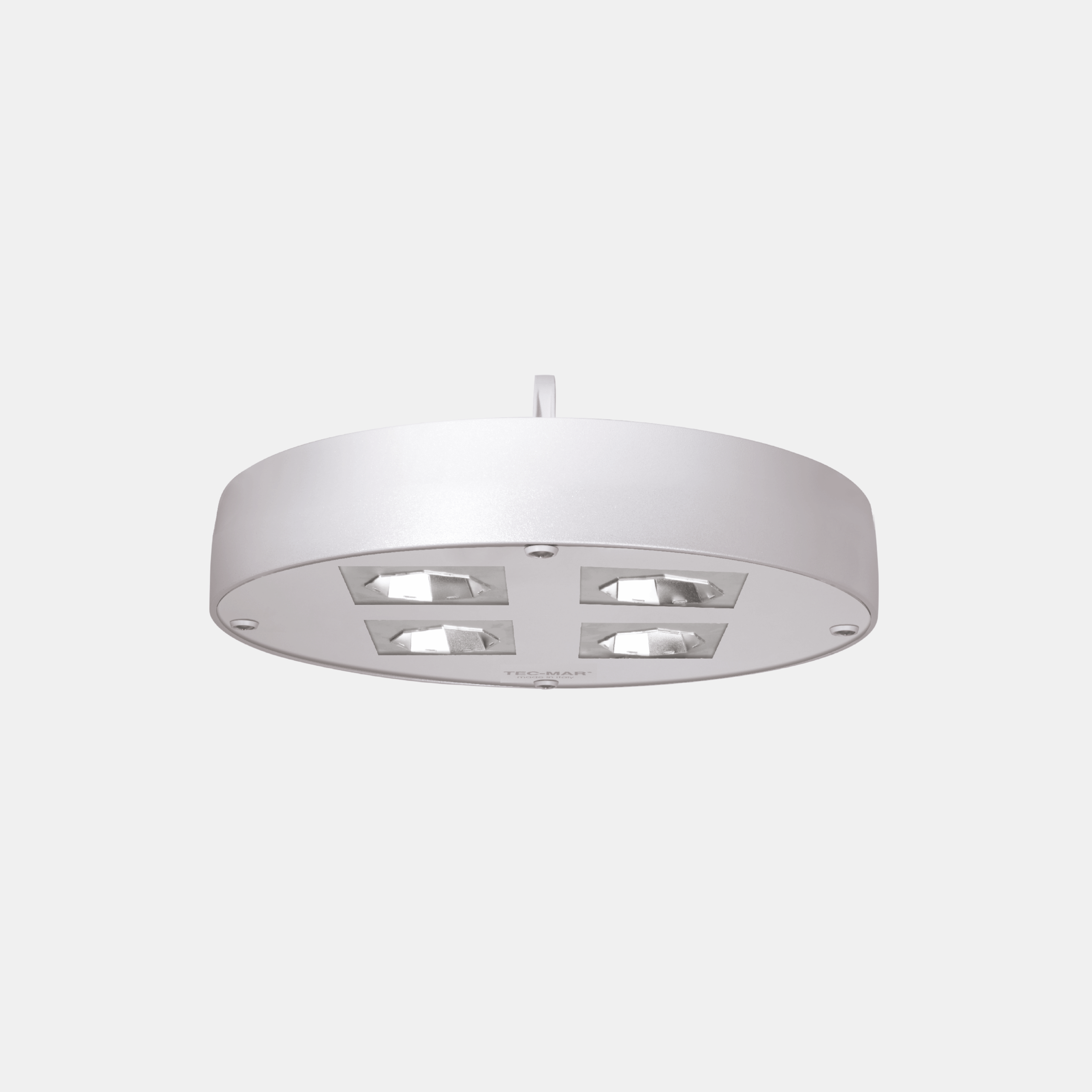

PIER HP2/CU

Riflettore led industriale e commerciale a sospensione. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore silver, vetro temperato trasparente spessore 4 mm, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Prodotto costruito in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Industriali, Pier HP2
Codici: 112
Colore: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
8402CU3= 3000°K (CRI >80)200GL= on/off
4= 4000°K (CRI >80)230GD= dali
5= 5000°K (CRI >80)240D1= dali + em. 1h
9= 4000°K (CRI >90)280G1= em. 1h
G3= em. 3h
VA= vetro acidato
VI= vetro infrangibile

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
8402CU9280VI280-4000°K - CRI>90vetro infrangibile34859124365-150-6.8
8402CU9240VI240-4000°K - CRI>90vetro infrangibile29650124365-150-5.8
8402CU9230VI230-4000°K - CRI>90vetro infrangibile29025126365-150-5.8
8402CU9200VI200-4000°K - CRI>90vetro infrangibile26552133365-150-5.8
8402CU9280VA280-4000°K - CRI>90vetro acidato34859124365-150-6.8
8402CU9240VA240-4000°K - CRI>90vetro acidato29650124365-150-5.8
8402CU9230VA230-4000°K - CRI>90vetro acidato29025126365-150-5.8
8402CU9200VA200-4000°K - CRI>90vetro acidato26552133365-150-5.8
8402CU9280G3280-4000°K - CRI>90em. 3h34859124365-150-6.8
8402CU9240G3240-4000°K - CRI>90em. 3h29650124365-150-5.8
8402CU9230G3230-4000°K - CRI>90em. 3h29025126365-150-5.8
8402CU9200G3200-4000°K - CRI>90em. 3h26552133365-150-5.8
8402CU9280G1280-4000°K - CRI>90em. 1h34859124365-150-6.8
8402CU9240G1240-4000°K - CRI>90em. 1h29650124365-150-5.8
8402CU9230G1230-4000°K - CRI>90em. 1h29025126365-150-5.8
8402CU9200G1200-4000°K - CRI>90em. 1h26552133365-150-5.8
8402CU9280D1280-4000°K - CRI>90dali + em. 1h34859124365-150-6.8
8402CU9240D1240-4000°K - CRI>90dali + em. 1h29650124365-150-5.8
8402CU9230D1230-4000°K - CRI>90dali + em. 1h29025126365-150-5.8
8402CU9200D1200-4000°K - CRI>90dali + em. 1h26552133365-150-5.8

Accessori
