art.-9200-mig-1-t2-me-cp-ad-as-silver

MIG 1/T2

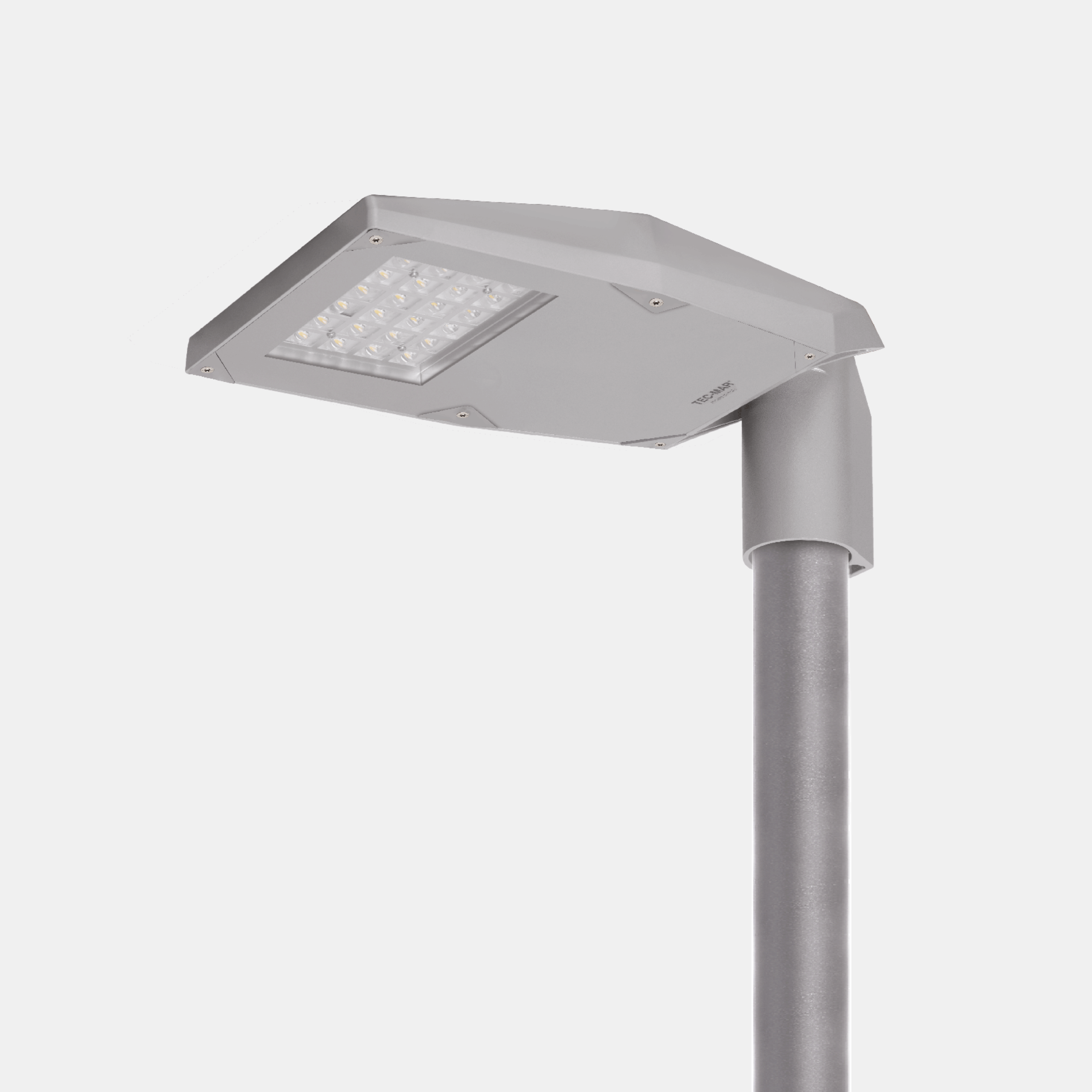

Apparecchio led per illuminazione stradale. Corpo in alluminio pressofuso verniciato con polvere termoindurente poliestere anticorrosione colore silver, vetro temperato trasparente spessore 4 mm, guarnizione in silicone, driver elettronico 220-240V 50/60Hz. Attacco palo incluso nella confezione. Prodotto in conformità alle vigenti norme EN / IEC 60598-1.
Categorie: Led, Stradali, art. 9200 Mig 1
Codici: 480
Colore: Silver

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
9200T222= ambra (CRI >70)0834GL= on/off
30= 3000°K (CRI >70)1236GM= 1-10v
40= 4000°K (CRI >70)1340GD= dali 2
50= 5000°K (CRI >70)1645MG= mezzanotte virtuale
1752ZD= zhaga socket dali D4i
1854ZS= zhaga socket dali D4i sensor
2455
2560
2667
2780

Codici

W tot.
°K - CRI
Opzioni
CodiceW tot.mA°K - CRIOpzioniLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
9200T25080ZS80-5000°K - CRI>70zhaga D4i sensor1227515324541560-4.5
9200T25054ZS54-5000°K - CRI>70zhaga D4i sensor818315224541560-4.5
9200T25040ZS40-5000°K - CRI>70zhaga D4i sensor613815324541560-4.5
9200T25027ZS27-5000°K - CRI>70zhaga D4i sensor409115224541560-4.5
9200T25067ZS67-5000°K - CRI>70zhaga D4i sensor1074716024541560-4.5
9200T25060ZS60-5000°K - CRI>70zhaga D4i sensor968516124541560-4.5
9200T25055ZS55-5000°K - CRI>70zhaga D4i sensor914016624541560-4.5
9200T25052ZS52-5000°K - CRI>70zhaga D4i sensor858816524541560-4.5
9200T25034ZS34-5000°K - CRI>70zhaga D4i sensor572516824541560-4.5
9200T25026ZS26-5000°K - CRI>70zhaga D4i sensor429316524541560-4.5
9200T25017ZS17-5000°K - CRI>70zhaga D4i sensor286216824541560-4.5
9200T25045ZS45-5000°K - CRI>70zhaga D4i sensor774317224541560-4.5
9200T25036ZS36-5000°K - CRI>70zhaga D4i sensor629317524541560-4.5
9200T25024ZS24-5000°K - CRI>70zhaga D4i sensor419617524541560-4.5
9200T25018ZS18-5000°K - CRI>70zhaga D4i sensor314817524541560-4.5
9200T25013ZS13-5000°K - CRI>70zhaga D4i sensor229317624541560-4.5
9200T25025ZS25-5000°K - CRI>70zhaga D4i sensor448818024541560-4.5
9200T25016ZS16-5000°K - CRI>70zhaga D4i sensor299218724541560-4.5
9200T25012ZS12-5000°K - CRI>70zhaga D4i sensor224318724541560-4.5
9200T25008ZS8-5000°K - CRI>70zhaga D4i sensor149618724541560-4.5
