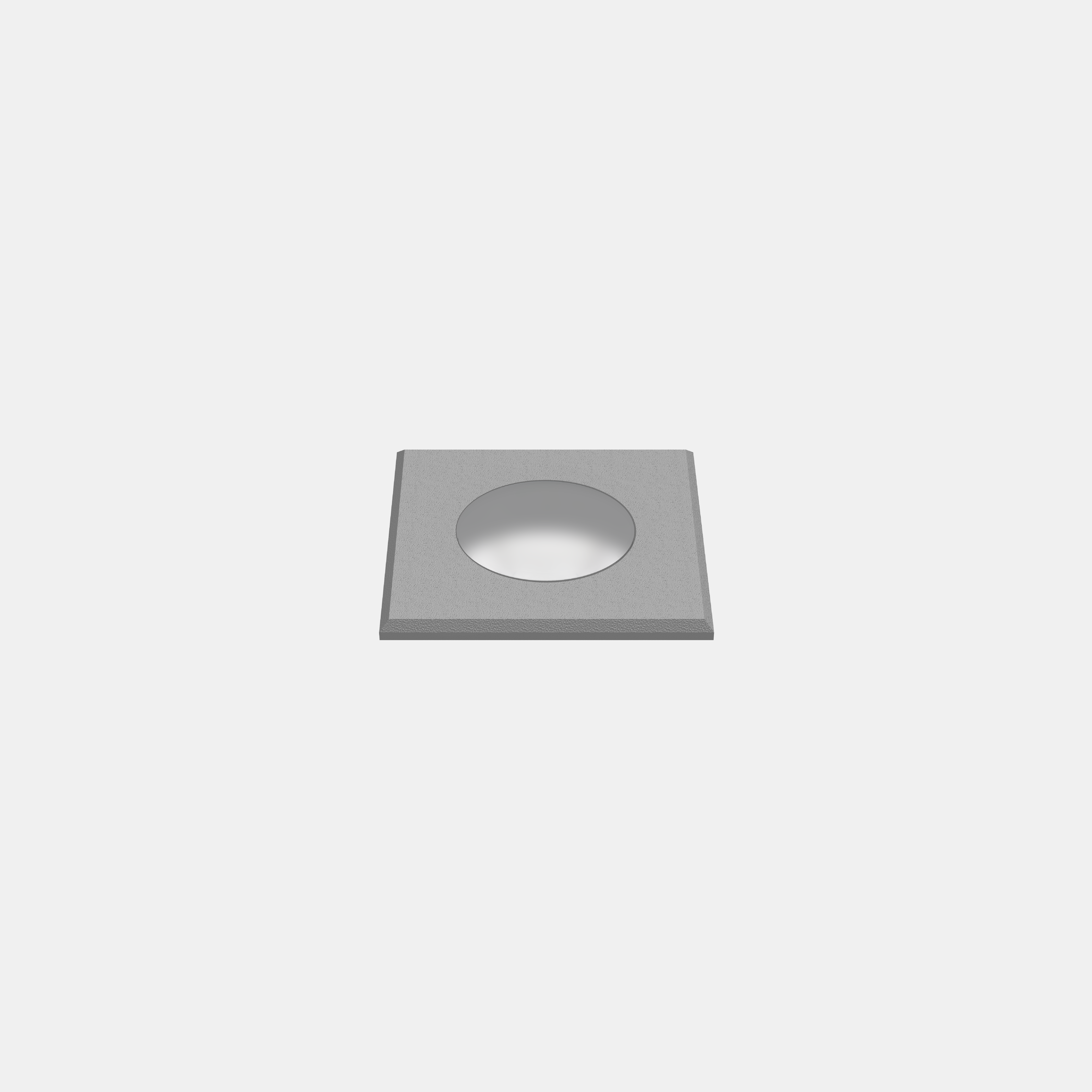

DOT | Mod. Q39

90° wide beam

Floor/ground recessed ledad led fixture. Turned oxidazed aluminum body with black anticorrosion treatment. Aluminium frame painted grey. Extraclear tempered flat glass diffuser, thickness 4 mm. Optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses: 90° wide beam.

Categories: Led, Novelties, DOT, Architectural Outdoor, DOT, DOT

Models: 3

Color: Grey

Catalogue abstract

Installation instructions

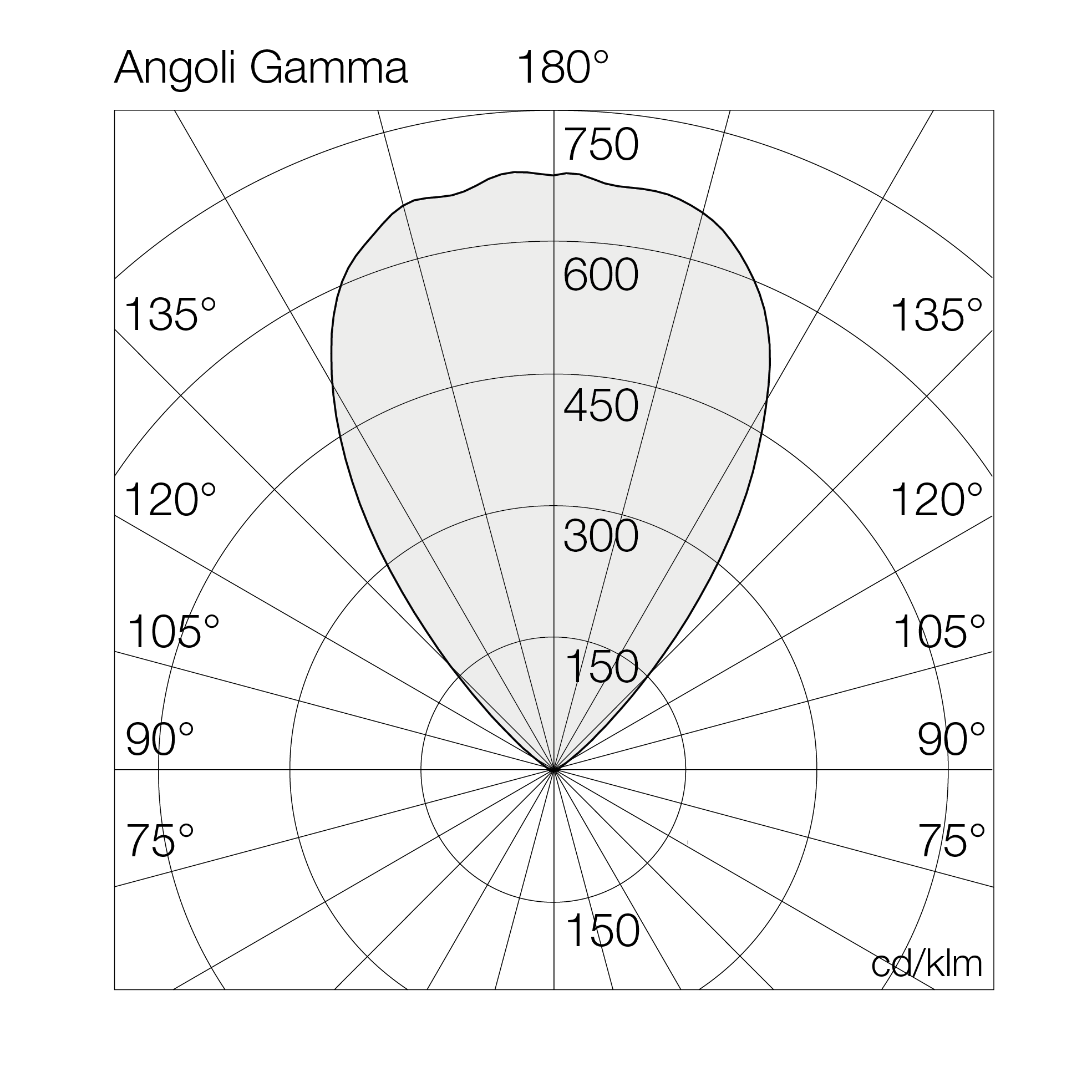

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7070	Q39	97	= 2700°K (CRI >80)	02	GL	= on/off
		93	= 3000°K (CRI >80)
		94	= 4000°K (CRI >80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7070Q399402GL	2	-	4000°K - CRI ≥80	on/off	90	45	35	35	85	-	0.15
7070Q399302GL	2	-	3000°K - CRI ≥80	on/off	83	42	35	35	85	-	0.15
7070Q399702GL	2	-	2700°K - CRI ≥80	on/off	78	39	35	35	85	-	0.15
