DOT | Mod. Q53

30° spot beam

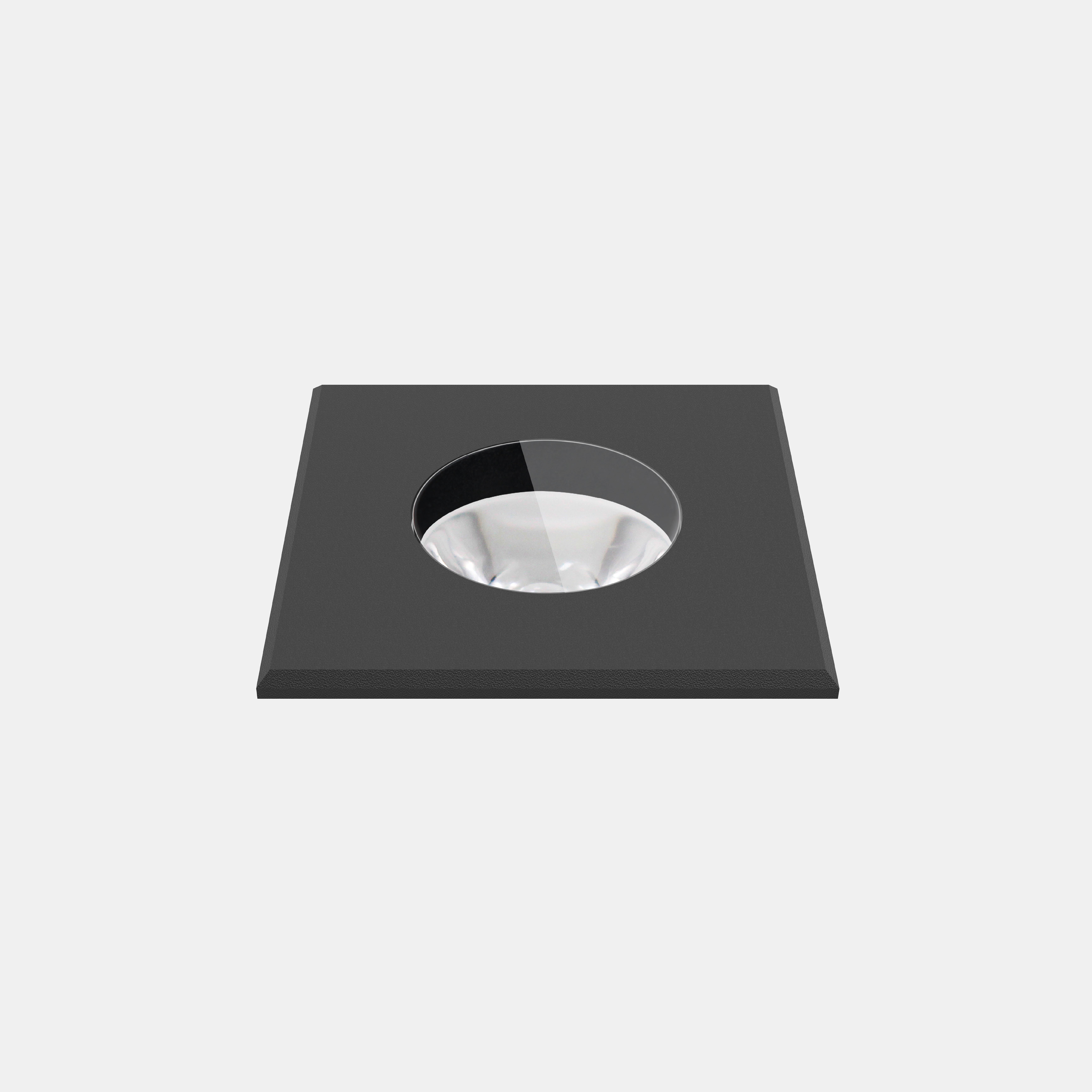

Floor/ground recessed ledad led fixture. Turned oxidazed aluminum body with black anticorrosion treatment. Aluminium frame painted anthracite. Extraclear tempered flat glass diffuser, thickness 4 mm. Optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses: spot optics 30°.

Categories: Led, Novelties, DOT, Architectural Outdoor, DOT, DOT

Models: 3

Color: Anthracite

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7070	Q53	97	= 2700°K (CRI >80)	06	NL	= on/off
		93	= 3000°K (CRI >80)
		94	= 4000°K (CRI >80)

Models

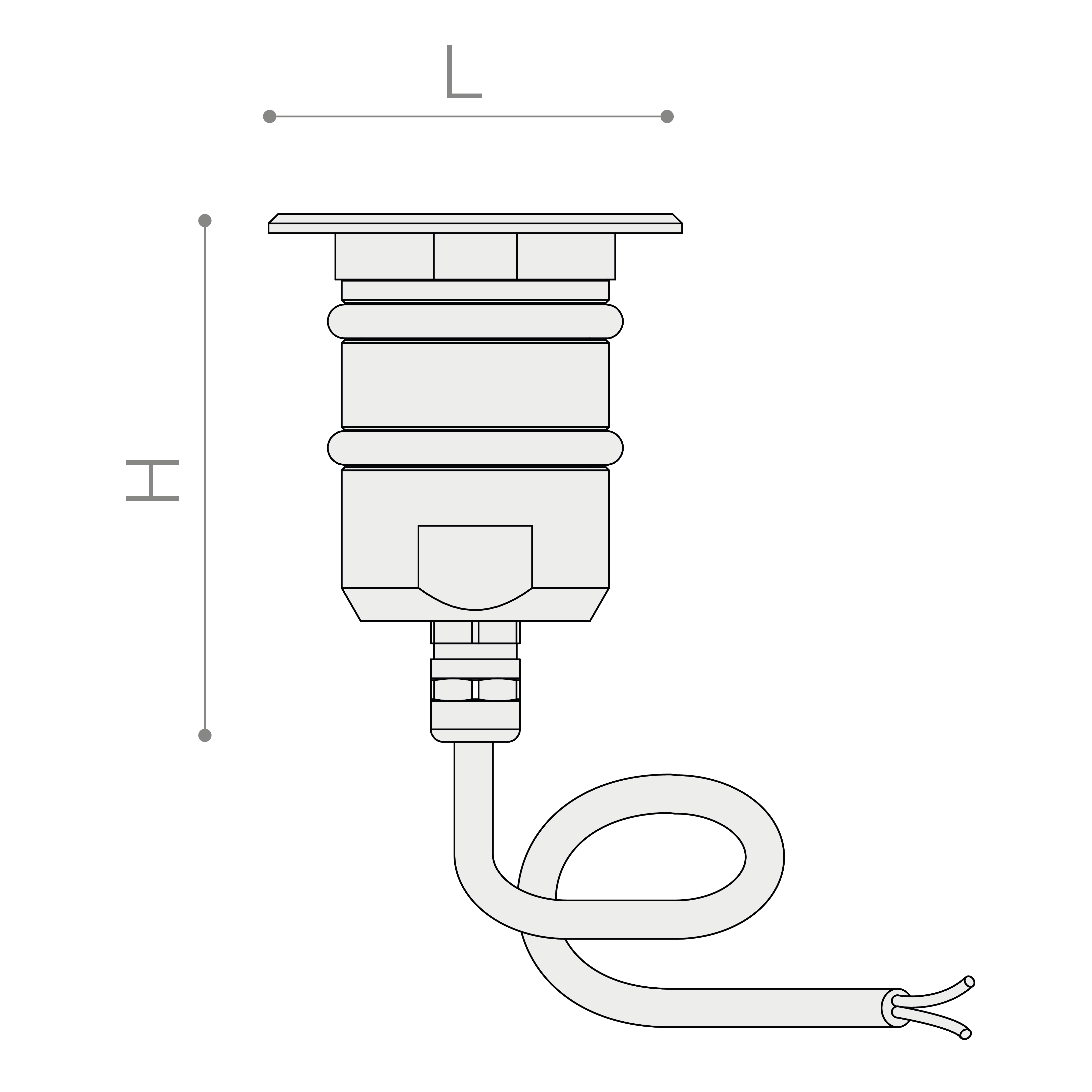

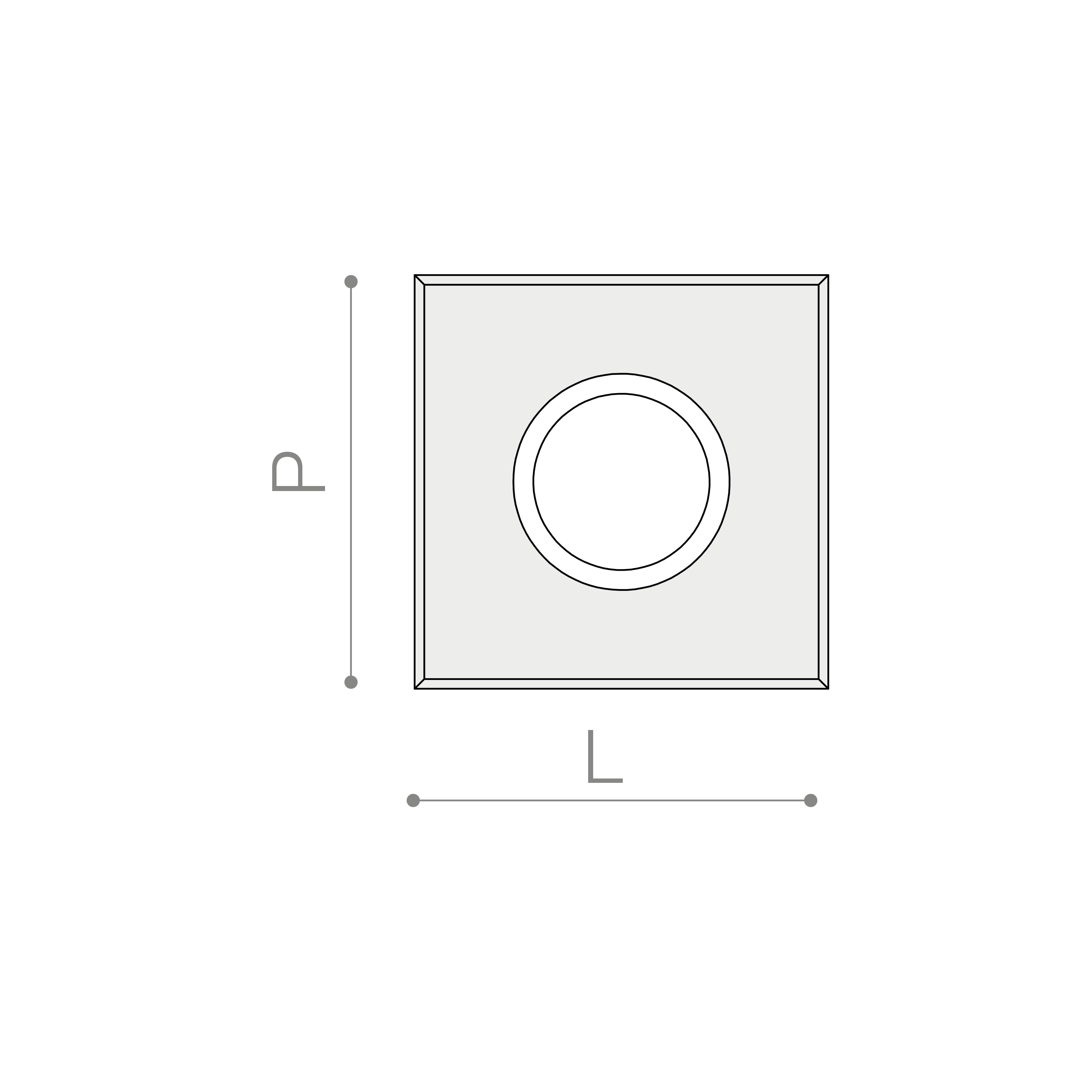

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7070Q539406NL	6	-	4000°K - CRI ≥80	on/off	623	104	65	65	85	-	0.3
7070Q539306NL	6	-	3000°K - CRI ≥80	on/off	577	96	65	65	85	-	0.3
7070Q539706NL	6	-	2700°K - CRI ≥80	on/off	538	90	65	65	85	-	0.3
