DOT | Mod. R56

60° medium wide beam

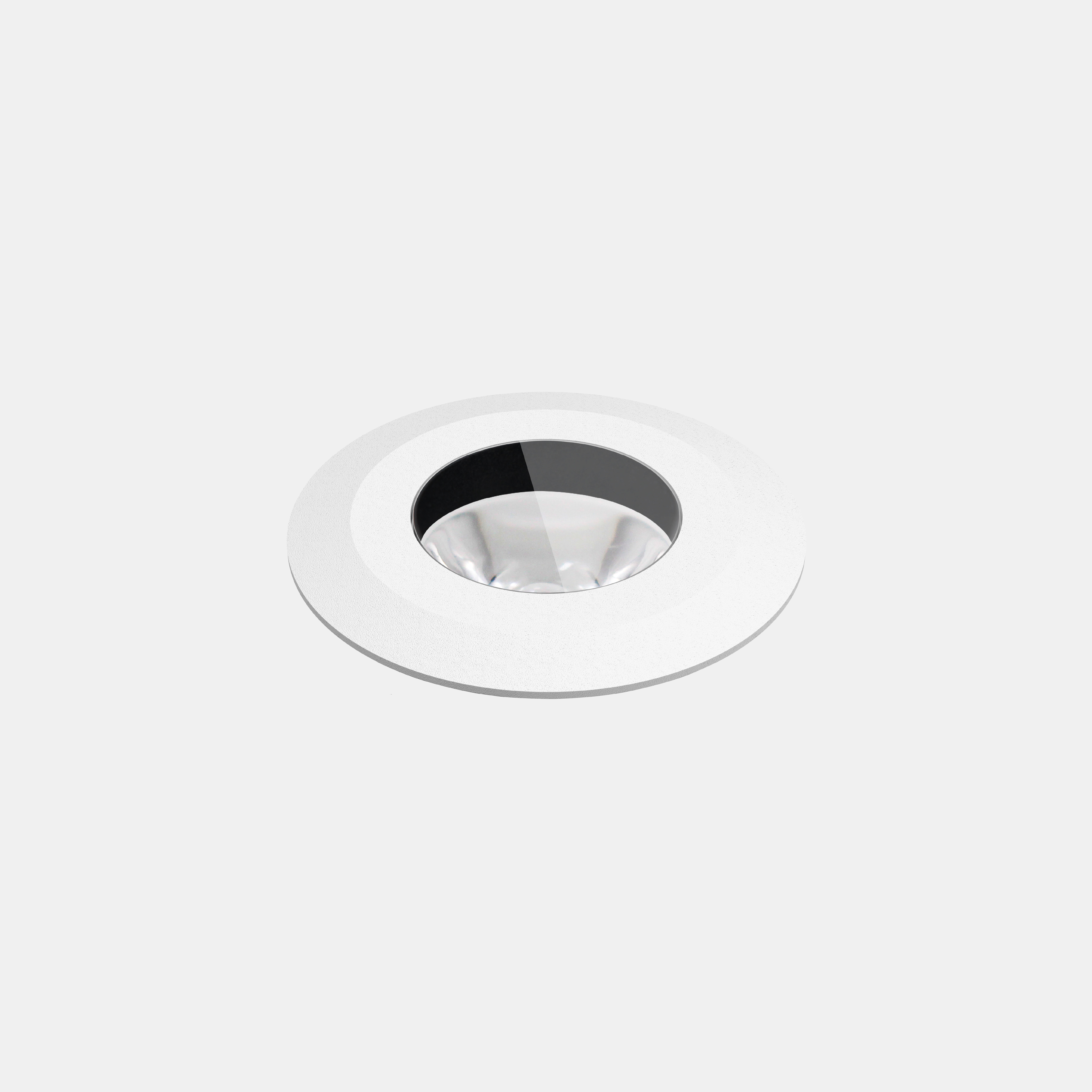

Floor/ground recessed ledad led fixture. Turned oxidazed aluminum body with black anticorrosion treatment. Aluminium frame painted white. Extraclear tempered flat glass diffuser, thickness 4 mm. Optics with high flux efficiency, anti-glare and anti-reflective PMMA lenses: 60° medium wide beam.

Categories: Led, Novelties, DOT, Architectural Outdoor, DOT, DOT

Models: 3

Color: White

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7070	R56	97	= 2700°K (CRI >80)	06	BL	= on/off
		93	= 3000°K (CRI >80)
		94	= 4000°K (CRI >80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7070R569406BL	6	-	4000°K - CRI ≥80	on/off	534	89	65	-	85	-	0.3
7070R569306BL	6	-	3000°K - CRI ≥80	on/off	495	83	65	-	85	-	0.3
7070R569706BL	6	-	2700°K - CRI ≥80	on/off	461	77	65	-	85	-	0.3
