GLIM | Mod. Q54

360° diffusing optics

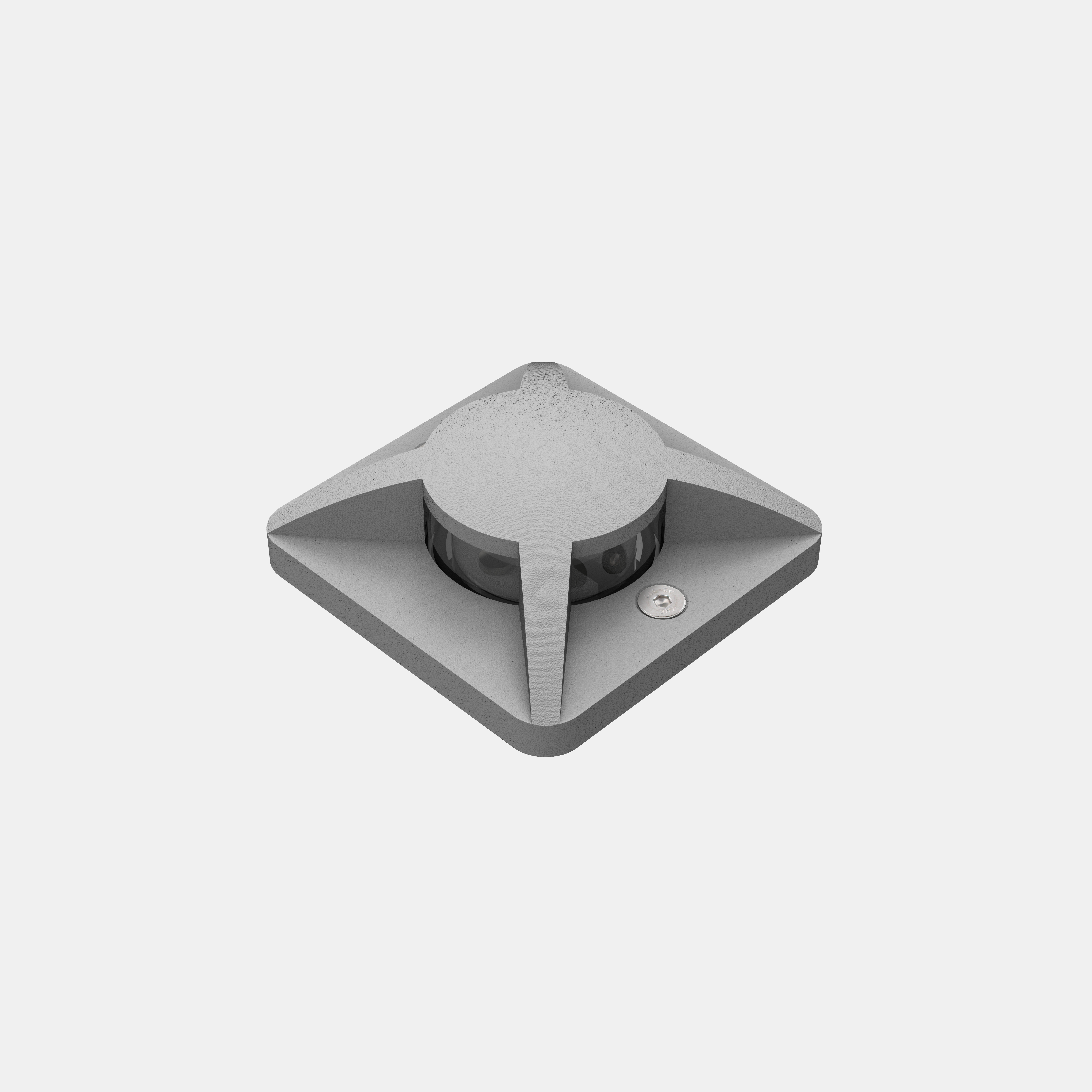

Walkable LED recessed luminaire for floor, ground or wall, suitable for accent or signal lighting. Turned oxidazed aluminum body with black anti-corrosion treatment. Aluminium frame painted grey. Optic with PMMA lens with high luminous flux. Turned extraclear tempered glass diffuser, thickness 3 mm. Square version with four light apertures with 360° light distribution.

Categories: Led, Novelties, GLIM, Architectural Outdoor, GLIM, GLIM

Models: 3

Color: Grey

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7071	Q54	97	= 2700°K (CRI >80)	02	GL	= on/off
		93	= 3000°K (CRI >80)
		94	= 4000°K (CRI >80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7071Q549402GL	2	-	4000°K - CRI ≥80	on/off	88	44	50	50	46	-	0.1
7071Q549302GL	2	-	3000°K - CRI ≥80	on/off	82	41	50	50	46	-	0.1
7071Q549702GL	2	-	2700°K - CRI ≥80	on/off	76	38	50	50	46	-	0.1
