GLIM | Mod. R51

90° diffusing optics

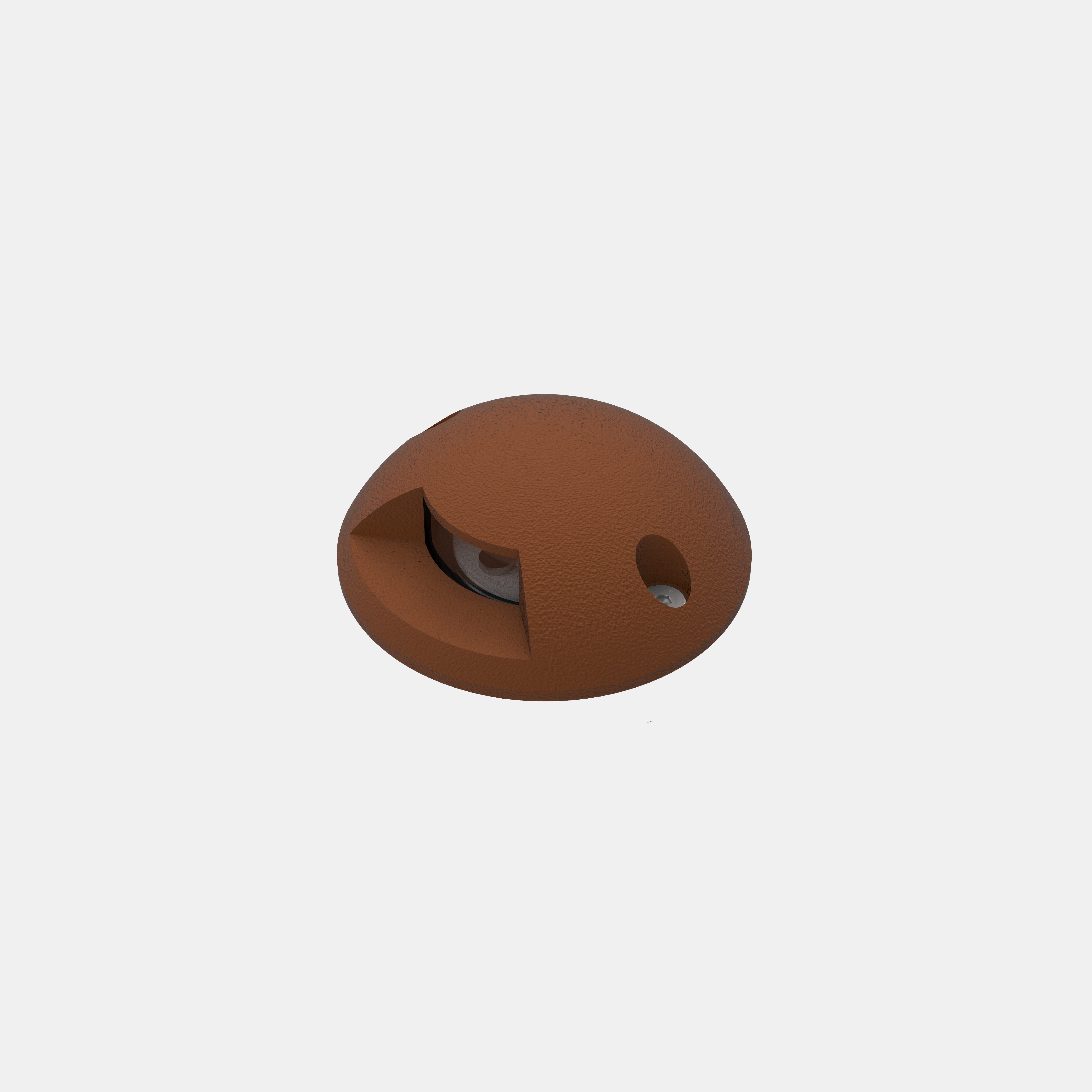

Walkable LED recessed luminaire for floor, ground or wall, suitable for accent or signal lighting. Turned oxidazed aluminum body with black anti-corrosion treatment. Aluminium frame painted corten. Optic with PMMA lens with high luminous flux. Turned extraclear tempered glass diffuser, thickness 3 mm. Round version with single light window with 90° distribution.

Categories: Led, Novelties, GLIM, Architectural Outdoor, GLIM, GLIM

Models: 3

Color: Corten

Catalogue abstract

Installation instructions

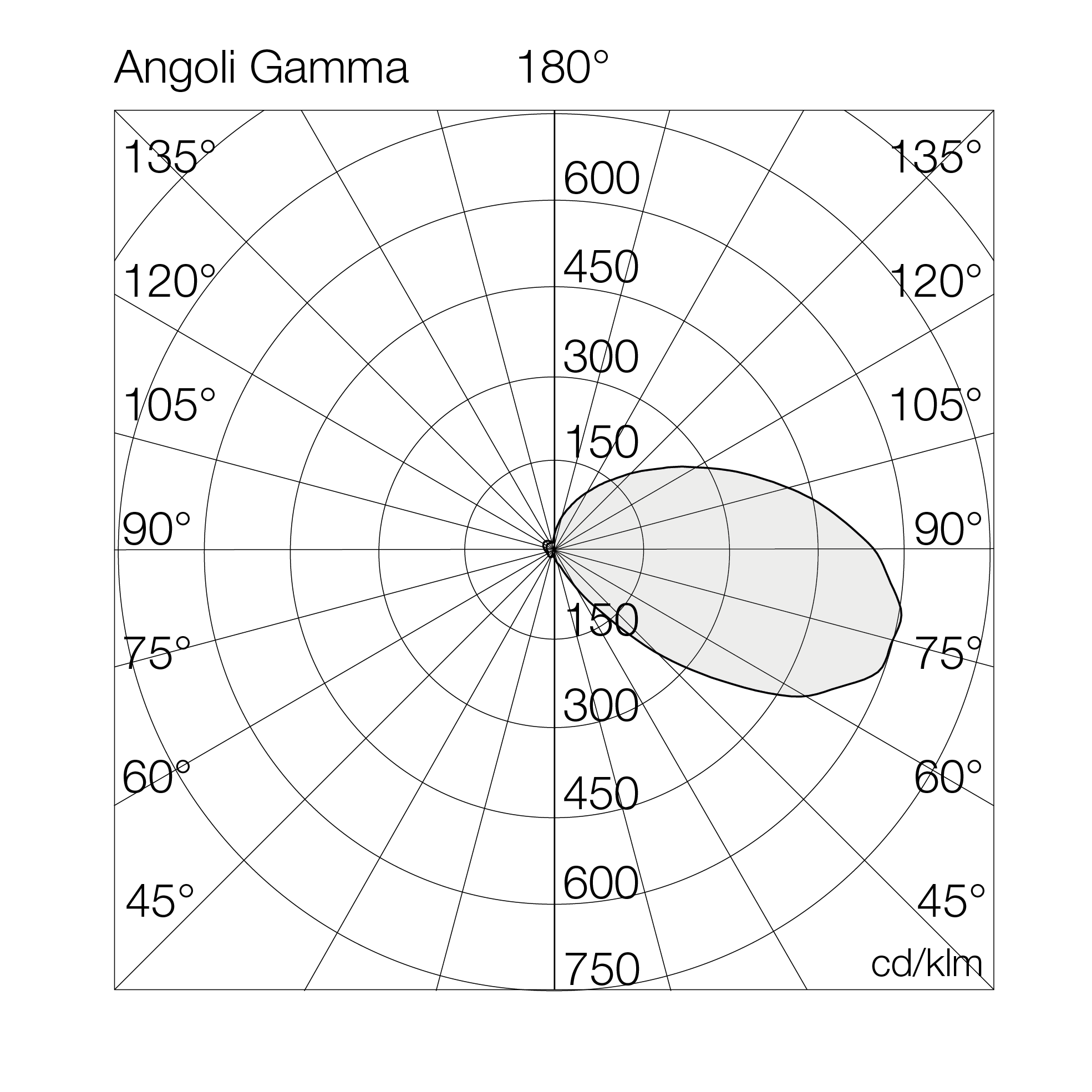

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7071	R51	97	= 2700°K (CRI >80)	02	CL	= on/off
		93	= 3000°K (CRI >80)
		94	= 4000°K (CRI >80)

Models

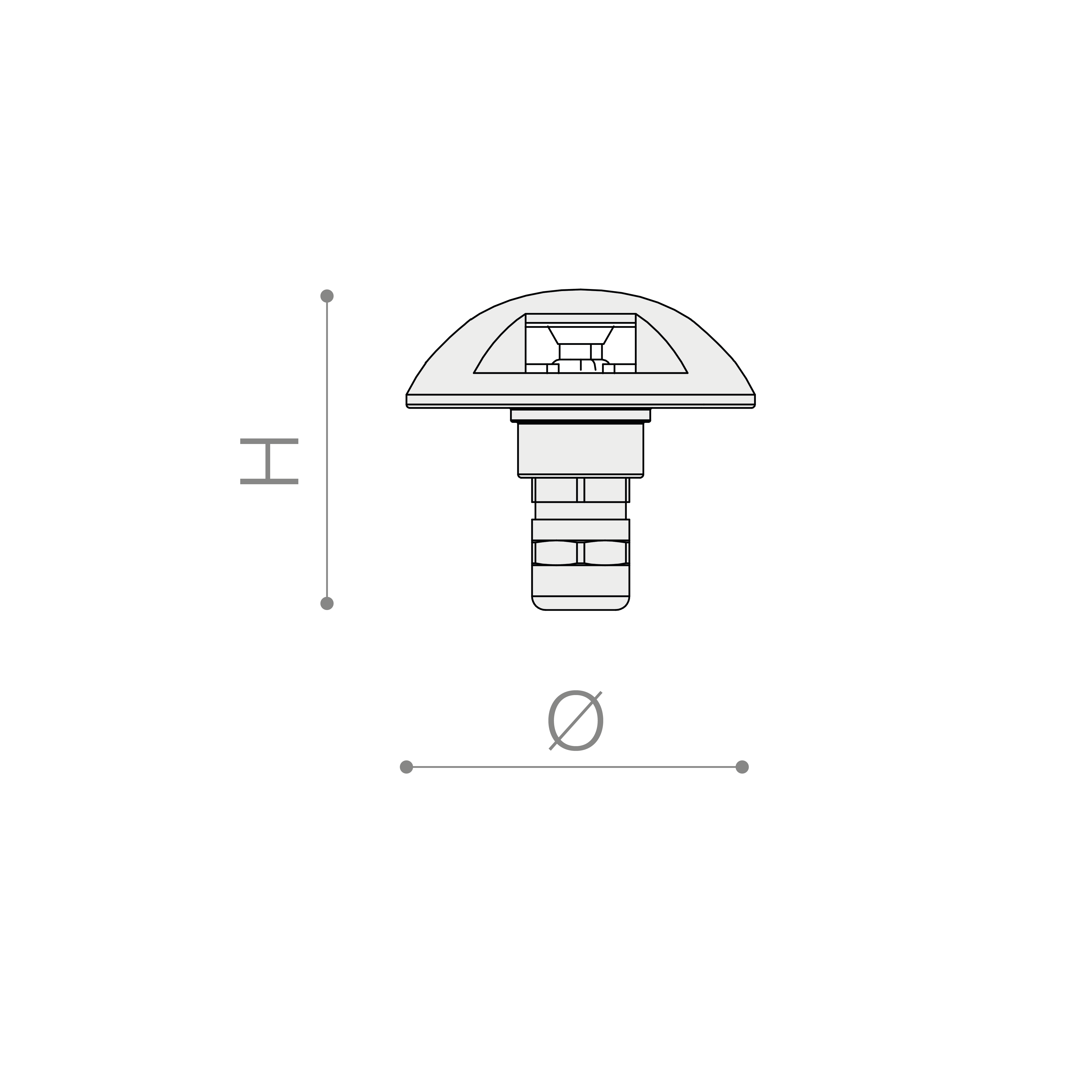

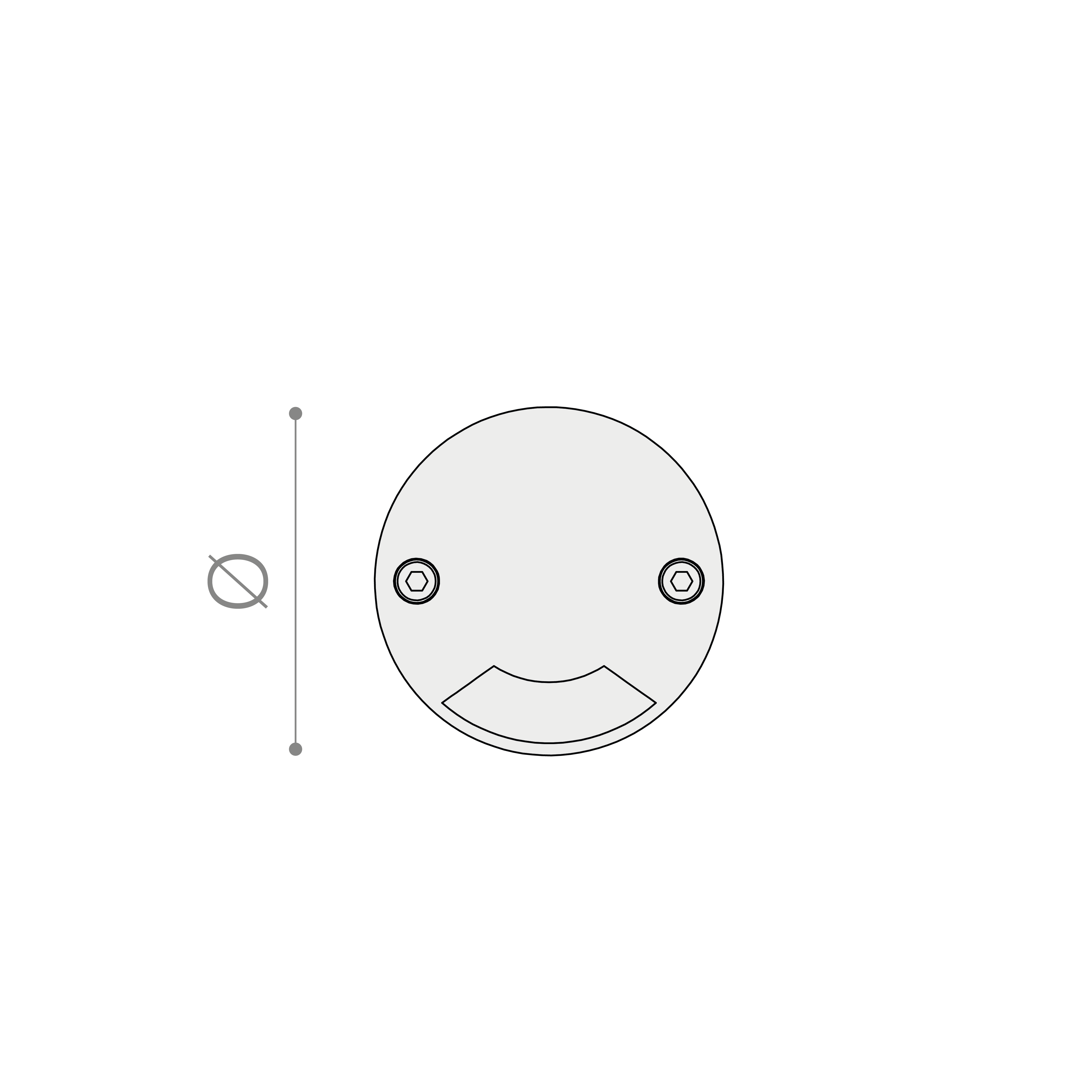

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7071Q519402CL	2	-	4000°K - CRI ≥80	on/off	28	14	50	50	46	-	0.1
7071Q519302CL	2	-	3000°K - CRI ≥80	on/off	26	13	50	50	46	-	0.1
7071Q519702CL	2	-	2700°K - CRI ≥80	on/off	24	12	50	50	46	-	0.1
