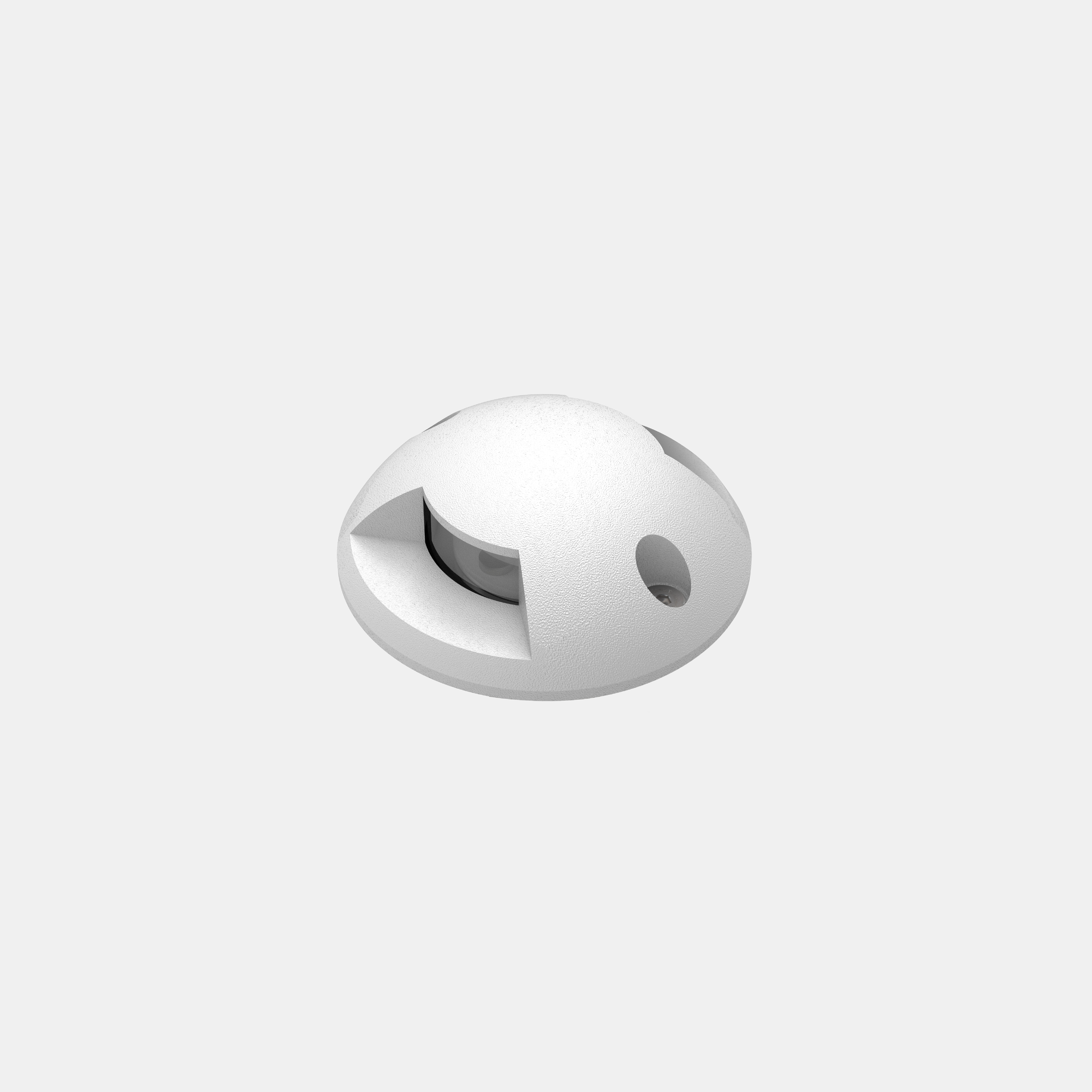

GLIM | Mod. R52

180° diffusing optics

Walkable LED recessed luminaire for floor, ground or wall, suitable for accent or signal lighting. Turned oxidazed aluminum body with black anti-corrosion treatment. Aluminium frame painted white. Optic with PMMA lens with high luminous flux. Turned extraclear tempered glass diffuser, thickness 3 mm. Round version with double window of opposing light with 180° distribution.

Categories: Led, Novelties, GLIM, Architectural Outdoor, GLIM, GLIM

Models: 3

Color: White

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7071	R52	97	= 2700°K (CRI >80)	02	BL	= on/off
		93	= 3000°K (CRI >80)
		94	= 4000°K (CRI >80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7071R529402BL	2	-	4000°K - CRI ≥80	on/off	48	24	50	-	46	-	0.1
7071R529302BL	2	-	3000°K - CRI ≥80	on/off	45	23	50	-	46	-	0.1
7071R529702BL	2	-	2700°K - CRI ≥80	on/off	41	21	50	-	46	-	0.1
