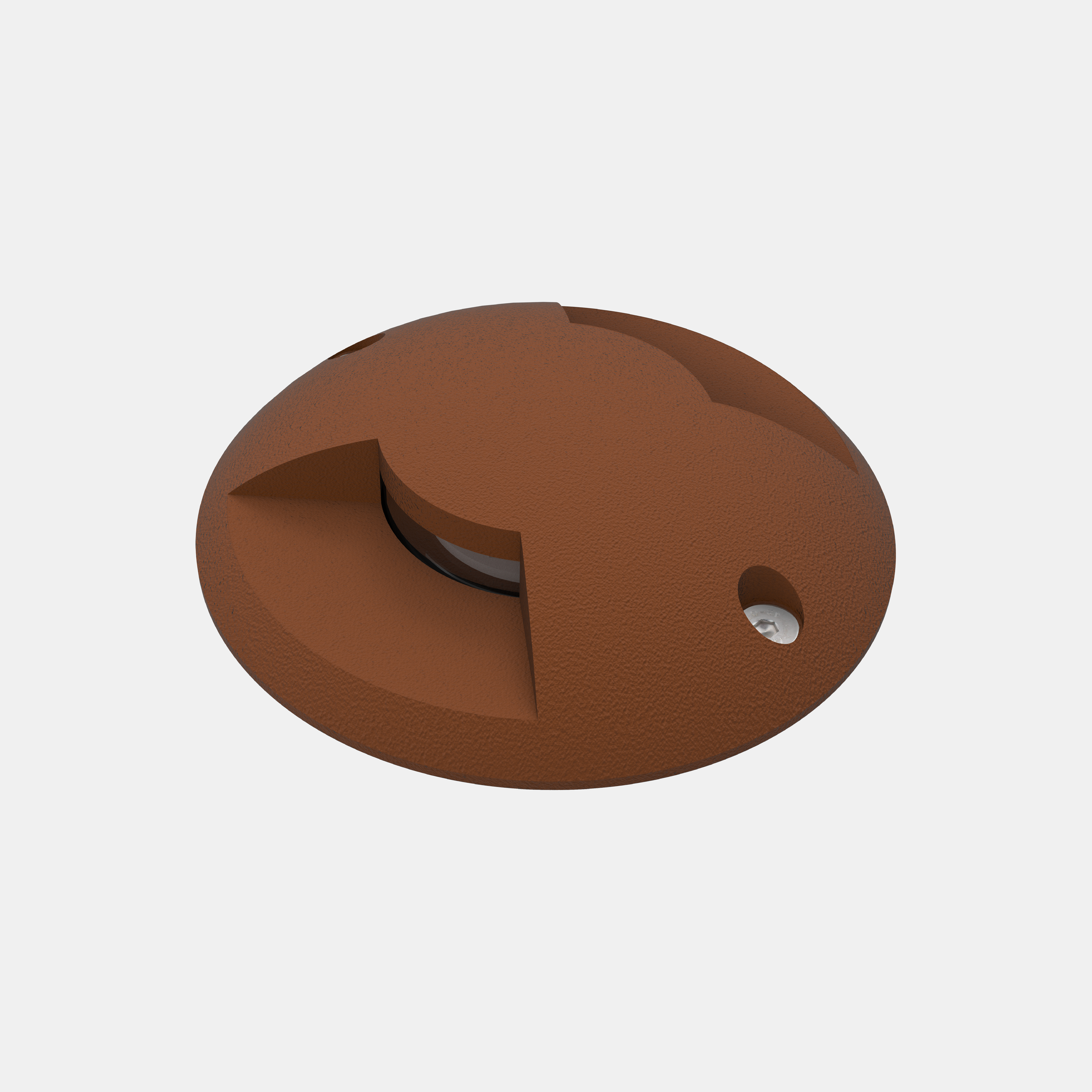

GLIM | Mod. R92

180° diffusing optics

Walkable LED recessed luminaire for floor, ground or wall, suitable for accent or signal lighting. Turned oxidazed aluminum body with black anti-corrosion treatment. Aluminium frame painted corten. Optic with PMMA lens with high luminous flux. Turned extraclear tempered glass diffuser, thickness 3 mm. Round version with double window of opposing light with 180° distribution.

Categories: Led, Novelties, GLIM, Architectural Outdoor, GLIM, GLIM

Models: 3

Color: Corten

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7071	R92	97	= 2700°K (CRI >80)	05	CL	= on/off
		93	= 3000°K (CRI >80)
		94	= 4000°K (CRI >80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7071R929405CL	5	-	4000°K - CRI ≥80	on/off	108	22	100	-	52	-	0.25
7071R929305CL	5	-	3000°K - CRI ≥80	on/off	101	20	100	-	52	-	0.25
7071R929705CL	5	-	2700°K - CRI ≥80	on/off	93	19	100	-	52	-	0.25
