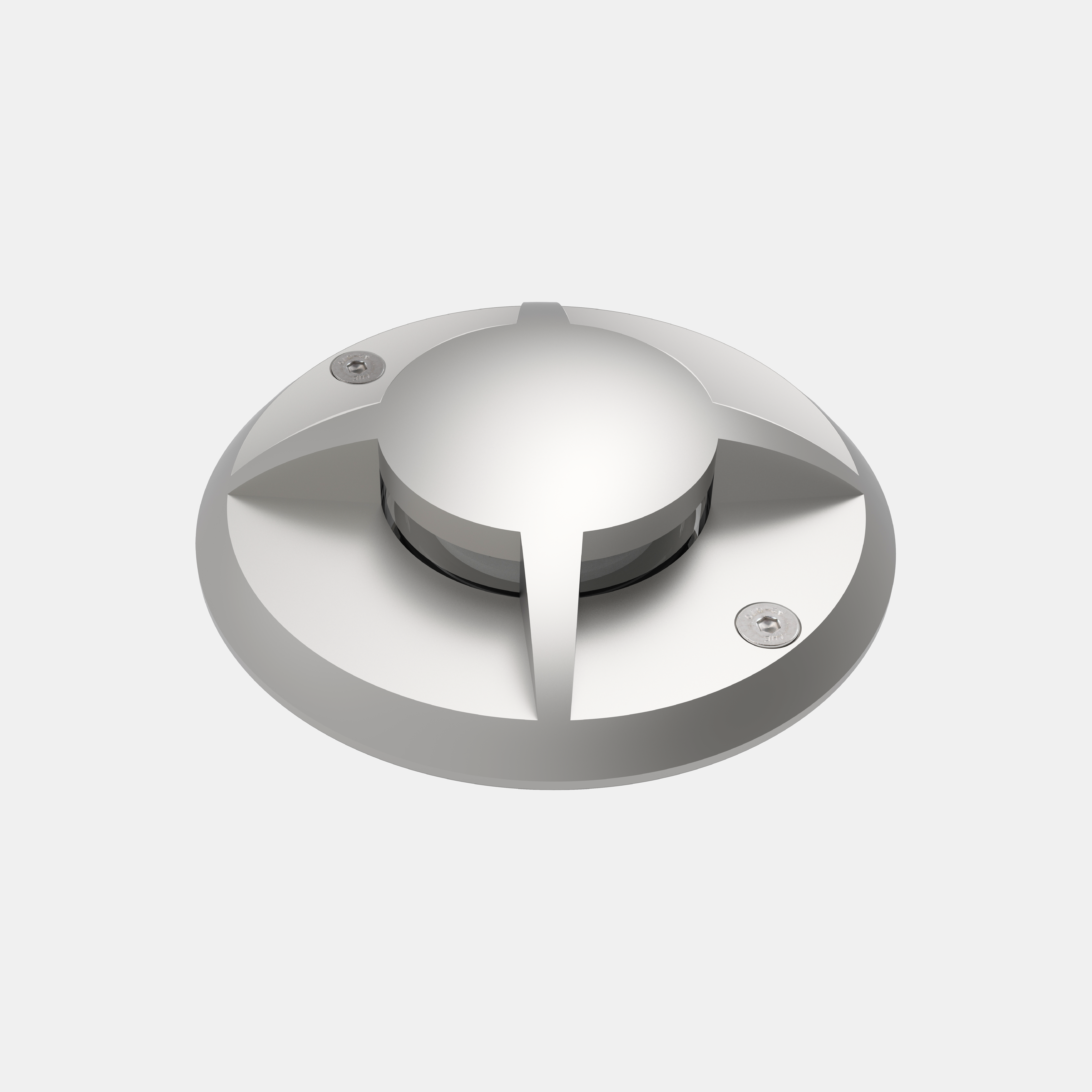

GLIM | Mod. R94

360° diffusing optics

Walkable LED recessed luminaire for floor, ground or wall, suitable for accent or signal lighting. Turned oxidazed aluminum body with black anti-corrosion treatment. Stainless steel AISI 316 frame. Optic with PMMA lens with high luminous flux. Turned extraclear tempered glass diffuser, thickness 3 mm. Round version with four light apertures with 360° light distribution.

Categories: Led, Novelties, GLIM, Architectural Outdoor, GLIM, GLIM

Models: 3

Color: Stainless steel AISI 316

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7071	R94	97	= 2700°K (CRI >80)	05	AX	= on/off
		93	= 3000°K (CRI >80)
		94	= 4000°K (CRI >80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7071R949405AX	5	-	4000°K - CRI ≥80	on/off	208	42	100	-	52	-	0.25
7071R949305AX	5	-	3000°K - CRI ≥80	on/off	194	39	100	-	52	-	0.25
7071R949705AX	5	-	2700°K - CRI ≥80	on/off	180	36	100	-	52	-	0.25

GLIM | Mod. R94

360° diffusing optics

Legenda

Models

Accessories
